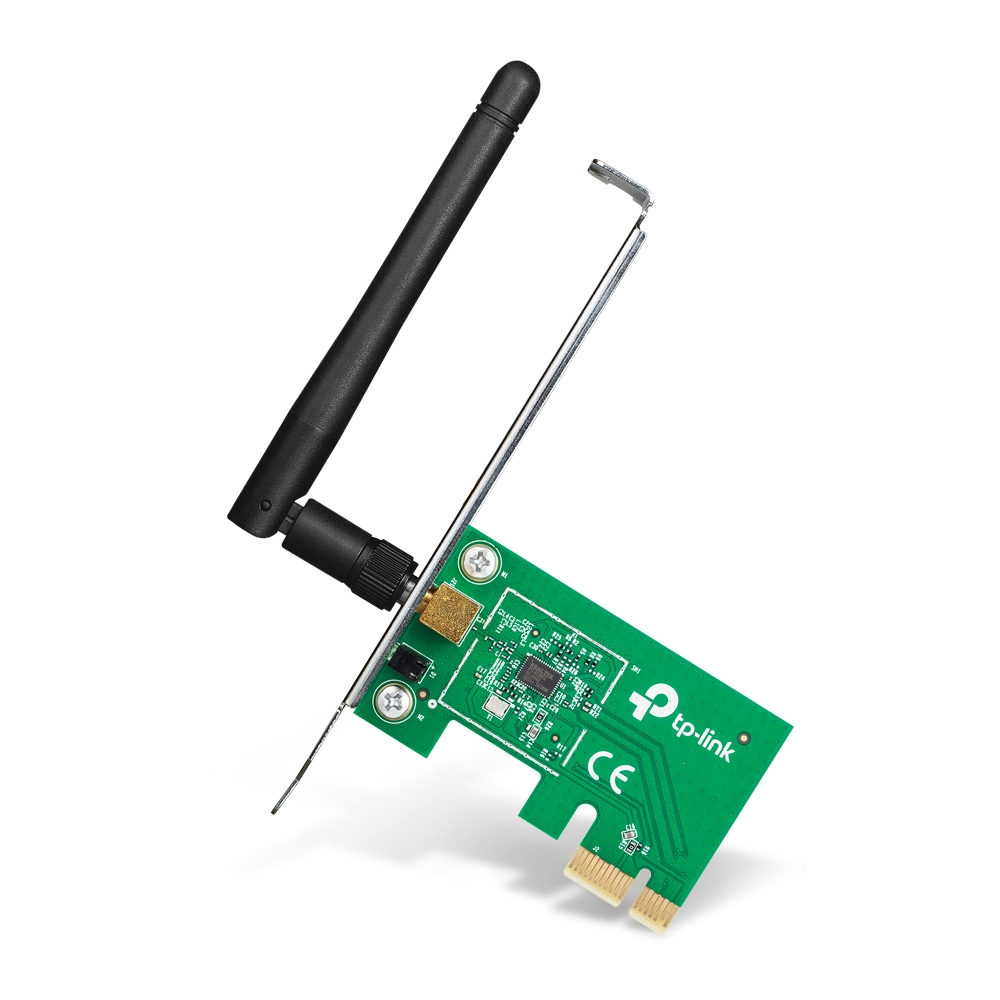

TL-WN781ND(EU) network card Internal WLAN 150 Mbit/s
Model TL-WN781ND(EU)
37 specifications
- Speed150 Mbit/s
- ConnectivityWireless
- ColourGreen
- InternalYes
- Operating temperature (T-T)0 - 40 °C
- Width120.8 mm
Overview
- Speed
- 150 Mbit/s
- Connectivity
- Wireless
- Colour
- Green
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 120.8 mm
- Brand
- TP-Link
- Category
- Network Card
- Model
- TL-WN781ND(EU)
- Part number
- TL-WN781ND(EU)
- Also known as
- TP-Link TL-WN781ND(EU) network card Internal WLAN 150 Mbit/s
Specifications
37 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 150 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Frequency range | 2.4 - 2.4835 GHz |
| Wi-Fi standards | 802.11b, 802.11g |
| WLAN data transfer rates supported | 11,54,150 Mbit/s |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Antenna | Yes |
| Antenna design | External |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 2 dBi |
| Operating modes | Infrastructure mode |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120.8 mm |
| Depth | 78.5 mm |
| Height | 21.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 150 mm |
| Package height | 39 mm |
| Package weight | 150 g |
Packaging content
| Specification | Value |
|---|---|
| Resource CD | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
