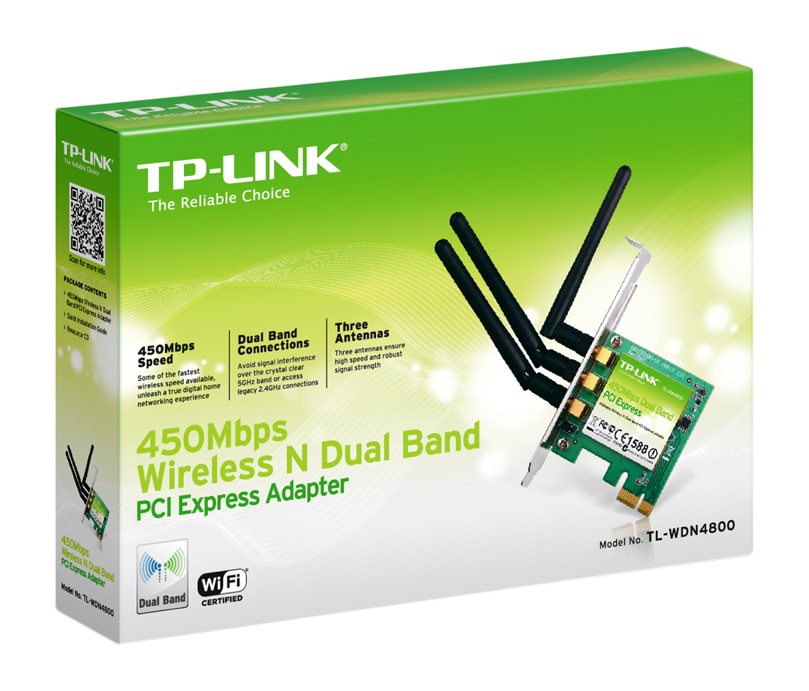

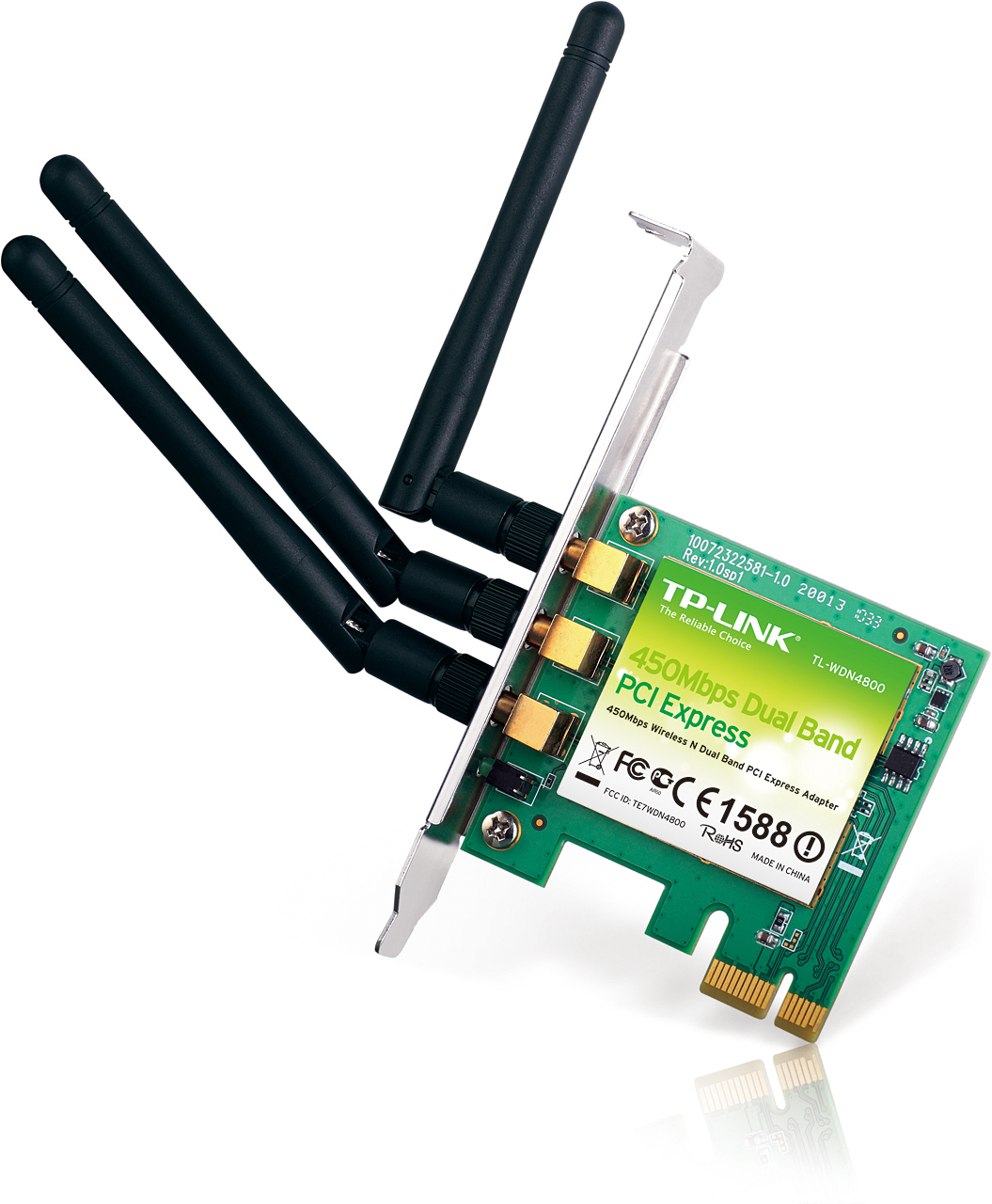

TP-Link TL-WDN4800 network card Internal WLAN 450 Mbit/s

TP-Link TL-WDN4800 network card Internal WLAN 450 Mbit/s

Model TL-WDN4800EAN 8459730506030

38 specifications
  • Speed450 Mbit/s
  • ConnectivityWireless
  • ColourBlack, Silver
  • InternalYes
  • USB poweredNo
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Speed
450 Mbit/s
Connectivity
Wireless
Colour
Black, Silver
Internal
Yes
USB powered
No
Operating temperature (T-T)
0 - 40 °C
Brand
TP-Link
Category
Network Card
Model
TL-WDN4800
Part number
TL-WDN4800
EAN / UPC
8459730506030, 021111538626, 552282476948, 778890699092 +8 more
Also known as
TP-Link TL-WDN4800 network card Internal WLAN 450 Mbit/s

Specifications

38 specifications in 8 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI Express
InterfaceWLAN
Ethernet LAN (RJ-45) ports0
Parallel ports quantity0
Compatible memory cardsNot supported

Network

Maximum data transfer rate450 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LANNo
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.4 - 2.4835 GHz
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11a, 802.11b, 802.11g
WLAN data transfer rates supported1,2,6,9,11,12,18,24,36,48,54,450 Mbit/s
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Security algorithms128-bit WEP, 64-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK

Design

InternalYes
Product colourBlack, Silver
Antenna typeOmni Directional
Antenna connector typeRP-SMA
Plug and PlayYes
CertificationCE, FCC, Wi-Fi

Power

USB poweredNo

System requirements

Internet connection requiredYes
Optical drive requiredYes
Windows operating systems supportedWindows 7 Home Premium, Windows 7 Home Premium x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows XP Home, Windows XP Home x64

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Technical details

Compliance certificatesRoHS

Other features

Gain2 dBi
Quick start guideYes
Connector(s)3x RP-SMA
Ports quantity3
Supported data transfer rates11, 54, 450Mbit/s
Wireless connectionYes
