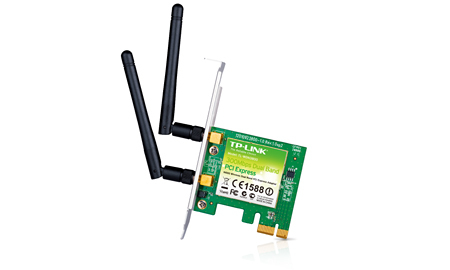

TP-Link TL-WDN3800 network card Internal WLAN 300 Mbit/s

TP-Link TL-WDN3800 network card Internal WLAN 300 Mbit/s

Model TL-WDN3800EAN 8459730507716

30 specifications
  • Speed300 Mbit/s
  • ConnectivityWireless
  • ColourGreen
  • InternalYes
  • Operating temperature (T-T)0 - 40 °C
  • Compliance certificatesRoHS
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Wireless
Colour
Green
Internal
Yes
Operating temperature (T-T)
0 - 40 °C
Compliance certificates
RoHS
Brand
TP-Link
Category
Network Card
Model
TL-WDN3800
Part number
TL-WDN3800
EAN / UPC
8459730507716, 014444845615, 163120653867, 163120657988 +6 more
Also known as
TP-Link TL-WDN3800 network card Internal WLAN 300 Mbit/s

Specifications

30 specifications in 7 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI Express
InterfaceWLAN

Network

Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LANNo
Wi-FiYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Frequency range2.4 - 5.825 GHz
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11a, 802.11b, 802.11g
WLAN data transfer rates supported11,54,300 Mbit/s
Modulation16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms128-bit WEP, 64-bit WEP, 802.1x RADIUS, WEP, WPA-PSK, WPA2-PSK

Design

InternalYes
Product colourGreen
AntennaYes
Antenna connector typeRP-SMA
Receiver sensitivity270M_2.4GHz: -70dBm@10% PER 195M_2.4GHz: -71dBm@10% PER 130M_2.4GHz: -74dBm@10% PER 54M_2.4GHz: -79dBm@10% PER 11M_2.4GHz: -87dBm@8% PER 6M_2.4GHz: -94dBm@10% PER 1M_2.4GHz: -99dBm@8% PER 270M_5GHz: -67dBm@10% PER 195M_5GHz: -70dBm@10% PER 130M_5GHz: -73dBm@10% PER 54M_5GHz: -79dBm@10% PER 6M_5GHz:
CertificationCE, FCC

System requirements

Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Technical details

Compliance certificatesRoHS

Other features

Gain2 dBi
Detachable antenna(s)Yes
Quick start guideYes
Supported data transfer rates300, 54, 11Mbps
