AX300 WLAN 287 Mbit/s
Model AX300Part no. ARCHER TX1U NANOEAN 810142824828
33 specifications
- Speed287 Mbit/s
- ConnectivityWireless
- ColourBlack
- InternalNo
- USB poweredYes
- Compatible operating systemsLinux (Kernel 3.10 and later)
Overview
- Speed
- 287 Mbit/s
- Connectivity
- Wireless
- Colour
- Black
- Internal
- No
- USB powered
- Yes
- Compatible operating systems
- Linux (Kernel 3.10 and later)
- Brand
- TP-Link
- Category
- Network Card
- Model
- AX300
- Part number
- ARCHER TX1U NANO
- EAN / UPC
- 810142824828, 8885020627367
- Also known as
- TP-Link AX300 WLAN 287 Mbit/s
Specifications
33 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB connector form factor | Straight |
| USB version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 287 Mbit/s |
| Networking standards | IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 11,54,150 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM, OFDMA |
| Security algorithms | WEP, WPA-PSK, WPA2-PSK |
| Sensitivity | -95 dBmW |
| Bluetooth | No |
| MU-MIMO | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black |
| Antenna | Yes |
| Antenna design | Internal |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Linux (Kernel 3.10 and later) |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|

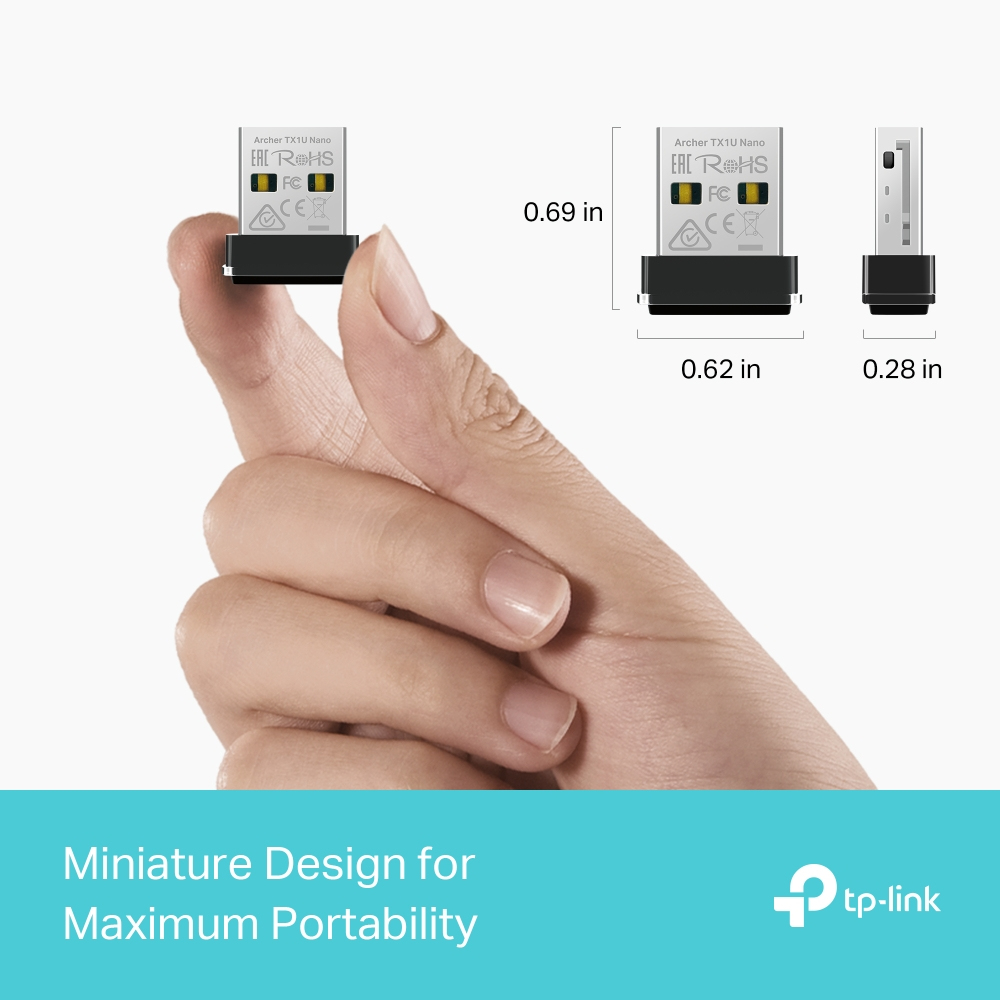

| Width | 15.8 mm |
| Depth | 17.5 mm |
| Height | 7.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), RoHS |
