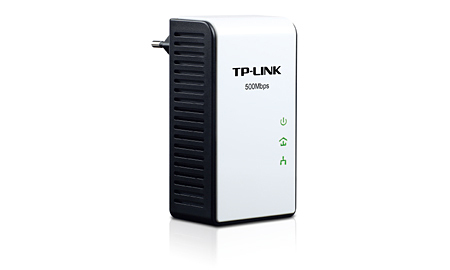

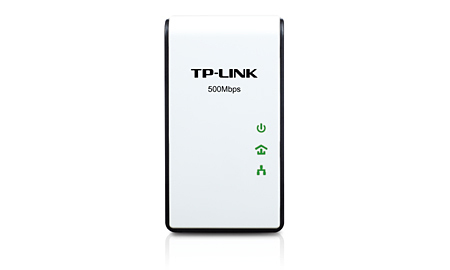

TP-Link AV500 Ethernet 500 Mbit/s

TP-Link AV500 Ethernet 500 Mbit/s

Model AV500Part no. TL-PA551 KIT (UK)EAN 8459730315724

39 specifications
  • Speed500 Mbit/s
  • ConnectivityWired
  • ColourBlack, White
  • InternalNo
  • Power consumption (typical)6 W
  • Windows operating systems supportedYes
See all specifications

Overview

Speed
500 Mbit/s
Connectivity
Wired
Colour
Black, White
Internal
No
Power consumption (typical)
6 W
Windows operating systems supported
Yes
Brand
TP-Link
Category
Network Card
Model
AV500
Part numbers
TL-PA551 KIT (UK), TL-PA511, TL-PA511ST
EAN / UPC
8459730315724, 845973031572, 5055309611421, 6935364031312
Also known as
TP-Link AV500 Ethernet 500 Mbit/s

Specifications

39 specifications in 10 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePowerPlug
InterfaceEthernet
Ethernet LAN (RJ-45) ports1

Network

Maximum data transfer rate500 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LANYes
Cabling technology10/100/1000BaseT(X)
Copper ethernet cabling technology1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Wi-FiNo
Modulation1024-QAM, 16-QAM, 256-QAM, 64-QAM, 8-QAM, BPSK, OFDM, QPSK
Security algorithms128-bit AES
Maximum operating distance300 m

Design

InternalNo
Product colourBlack, White
Plug and PlayYes
LED indicatorsLAN, Power, Yes
CertificationCE, FCC

Power

Power consumption (typical)6 W

System requirements

Compatible operating systemsWindows 2000 Windows XP Windows 2003 Windows Vista Windows 7 Mac Linux
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width58 mm
Depth40 mm
Height105 mm

Packaging content

Cables includedLAN (RJ-45)
ManualYes

Technical details

Compliance certificatesRoHS

Other features

Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Quick start guideYes
Dimensions (WxDxH)58 x 40 x 105 mm
Networking featuresGigabit Ethernet
Power LEDYes
Supported data transfer rates10/100 Mbit/s
