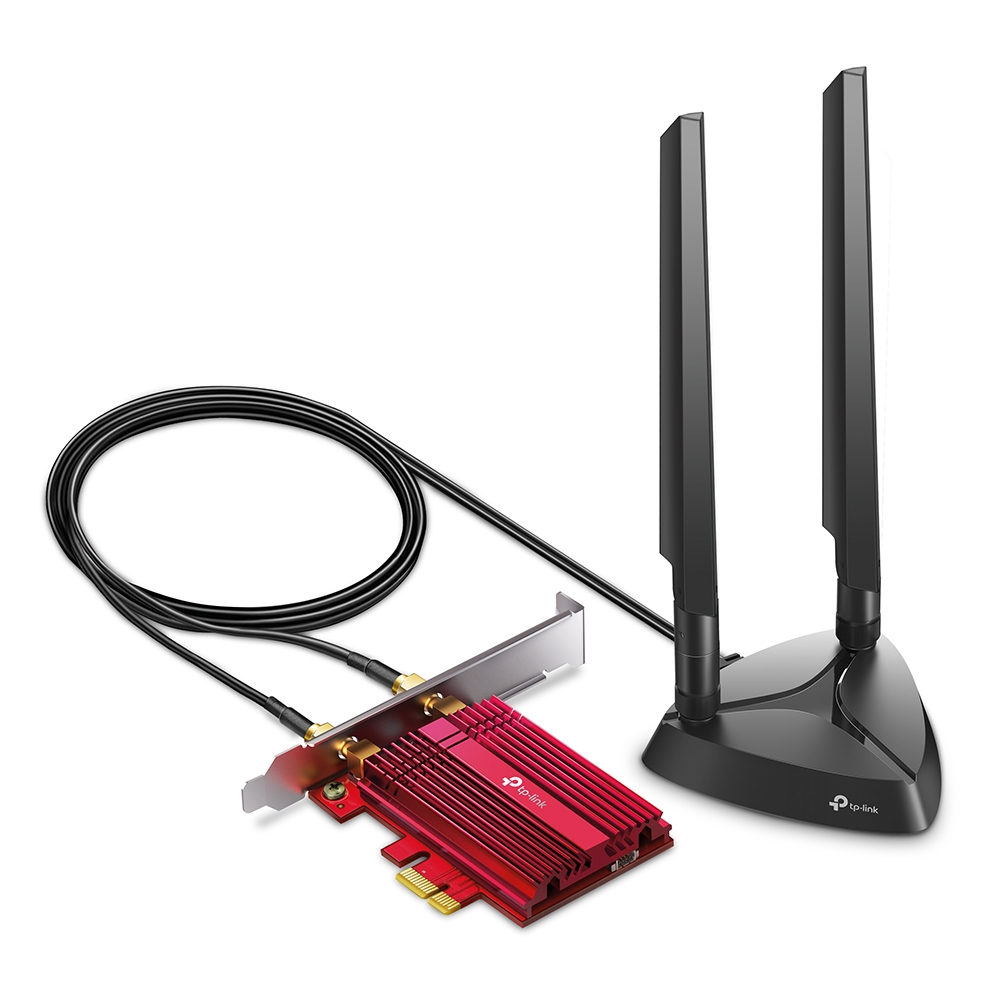

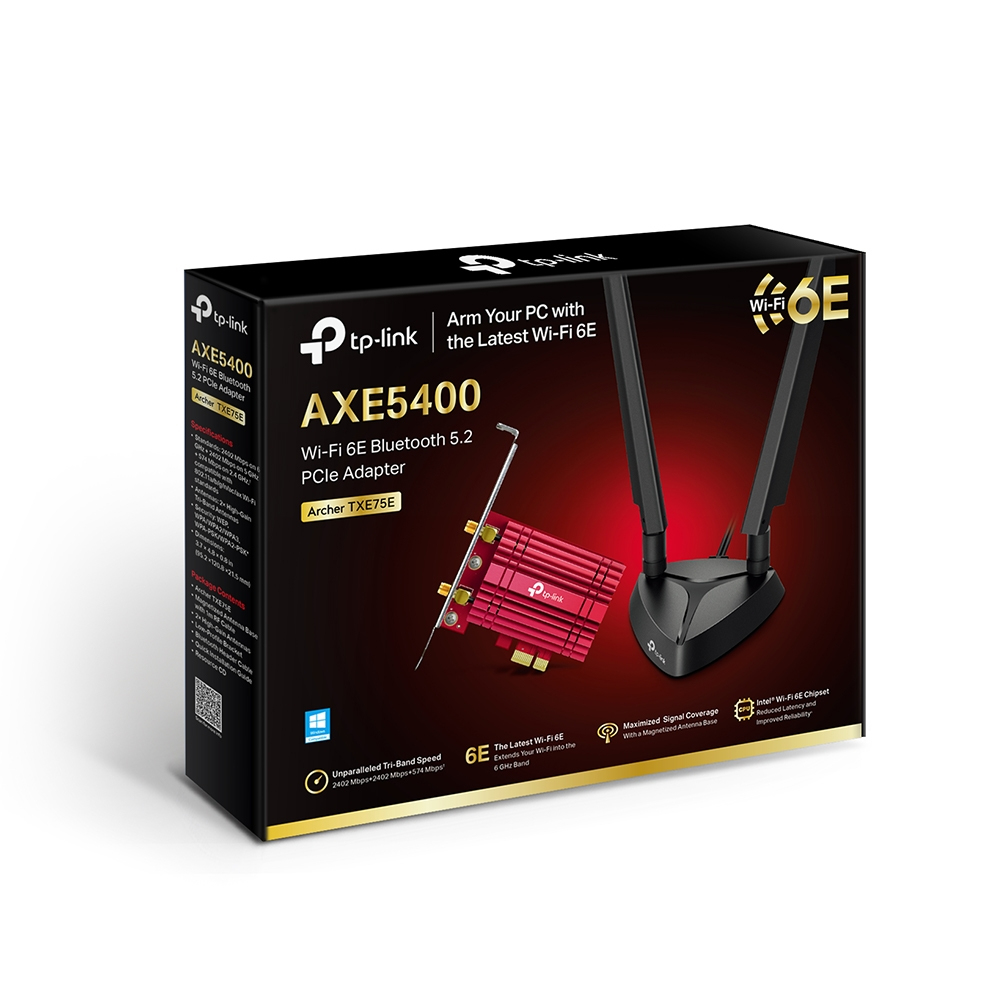

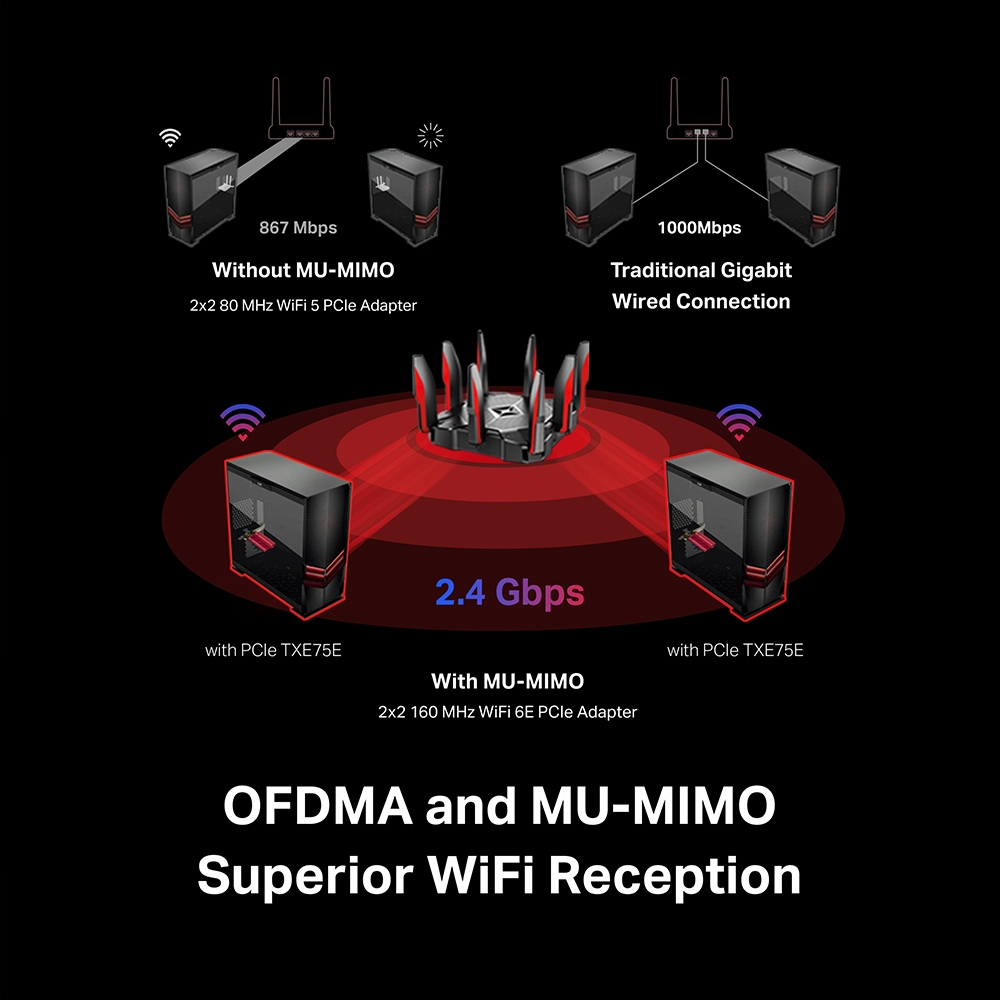

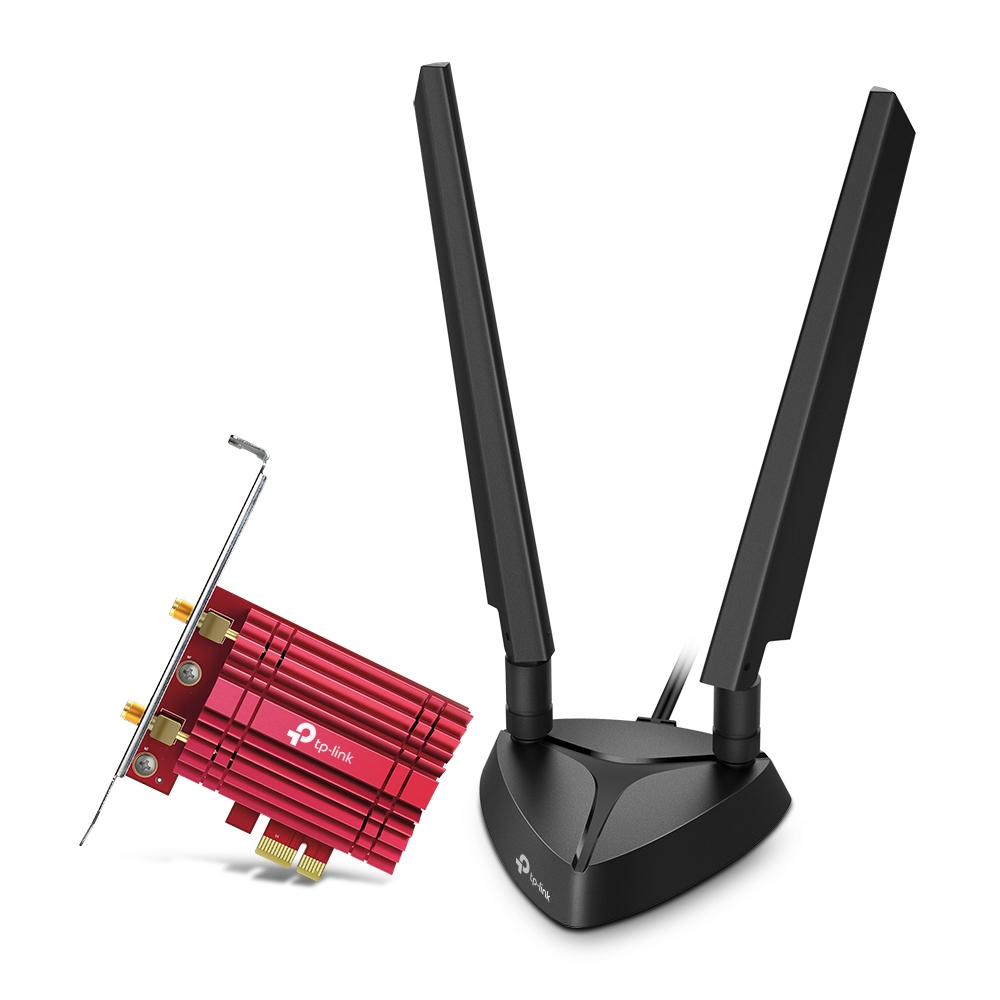

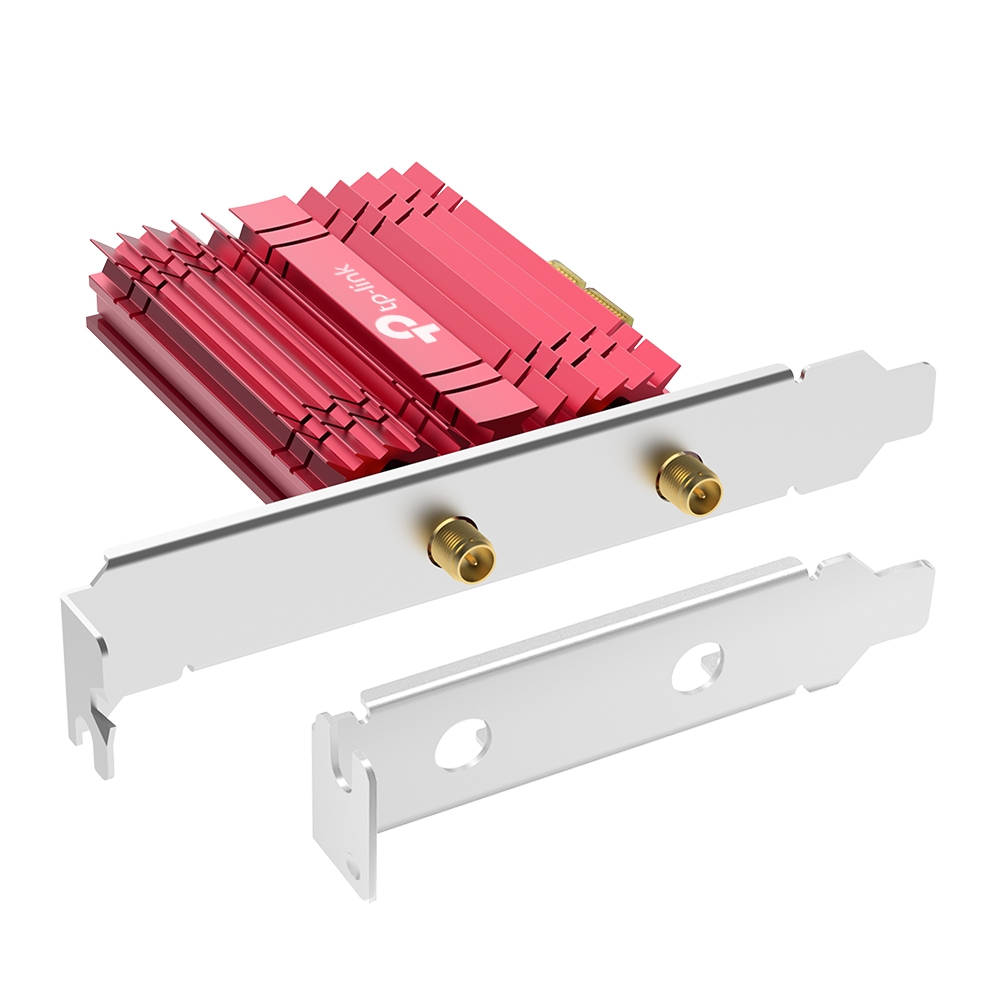

Archer TXE75E
Model Archer TXE75EPart no. ARCHER TXE75EEAN 840030707384
38 specifications
- Speed5400 Mbit/s
- ConnectivityWireless
- ColourBlack, Red
- InternalYes
- Operating temperature (T-T)0 - 40 °C
- Width95.2 mm
Overview
- Speed
- 5400 Mbit/s
- Connectivity
- Wireless
- Colour
- Black, Red
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 95.2 mm
- Brand
- TP-Link
- Category
- Network Card
- Model
- Archer TXE75E
- Part number
- ARCHER TXE75E
- EAN / UPC
- 840030707384, 840030709098, 4897098687246, 4897098687383
- Also known as
- TP-Link AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter
Specifications
38 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 5400 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rates supported | 11,54,300,1732,2402 Mbit/s |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black, Red |
| Antenna | Yes |
| Antenna design | External |
| Transmitting power (FCC) | 5 GHz: 20dBm, 2.4 GHz: 20dBm, 6 GHz: 12dBm |
| Operating modes | Infrastructure mode |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95.2 mm |
| Depth | 120.8 mm |
| Height | 21.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 271.5 mm |
| Package depth | 216.5 mm |
| Package height | 48.5 mm |
| Package weight | 480 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Bluetooth header cable | Yes |
| Resource CD | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
