Archer TX3000E
Model Archer TX3000EPart no. ARCHER TX3000E V1EAN 840030700361
38 specifications
- Speed2402 Mbit/s
- ConnectivityWireless
- ColourBlack, Red
- InternalYes
- Windows operating systems supportedWindows 10 x64
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 2402 Mbit/s
- Connectivity
- Wireless
- Colour
- Black, Red
- Internal
- Yes
- Windows operating systems supported
- Windows 10 x64
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- Network Card
- Model
- Archer TX3000E
- Part numbers
- ARCHER TX3000E V1, ARCHER TX3000E
- EAN / UPC
- 840030700361, 6935364052256, 6935364088897
- Also known as

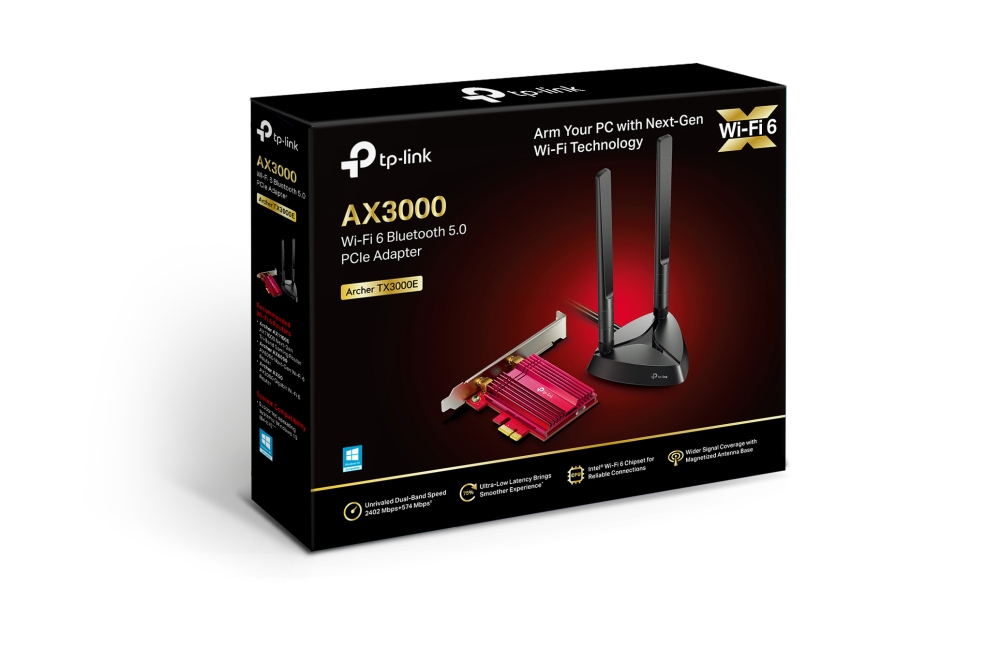

- TP-Link AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| USB ports quantity | 1 |
| USB version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2402 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 54,300,574,1733,2402 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, DBPSK, DQPSK, OFDM |
| Security algorithms | WPA3, 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black, Red |

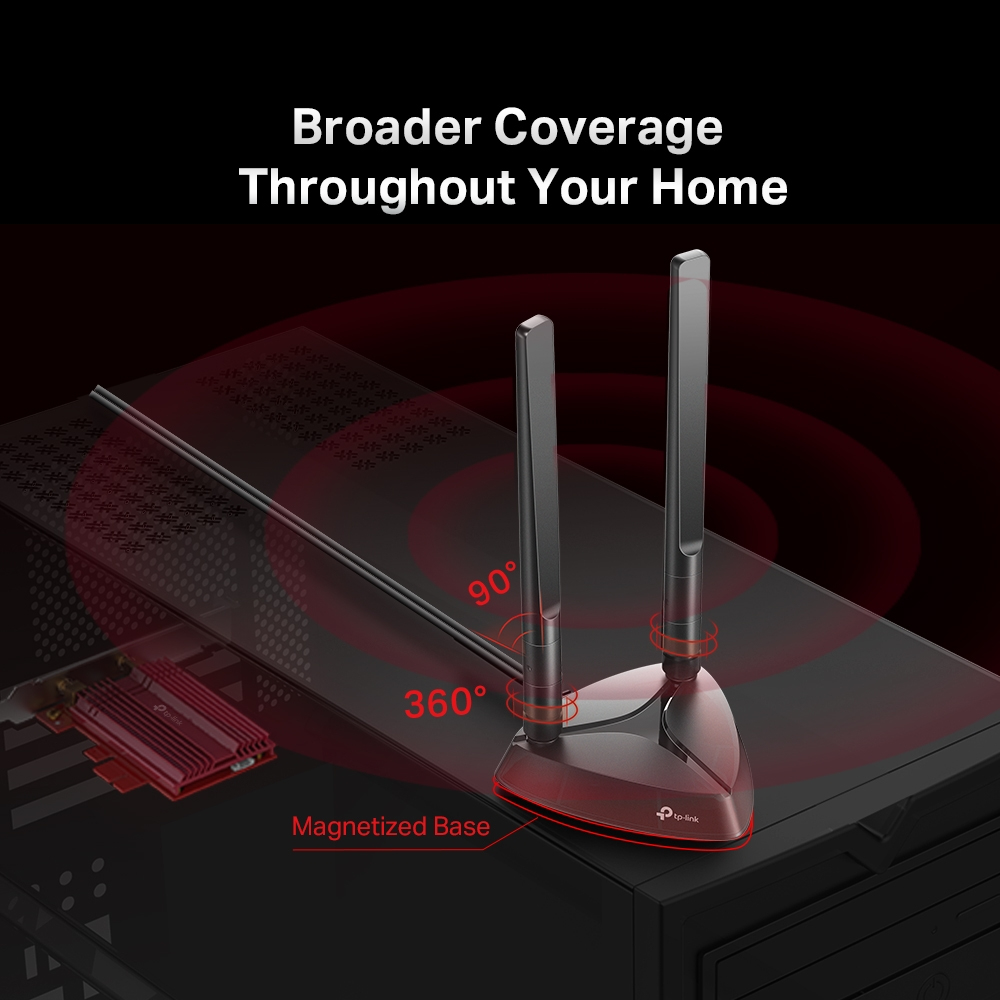

| Antenna | Yes |
| Antenna design | External |
| LED indicators | Yes |
| Compatible products | CE, FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95.2 mm |
| Depth | 120.8 mm |
| Height | 21.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 215 mm |
| Package height | 47 mm |
| Package weight | 480 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
