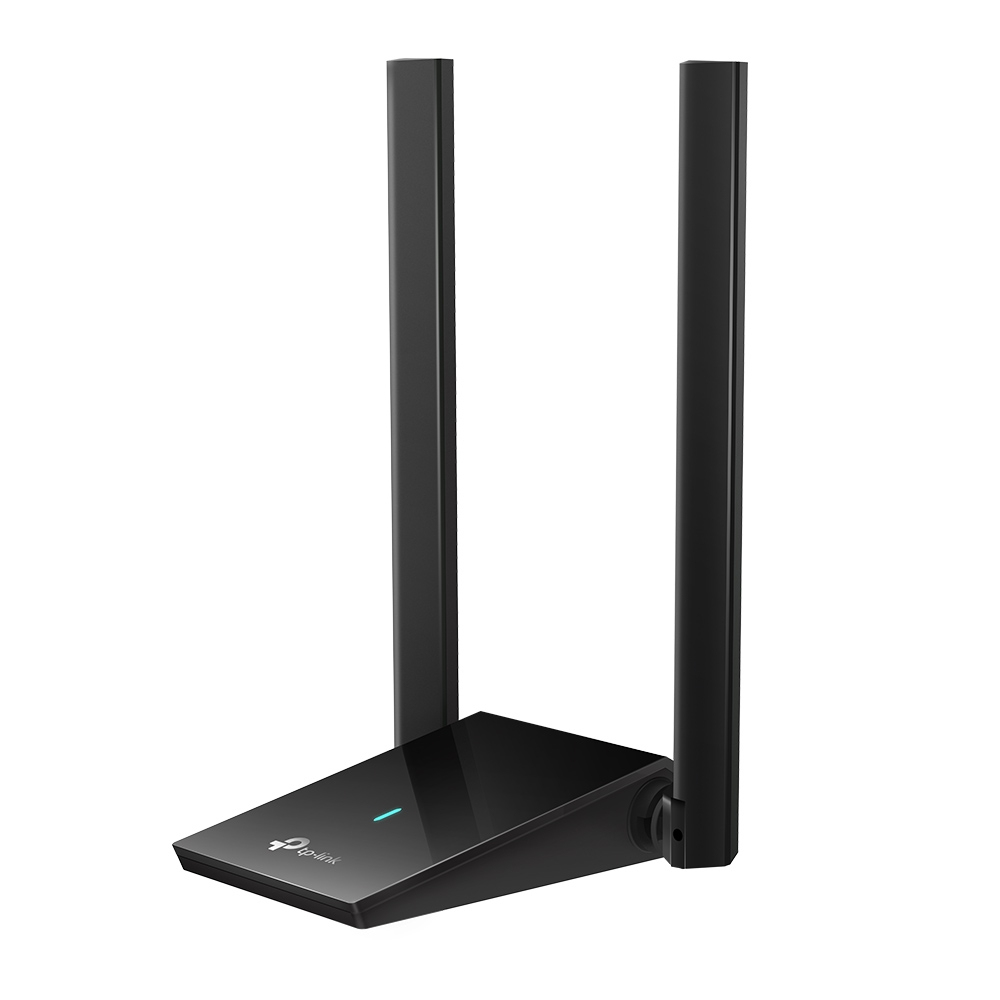

Archer TX20U Plus
Model Archer TX20U PlusPart no. ARCHER TX20U PLUSEAN 840030707889
37 specifications
- Speed1800 Mbit/s
- ConnectivityWireless
- ColourBlack
- InternalNo
- Operating temperature (T-T)0 - 40 °C
- Width84 mm
Overview
- Speed
- 1800 Mbit/s
- Connectivity
- Wireless
- Colour
- Black
- Internal
- No
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 84 mm
- Brand
- TP-Link
- Category
- Network Card
- Model
- Archer TX20U Plus
- Part numbers
- ARCHER TX20U PLUS, TX20U PLUS
- EAN / UPC
- 840030707889, 4897098687888, 4897098689974
- Also known as
- TP-Link AX1800 Dual Antennas High Gain Wireless USB Adapter
Specifications
37 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| Ethernet LAN (RJ-45) ports | 0 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1800 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 11,54,300,400,574,867,1200 Mbit/s |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| MU-MIMO | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC |
| Product colour | Black |
| Antenna type | External |
| Transmitting power (CE) | 16 dBm |
| Transmitting power (FCC) | 19 dBm |
| LED indicators | Status |
| Operating modes | Infrastructure mode |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84 mm |
| Depth | 156.3 mm |
| Height | 19.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 201.5 mm |
| Package depth | 153 mm |
| Package height | 46.5 mm |
| Package weight | 230 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
Other features
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
