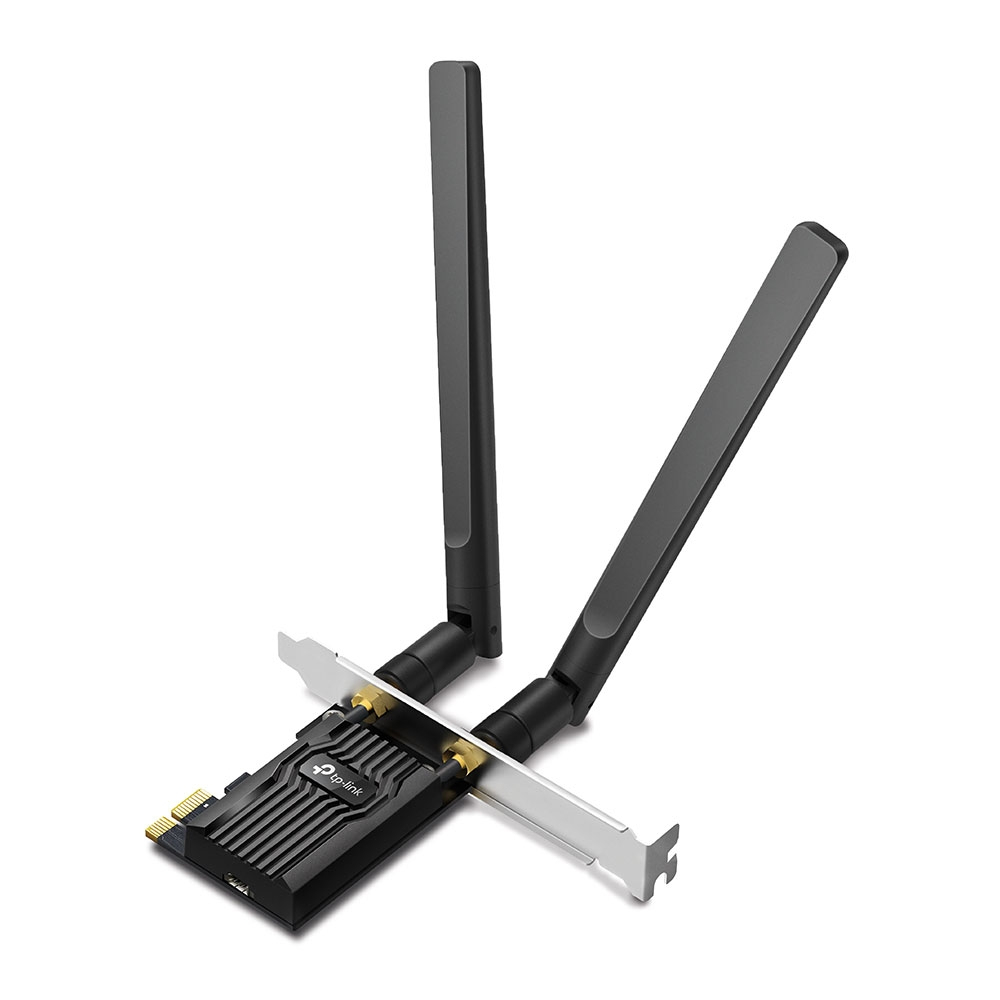

Archer TX20E
Model Archer TX20EPart no. ARCHER TX20E UN-BEAN 4897098688816
41 specifications
- Speed1800 Mbit/s
- ConnectivityWireless
- ColourBlack
- InternalYes
- Operating temperature (T-T)0 - 40 °C
- Width120.8 mm
Overview
- Speed
- 1800 Mbit/s
- Connectivity
- Wireless
- Colour
- Black
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 120.8 mm
- Brand
- TP-Link
- Category
- Network Card
- Model
- Archer TX20E
- Part numbers
- ARCHER TX20E UN-B, ARCHER TX20E
- EAN / UPC
- 4897098688816, 840030708800, 4897098688809, 1210002602433
- Also known as
- TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Specifications
41 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1800 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,300,574,867,1200 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |

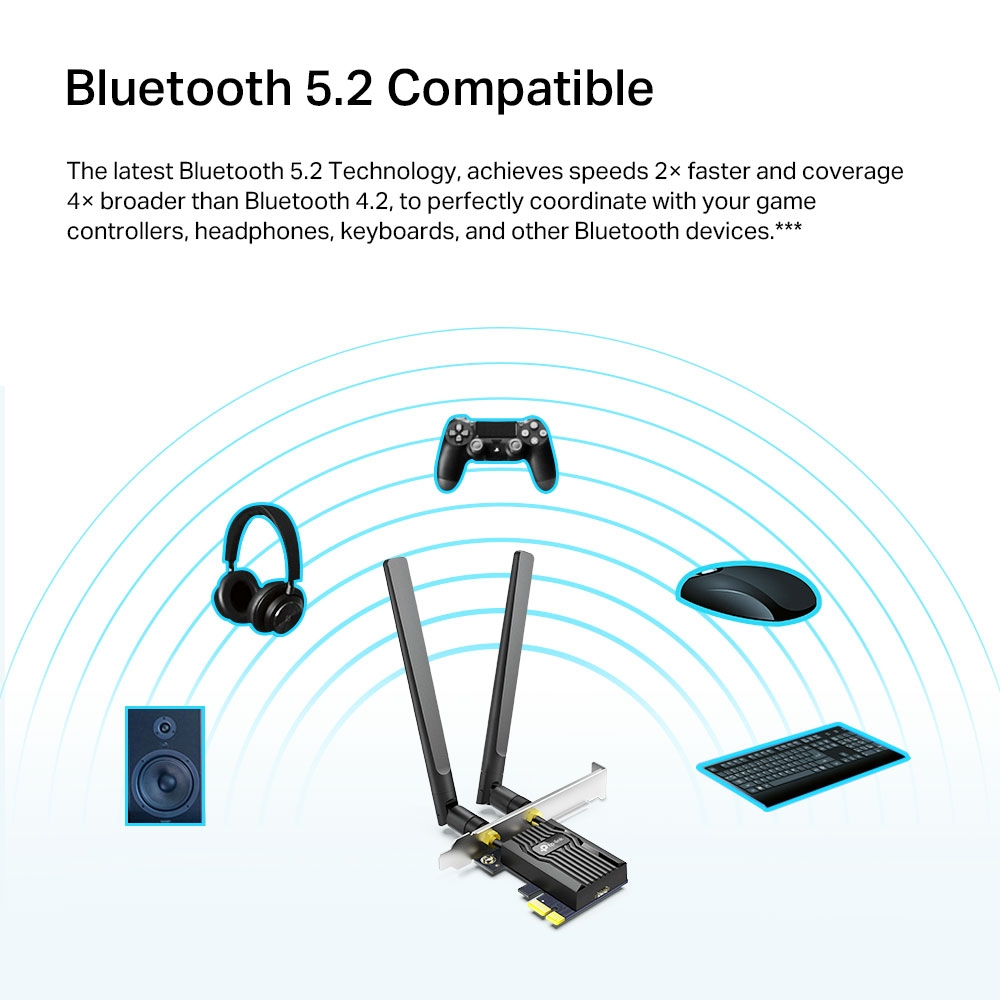

| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Product colour | Black |

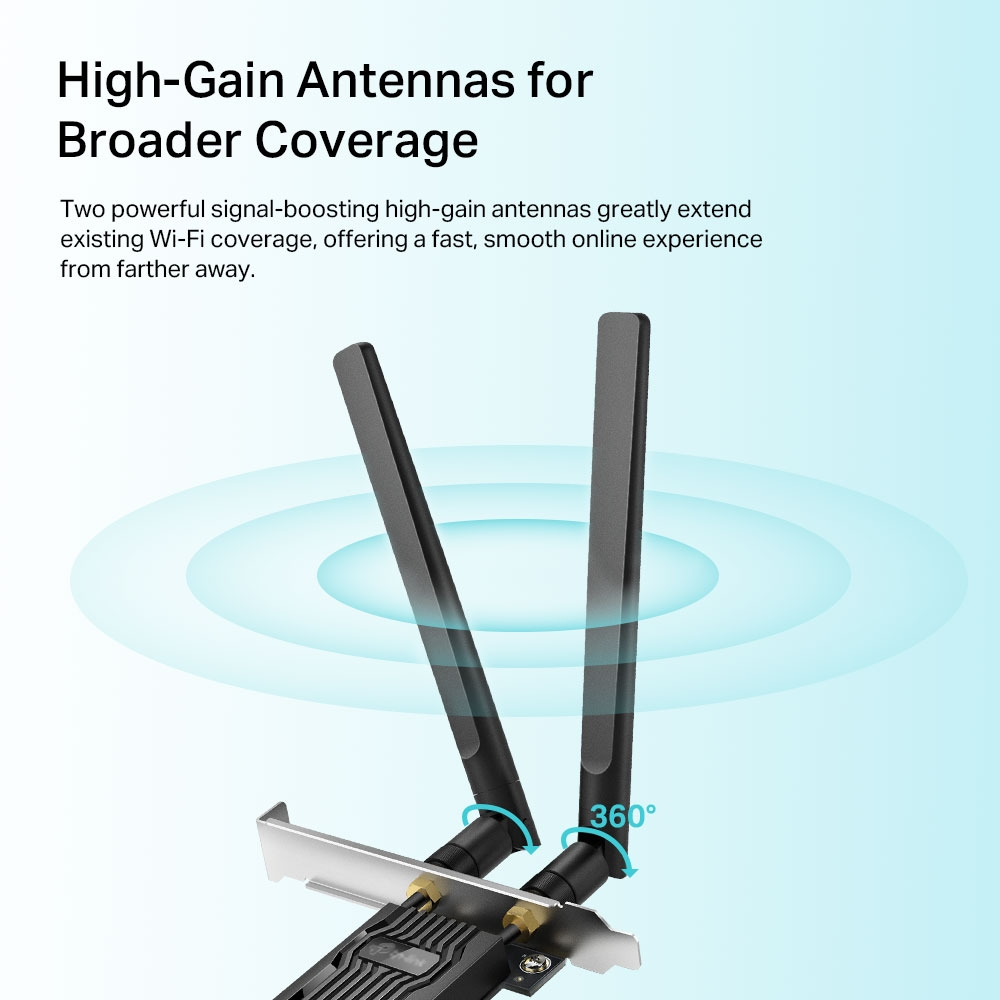

| Antenna | Yes |
| Antenna design | External |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 27 dBm |
| Plug and Play | Yes |
| Operating modes | Infrastructure mode |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120.8 mm |
| Depth | 78.5 mm |
| Height | 20.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 201.5 mm |
| Package depth | 152.5 mm |
| Package height | 41.5 mm |
| Package weight | 220 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Bluetooth header cable | Yes |
| Resource CD | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
