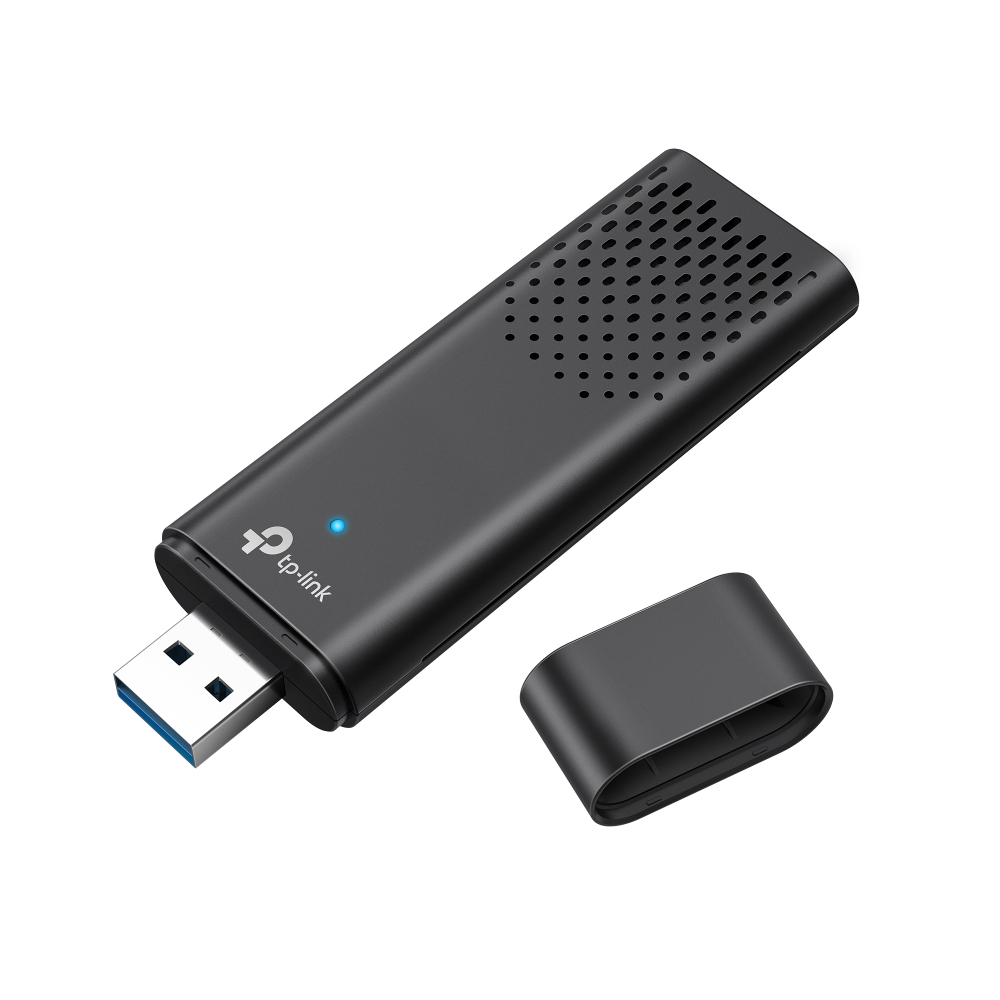

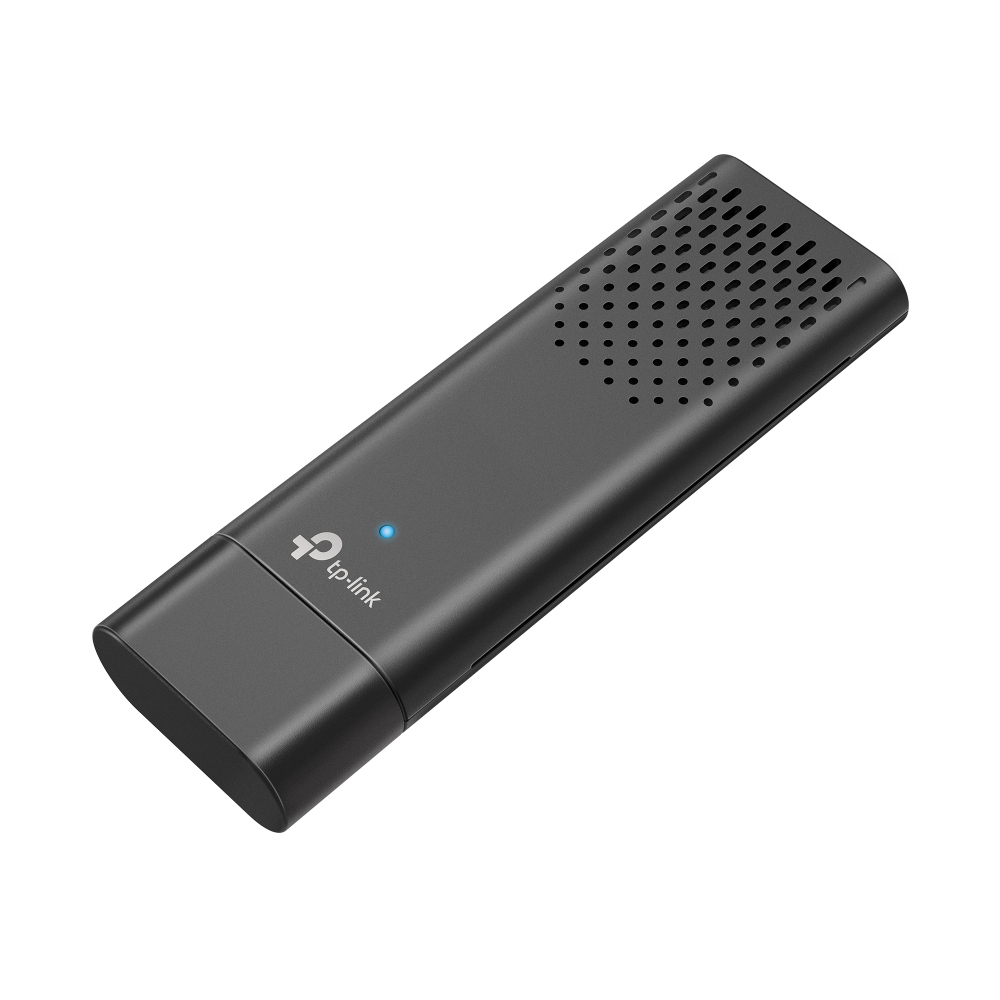

ARCHER TX1800U
Model ARCHER TX1800UEAN 8885020627329
31 specifications
- Speed1201 Mbit/s
- ConnectivityWireless
- ColourBlack
- InternalNo
- Windows operating systems supportedWindows 10, Windows 11
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1201 Mbit/s
- Connectivity
- Wireless
- Colour
- Black
- Internal
- No
- Windows operating systems supported
- Windows 10, Windows 11
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- Network Card
- Model
- ARCHER TX1800U
- Part number
- ARCHER TX1800U
- EAN / UPC
- 8885020627329
- Also known as
- TP-Link Archer AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter
Specifications
31 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB connector form factor | Straight |
| USB version | 3.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1201 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 11,54,300,400,574,867 Mbit/s |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC |
| Product colour | Black |
| Antenna | Yes |
| Antenna type | 2x2 |
| Transmitting power (CE) | 18.5 - 21.5 dBm |
| Transmitting power (FCC) | 19 dBm |
| LED indicators | Status |
| Operating modes | Infrastructure mode |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.2 mm |
| Depth | 29.2 mm |
| Height | 12.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
