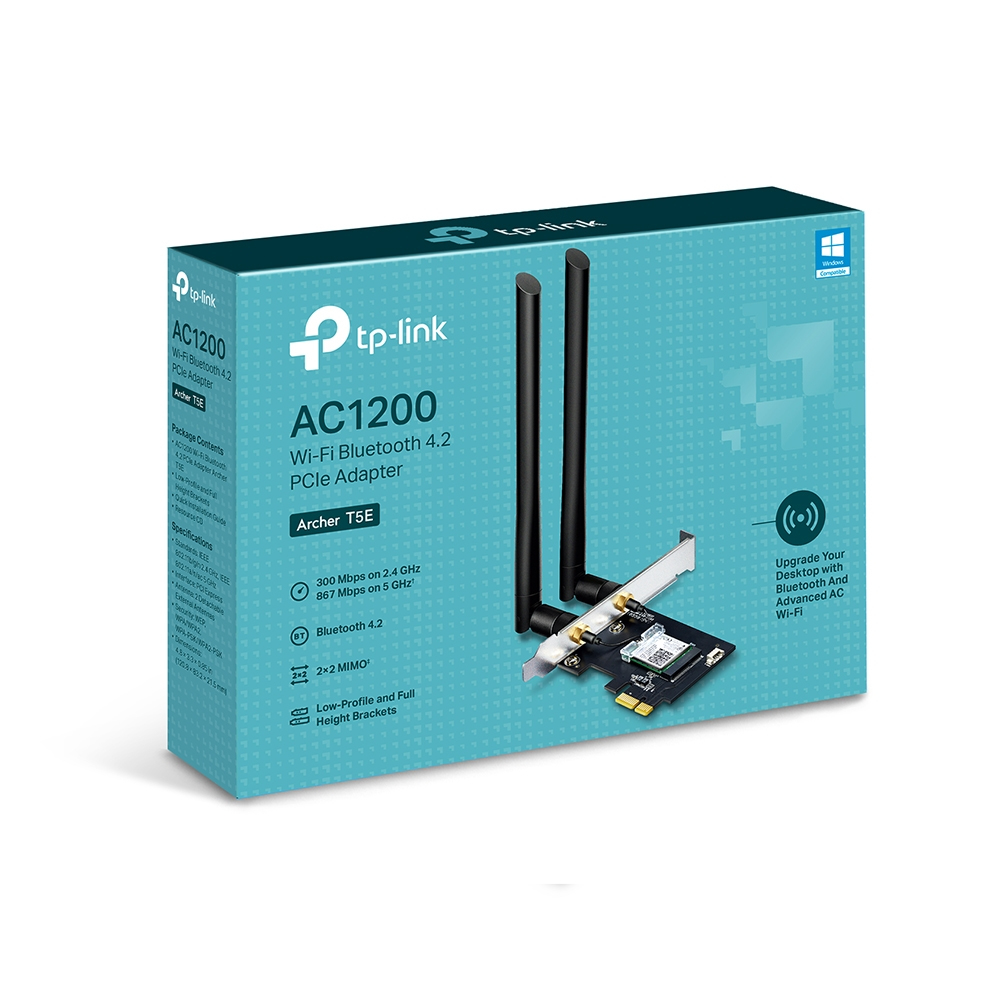

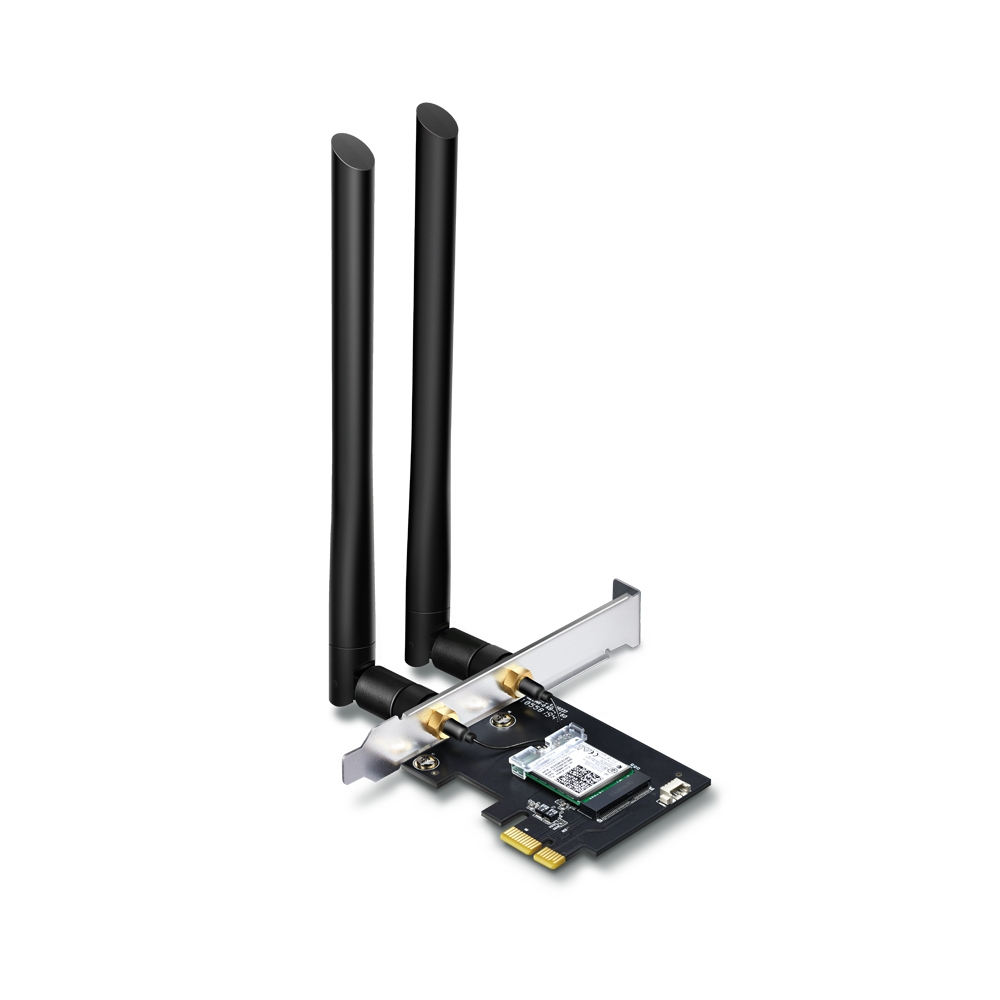

Archer T5E
Model Archer T5EPart no. ARCHER T5E V1EAN 6935364030643
39 specifications
- Speed867 Mbit/s
- ConnectivityWireless
- ColourBlack
- InternalYes
- Operating temperature (T-T)0 - 40 °C
- Width120.8 mm
Overview
- Speed
- 867 Mbit/s
- Connectivity
- Wireless
- Colour
- Black
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 120.8 mm
- Brand
- TP-Link
- Category
- Network Card
- Model
- Archer T5E
- Part numbers
- ARCHER T5E V1, ARCHER T5E
- EAN / UPC
- 6935364030643, 840030700477, 6935364088965
- Also known as
- TP-Link AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter
Specifications
39 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,300,867 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black |
| Antenna | Yes |
| Antenna design | External |
| Certification | FCC, CE |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120.8 mm |
| Depth | 83.2 mm |
| Height | 21.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 150 mm |
| Package height | 39 mm |
| Package weight | 230 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Quick start guide | Yes |
| Transmit power range | 20 - 23 dBmW |
