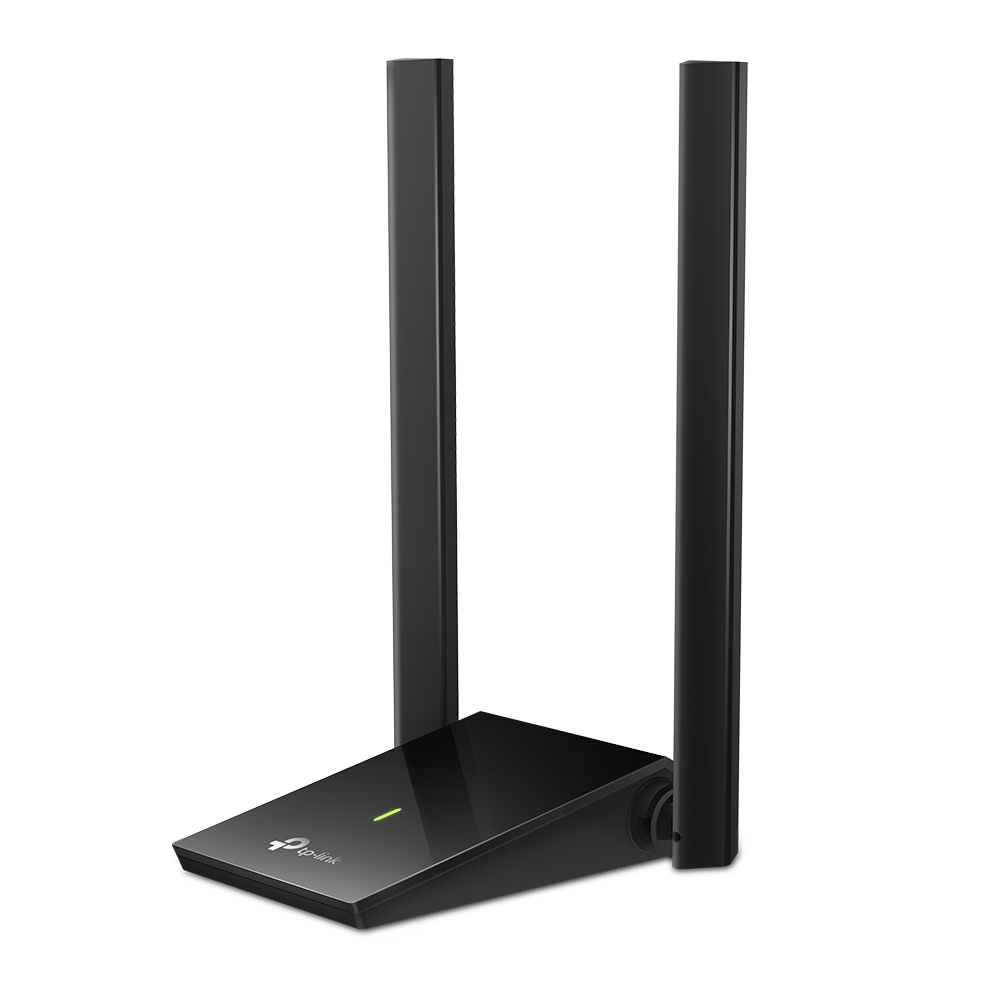

Archer T4U Plus
Model Archer T4U PlusPart no. ARCHER T4U PLUSEAN 840030701535
44 specifications
- Speed867 Mbit/s
- ConnectivityWireless
- ColourBlack
- InternalNo
- USB poweredYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 867 Mbit/s
- Connectivity
- Wireless
- Colour
- Black
- Internal
- No
- USB powered
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- Network Card
- Model
- Archer T4U Plus
- Part number
- ARCHER T4U PLUS
- EAN / UPC
- 840030701535, 6935364072636
- Also known as
- TP-Link Archer T4U Plus WLAN 867 Mbit/s
Specifications
44 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,300,400,867 Mbit/s |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MU-MIMO | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black |
| Antenna | Yes |
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 20 dBm |
| LED indicators | Status |
| Certification | FCC, CE |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84 mm |
| Depth | 19.2 mm |
| Height | 156.3 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 150 mm |
| Package height | 44 mm |
| Package weight | 230 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Resource CD | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
