Archer T2U Plus
Model Archer T2U PlusPart no. ARCHER T2U PLUS V1EAN 840030700033
40 specifications
- Speed600 Mbit/s
- ConnectivityWireless
- ColourBlack
- InternalYes
- Operating temperature (T-T)0 - 40 °C
- Width57.8 mm
Overview
- Speed
- 600 Mbit/s
- Connectivity
- Wireless
- Colour
- Black
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 57.8 mm
- Brand
- TP-Link
- Category
- Network Card
- Model
- Archer T2U Plus
- Part numbers
- ARCHER T2U PLUS V1, ARCHER T2U PLUS
- EAN / UPC
- 840030700033, 6935364099879, 6935364099862
- Also known as
- TP-Link AC600 High Gain Wireless Dual Band USB WiFi Adapter
Specifications
40 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 600 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 150,200,433 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | Laptop |
| Product colour | Black |
| Antenna | Yes |

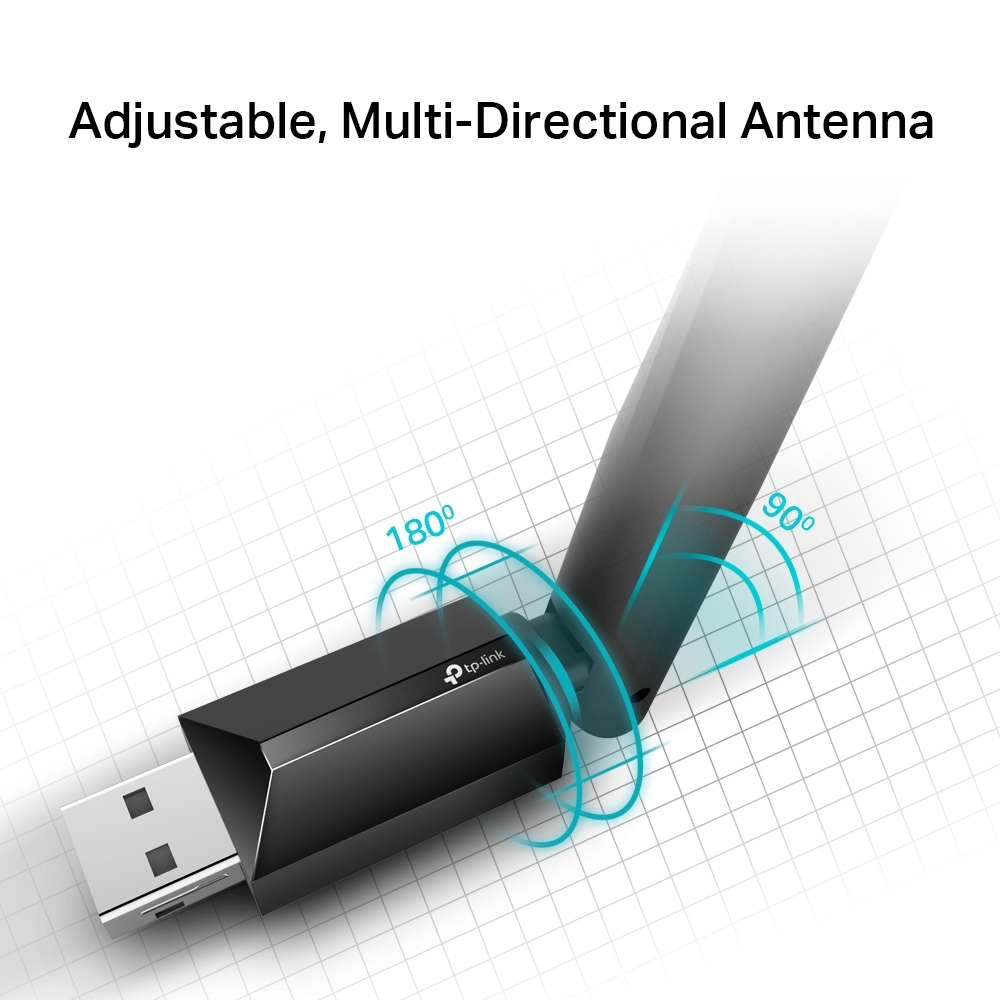

| Antenna design | External |
| Plug and Play | Yes |
| LED indicators | Status |
| Certification | FCC, CE, RoHS |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57.8 mm |
| Depth | 18 mm |
| Height | 173.4 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 148 mm |
| Package height | 42 mm |
| Package weight | 140 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|

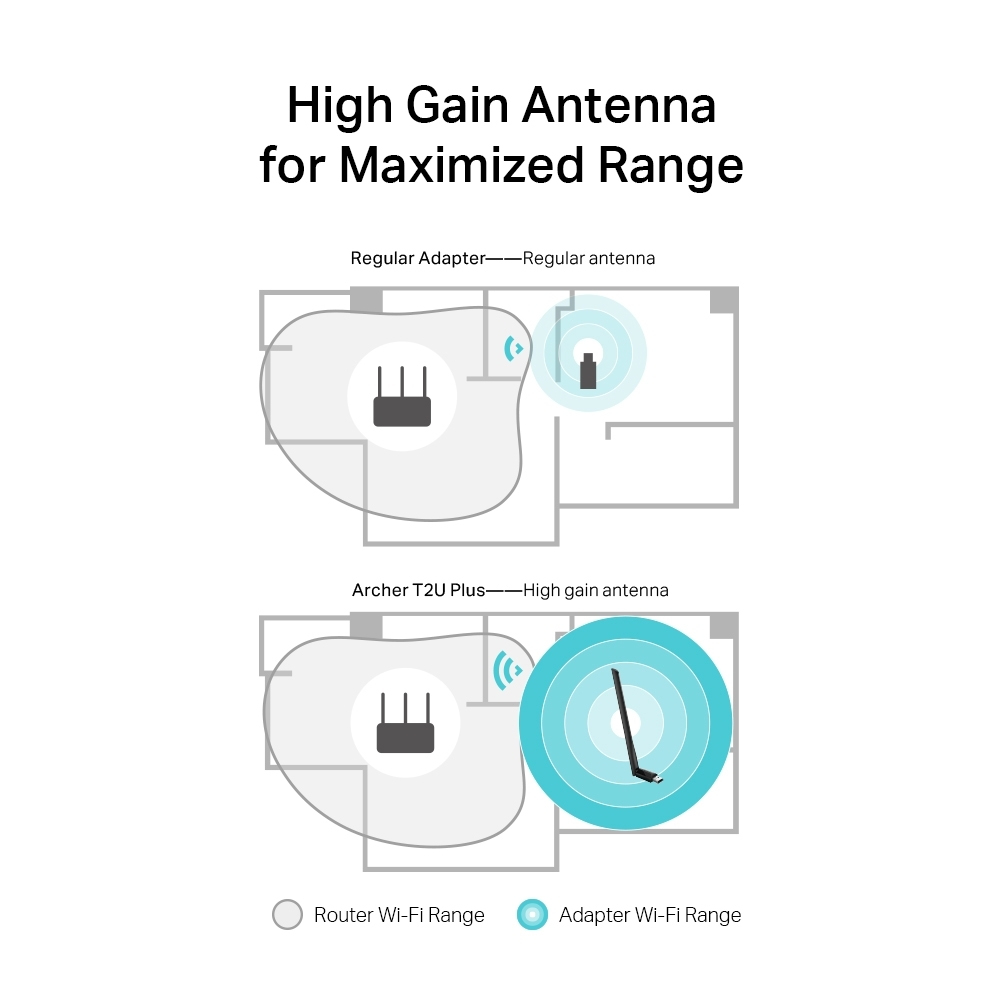

| Gain | 5 dBi |
| Antennas quantity | 1 |
