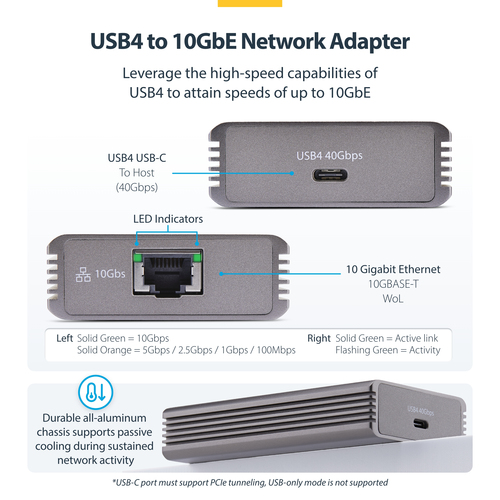

USB4 to Ethernet Adapter, 10GbE, Multi-Gigabit, Thunderbolt Compatible, 10GBASE-T/5G/2.5G NIC
10G Ethernet Adapter, 0.5m USB4 Cable, Win/Mac, TAA
Model USB4-10GBE-ETHERNETEAN 065030911375
40 specifications
- Speed40000 Mbit/s
- ConnectivityWired
- Weight520 g
- ColourGrey
- InternalNo
- Operating temperature (T-T)5 - 55 °C
Overview
- Speed
- 40000 Mbit/s
- Connectivity
- Wired
- Weight
- 520 g
- Colour
- Grey
- Internal
- No
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- StarTech.com
- Category
- Network Card
- Model
- USB4-10GBE-ETHERNET
- Part number
- USB4-10GBE-ETHERNET
- EAN / UPC
- 065030911375
- Also known as
- StarTech.com USB4 to Ethernet Adapter, 10GbE, Multi-Gigabit, Thunderbolt Compatible, 10GBASE-T/5G/2.5G NIC, 10G Ethernet Adapter, 0.5m USB4 Cable, Win/Mac, TAA
Specifications
40 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 40000 Mbit/s |
| Networking standards | IEEE 802.11ax, IEEE 802.11be |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | Laptop |
| Product colour | Grey |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 50000 h |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 108.5 mm |
| Height | 28.5 mm |
| Weight | 520 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 170 mm |
| Package depth | 134 mm |
| Package height | 74 mm |
| Package weight | 110 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 395 mm |
| Master (outer) case length | 358 mm |
| Master (outer) case height | 313 mm |
| Products per master (outer) case | 20 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.5 m |
