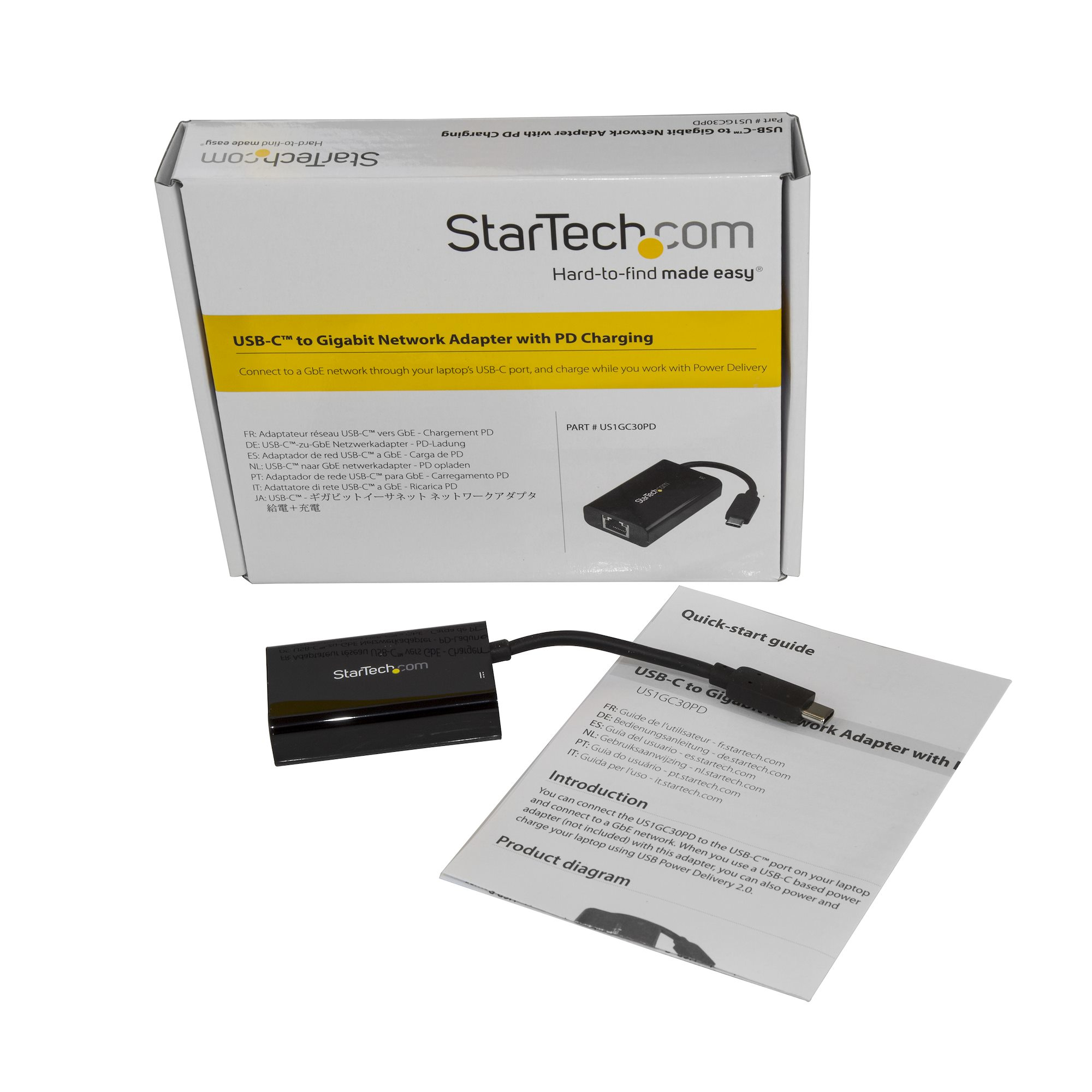

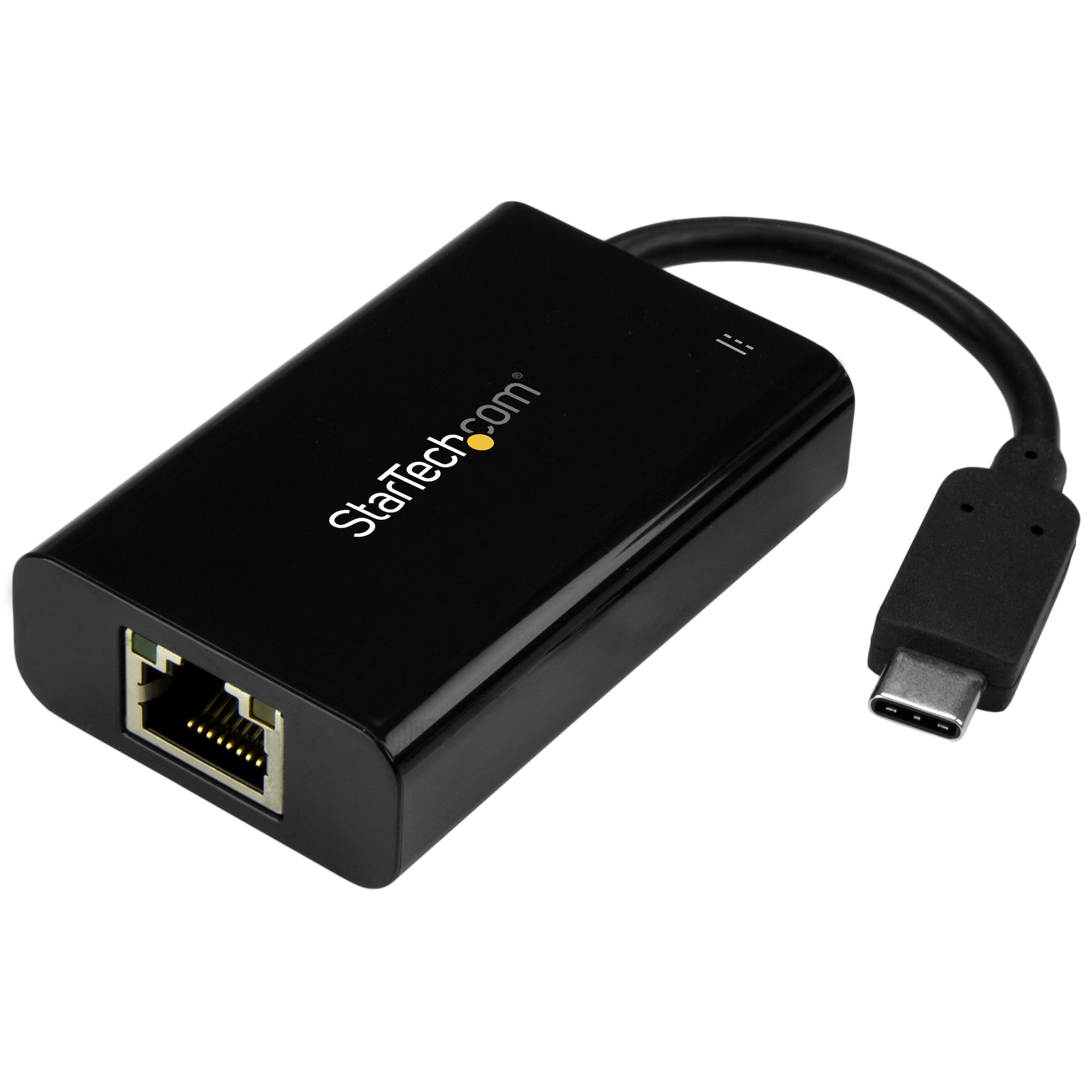

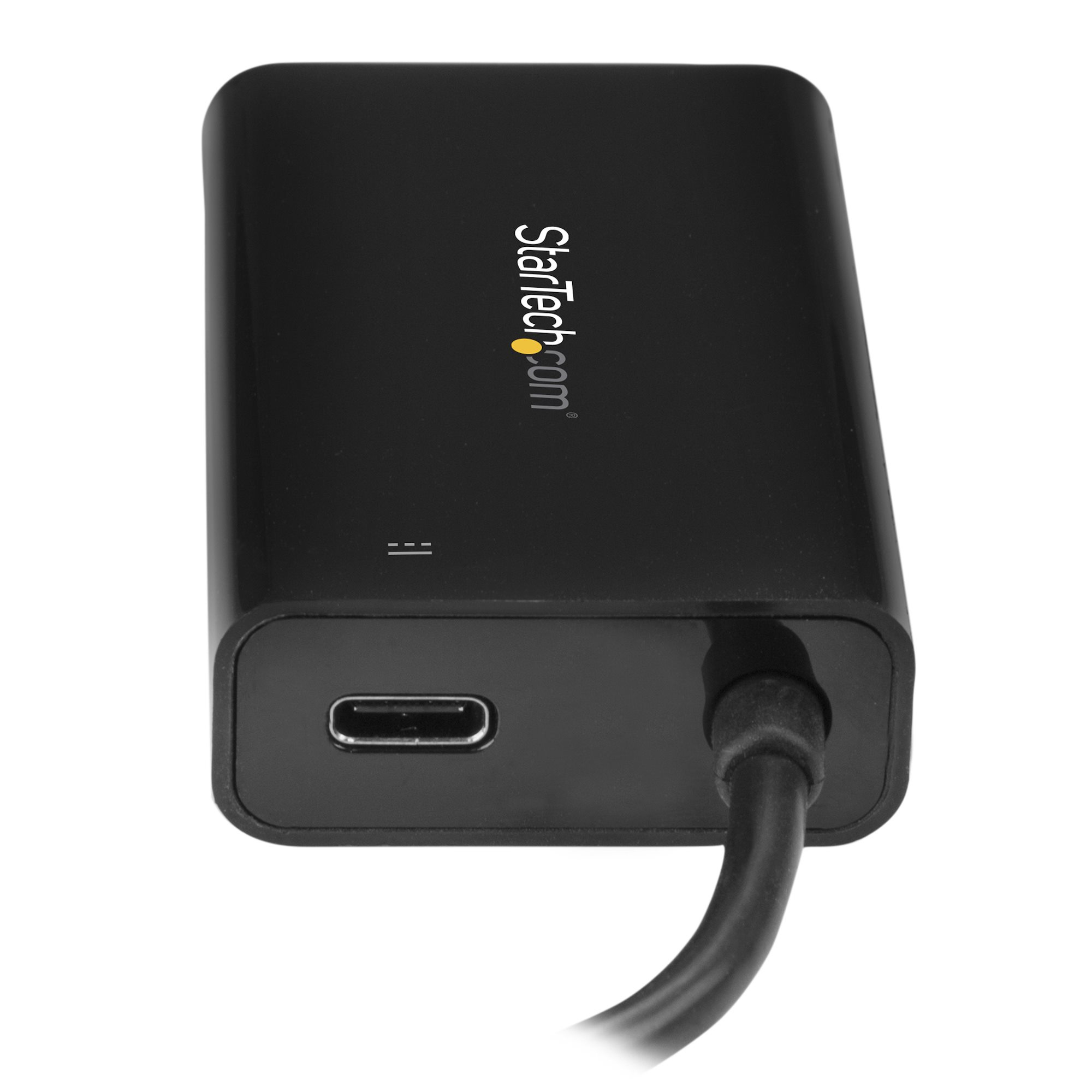

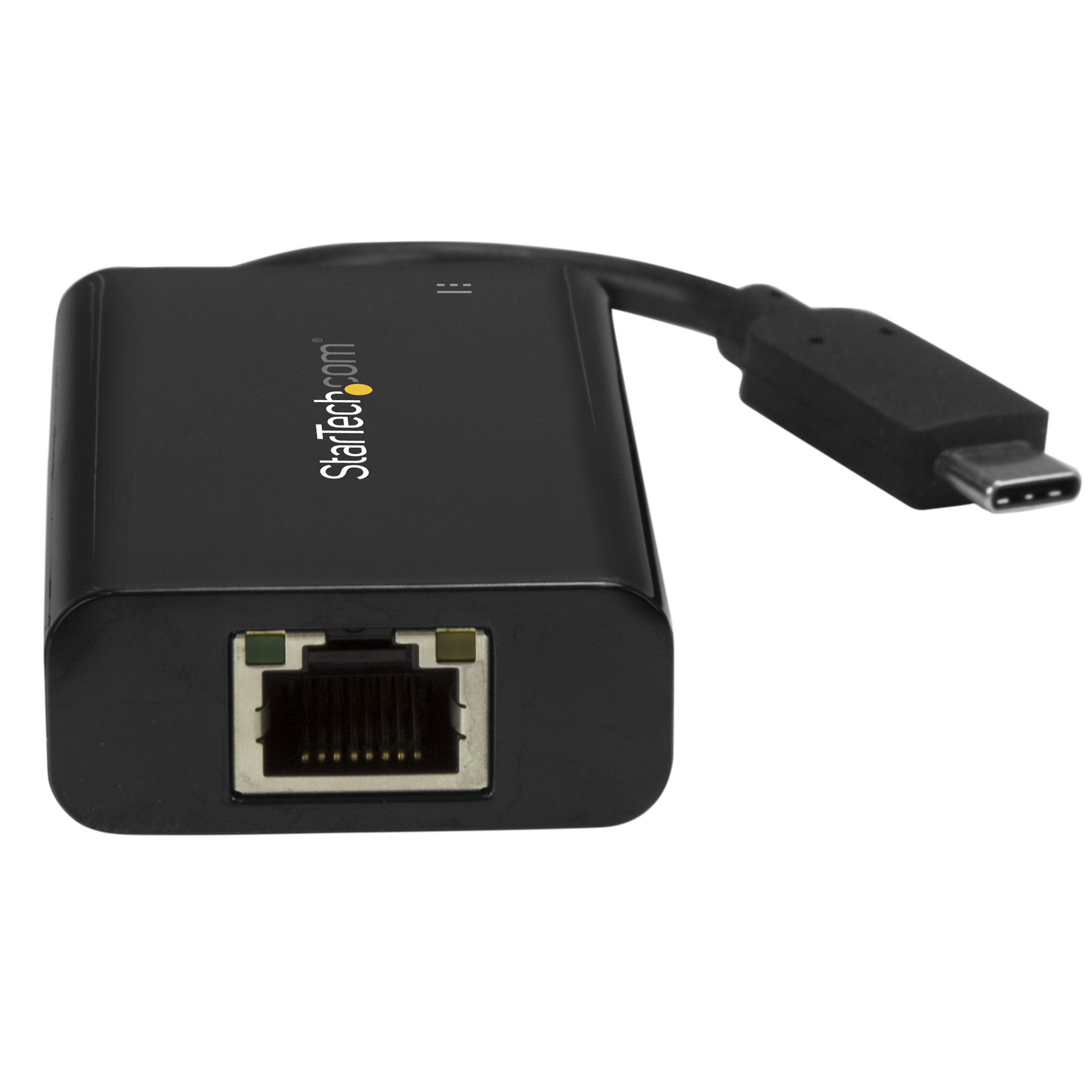

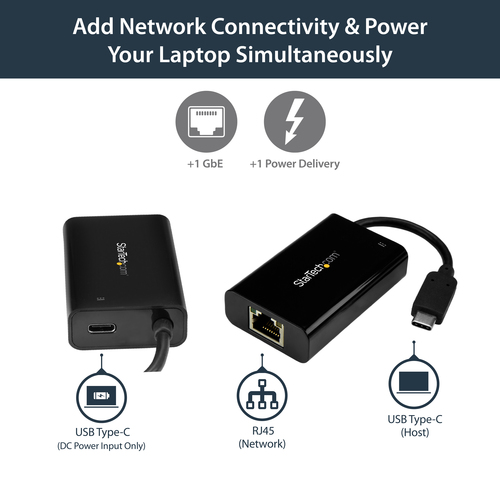

StarTech.com USB C to Gigabit… US1GC30PD Specs

Overview

Speed: 5000 Mbit/s
Connectivity: Wired
Weight: 34 g
Colour: Black
Internal: No
USB powered: Yes

Brand: StarTech.com
Category: Network Card
Model: US1GC30PD
Part number: US1GC30PD
EAN / UPC: 065030867764
Also known as: StarTech.com USB C to Gigabit Ethernet Adapter/Converter w/PD 2.0 - 1Gbps USB 3.1 Type C to RJ45/LAN Network w/Power Delivery Pass Through Charging - TB3 Compat

Specifications

45 specifications in 11 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wired

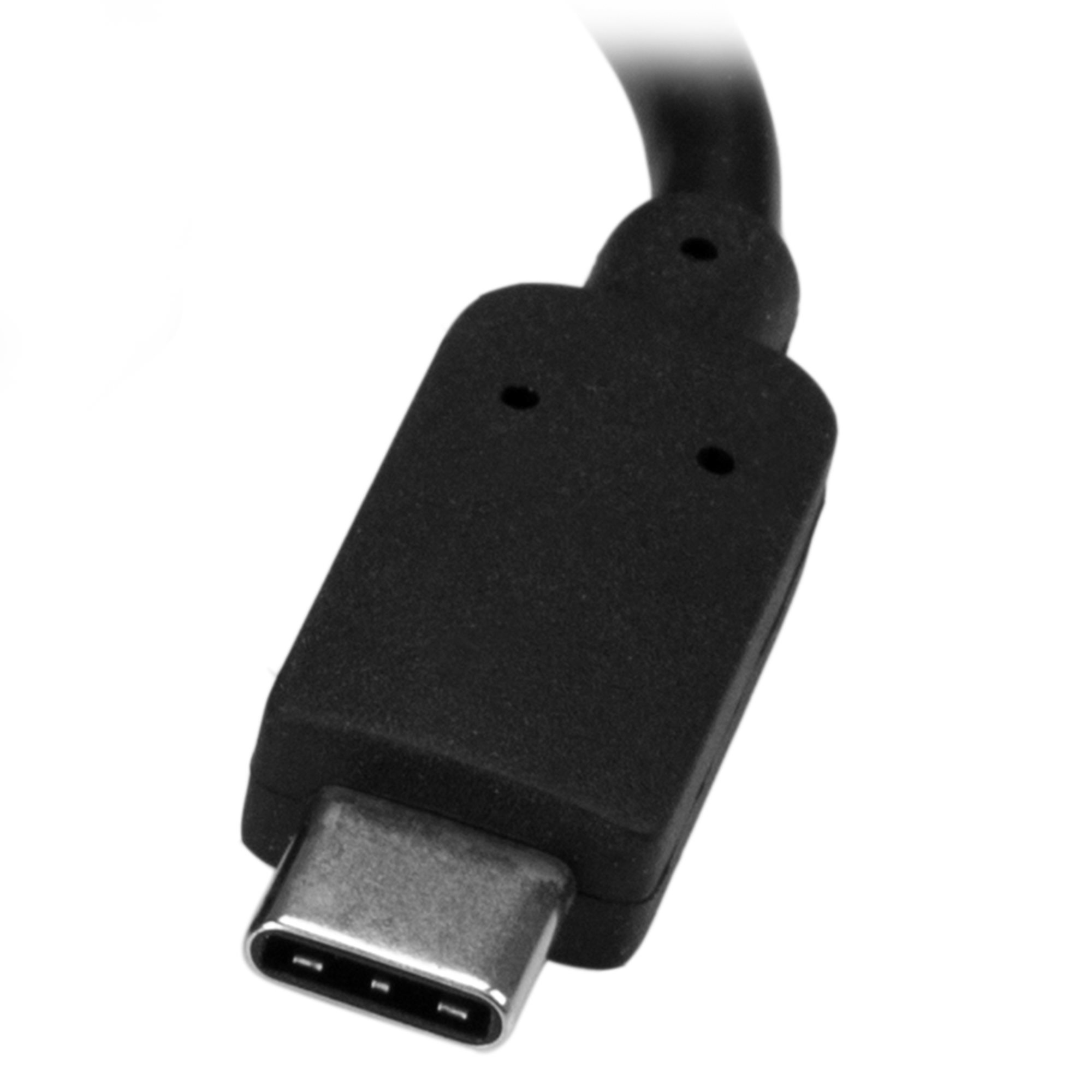

Host interface	USB Type-C
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
USB version	3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
Maximum data transfer rate	5000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames	9000
Jumbo frames support	Yes

Design

Specification	Value
Internal	No
Product colour	Black
Chipset	Realtek RTL8153
LED indicators	Activity, Link
Certification	CE, FCC

Power

Specification	Value
USB powered	Yes

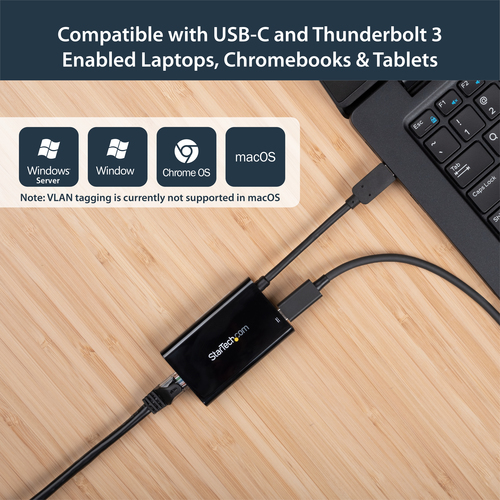

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2016, Windows Server 2019

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	5 - 90%

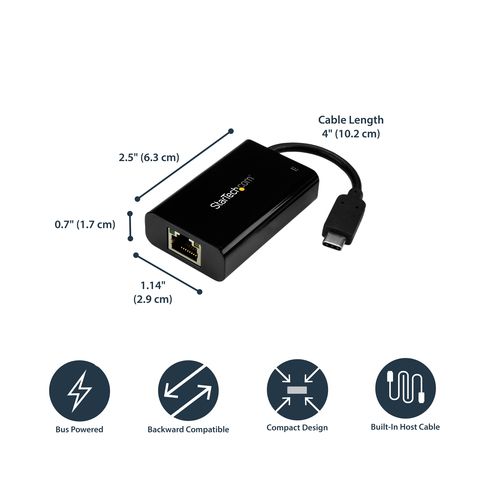

Weight & dimensions

Specification	Value
Width	40 mm
Depth	62.5 mm
Height	17 mm
Weight	34 g

Packaging data

Specification	Value
Package width	147 mm
Package depth	174 mm
Package height	32 mm
Package weight	113 g

Technical details

Specification	Value
Compliance certificates	RoHS

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Master (outer) case width	333 mm
Master (outer) case length	362 mm
Master (outer) case height	319 mm
Products per master (outer) case	40 pc(s)

Other features

Specification	Value
Housing material	Plastic
Quick start guide	Yes
Power supply	60 W
