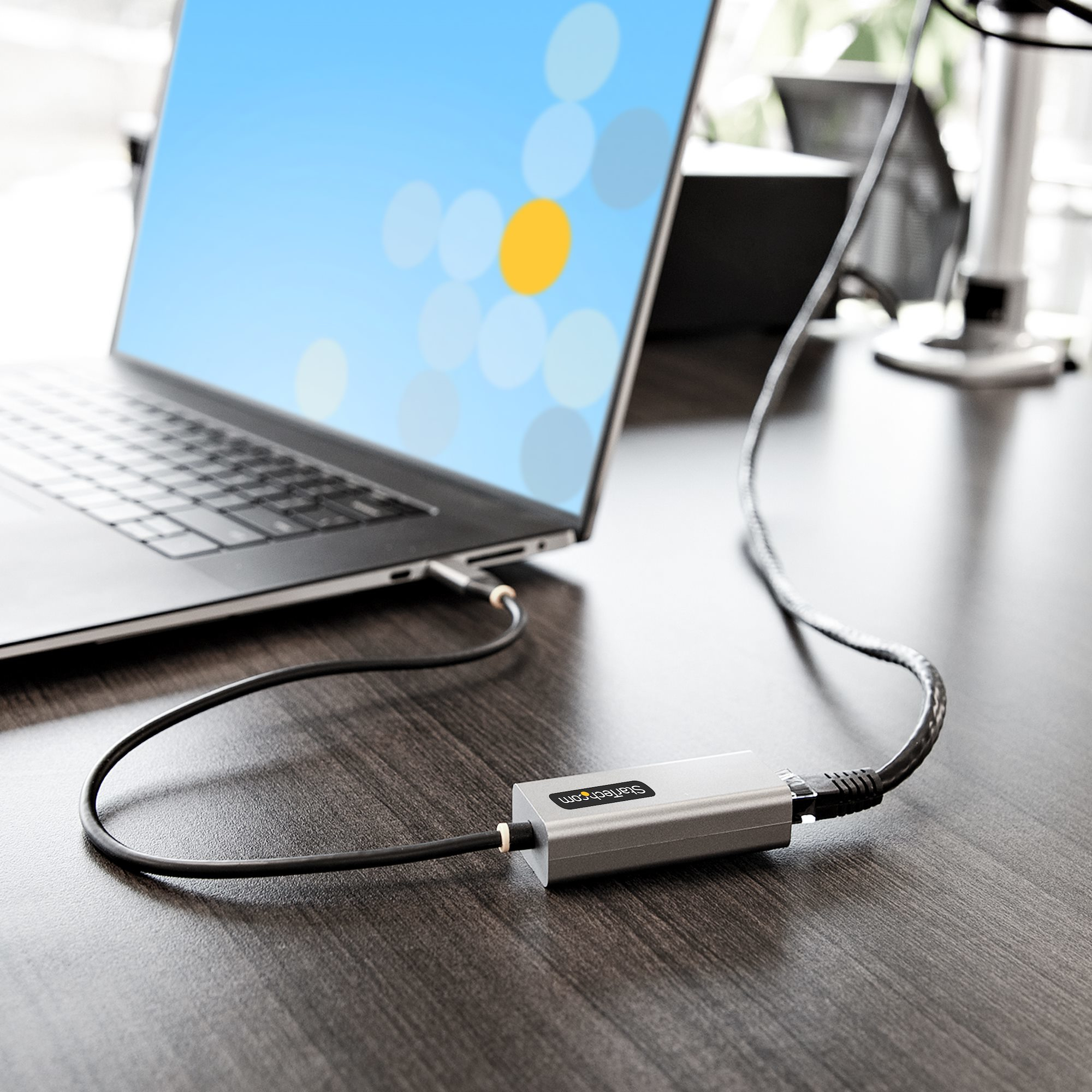

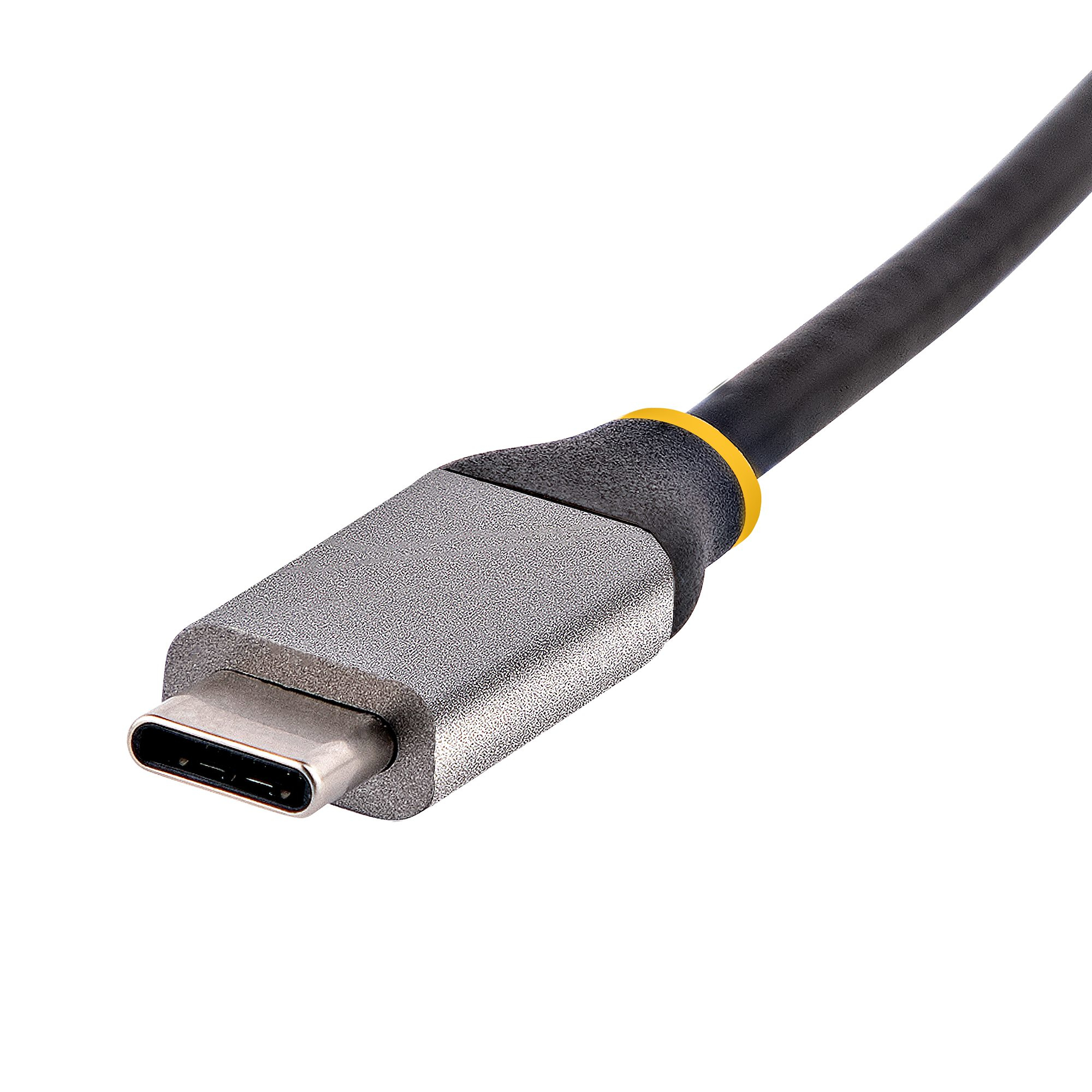

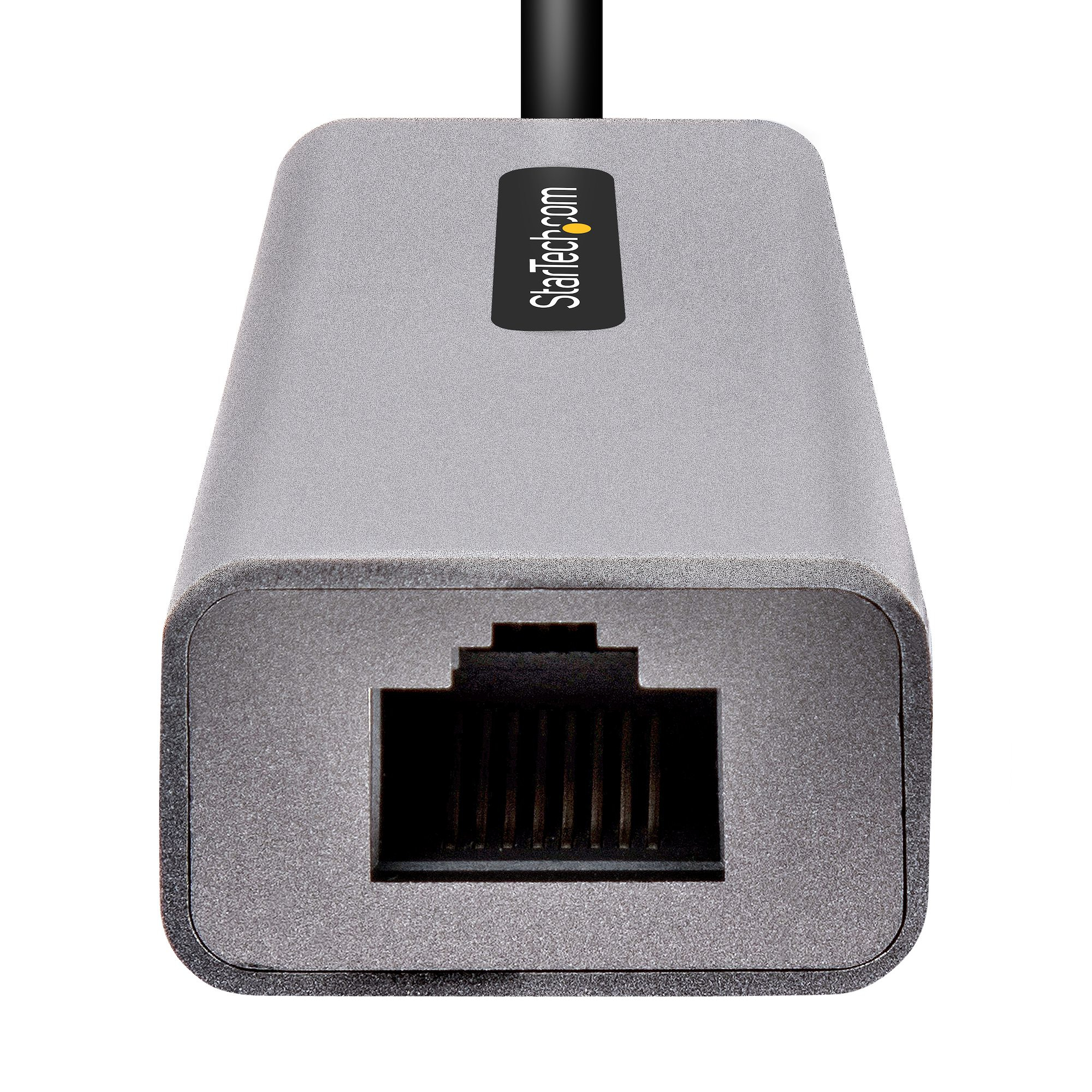

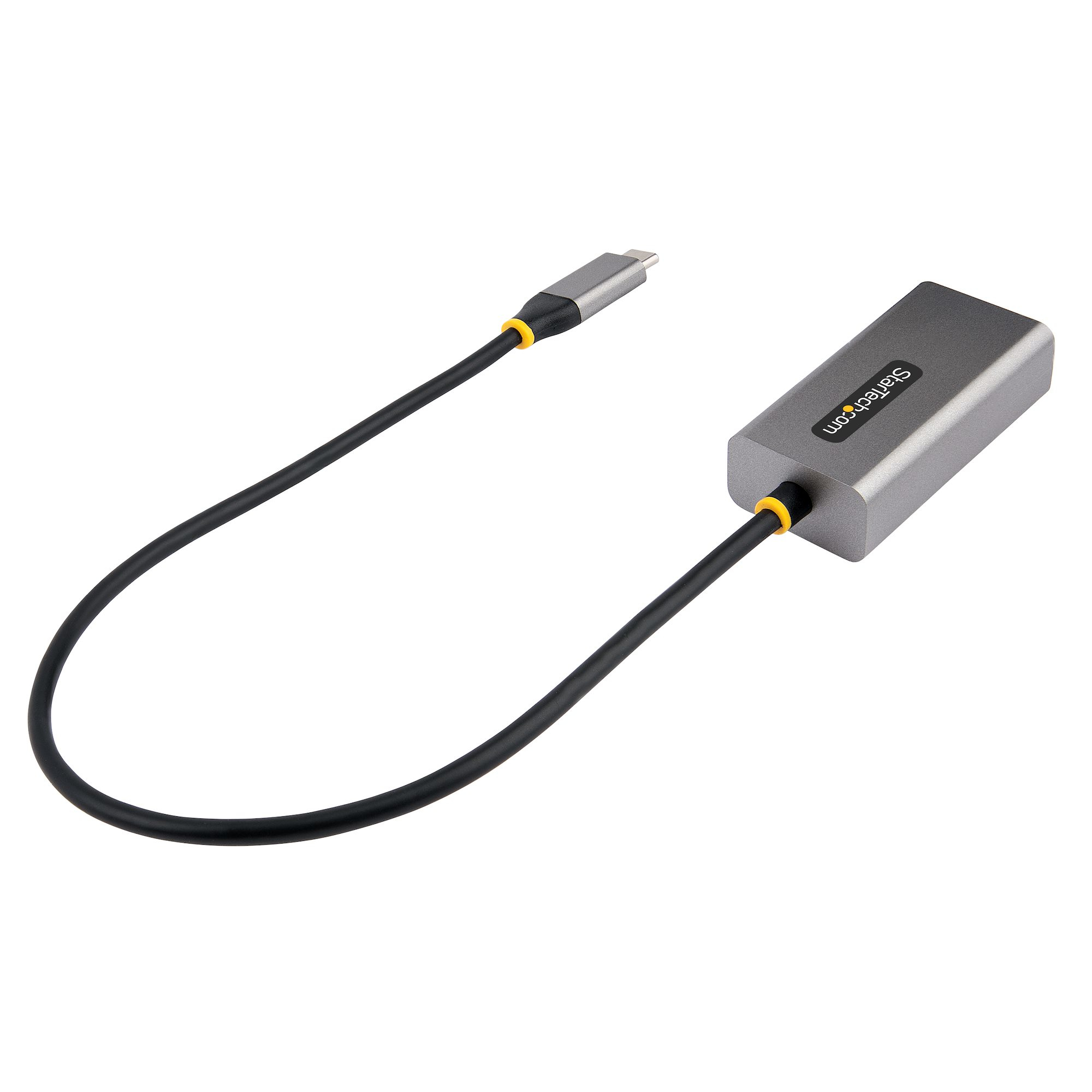

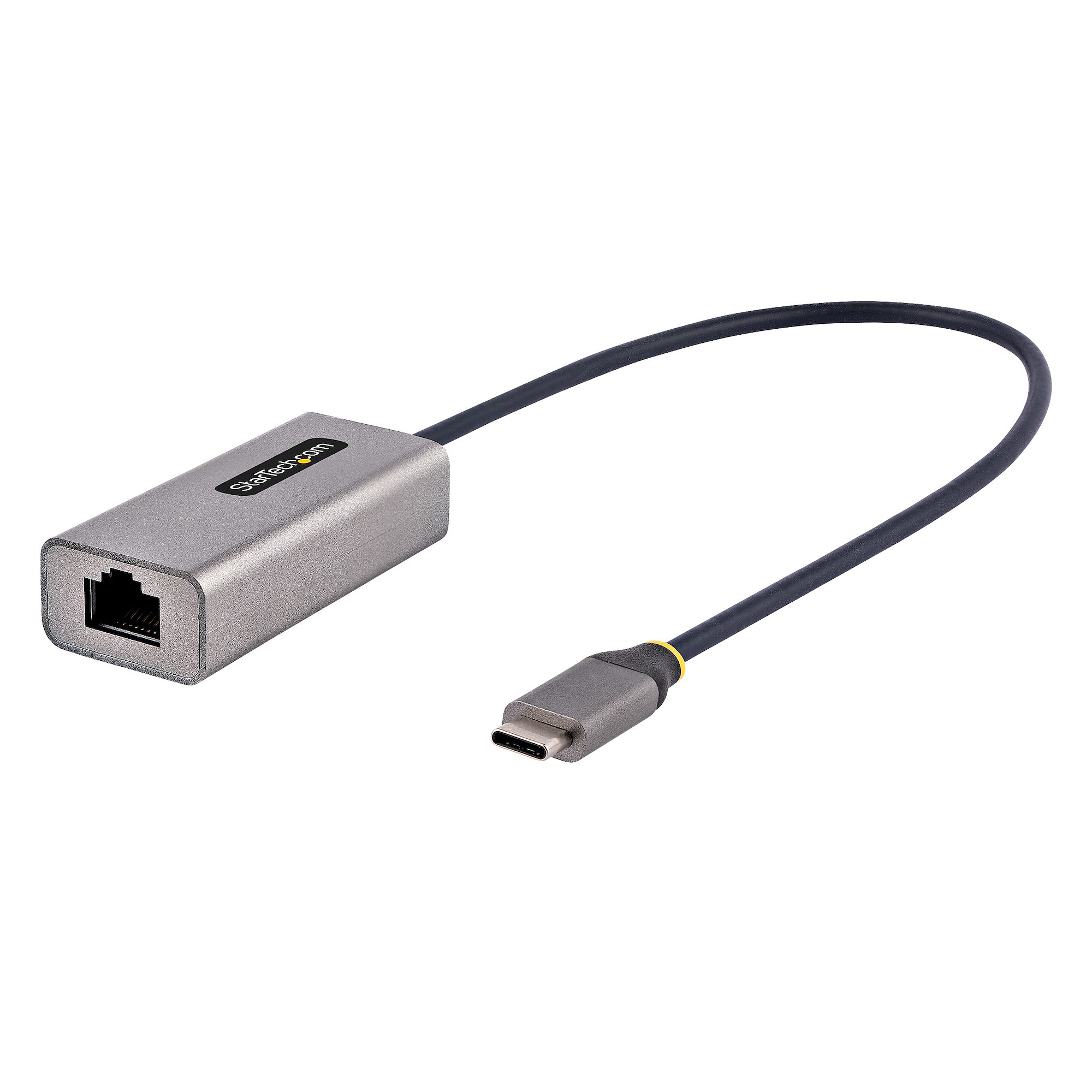

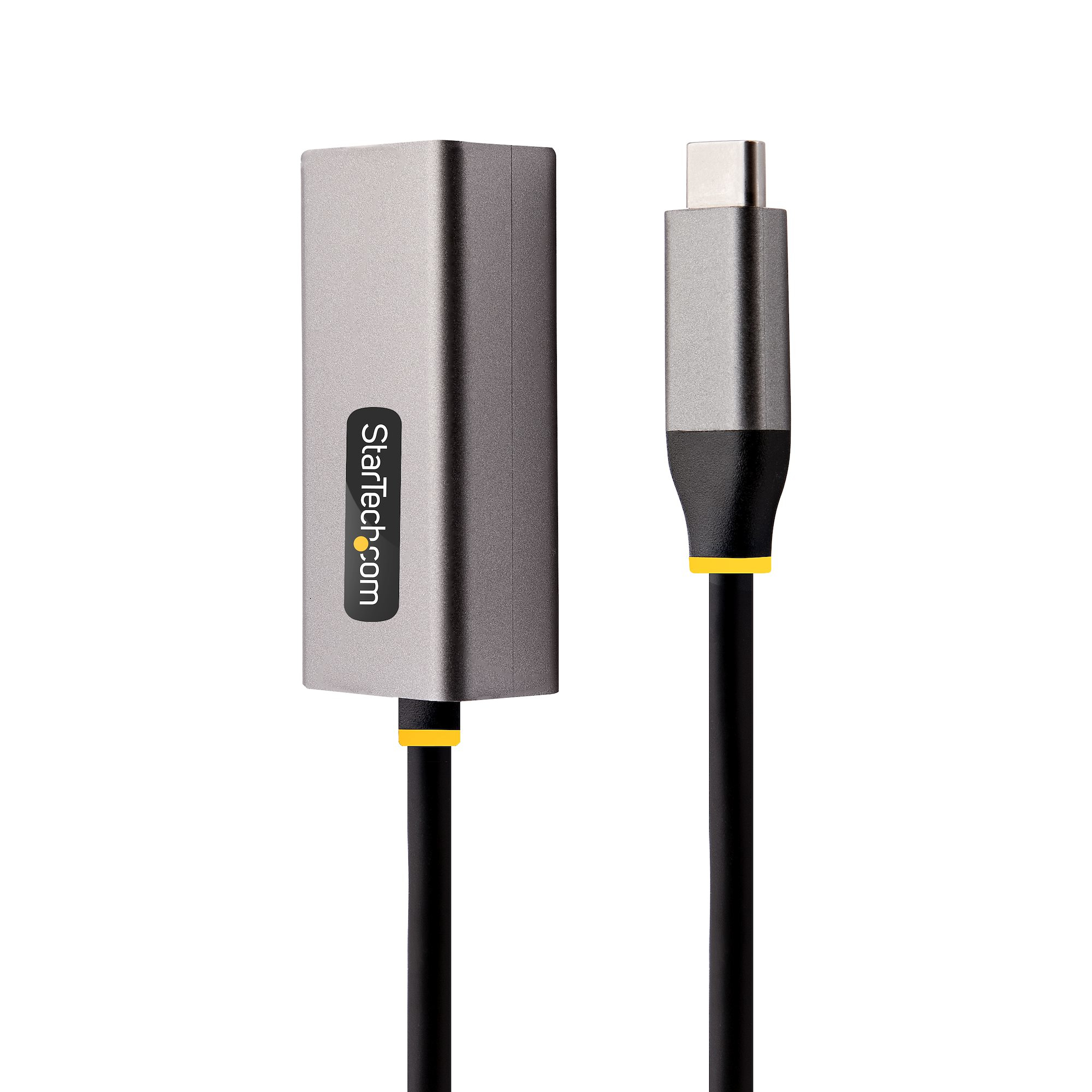

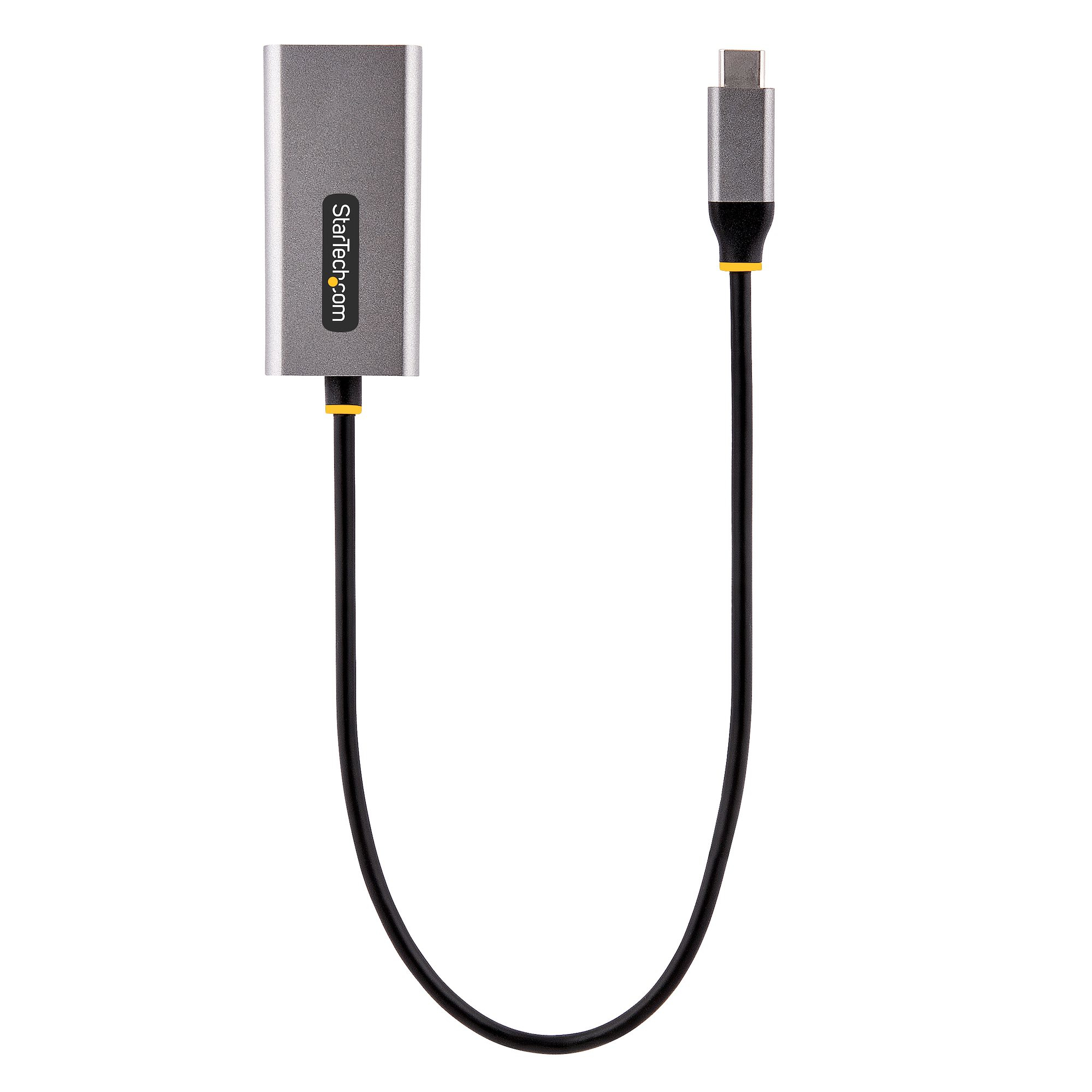

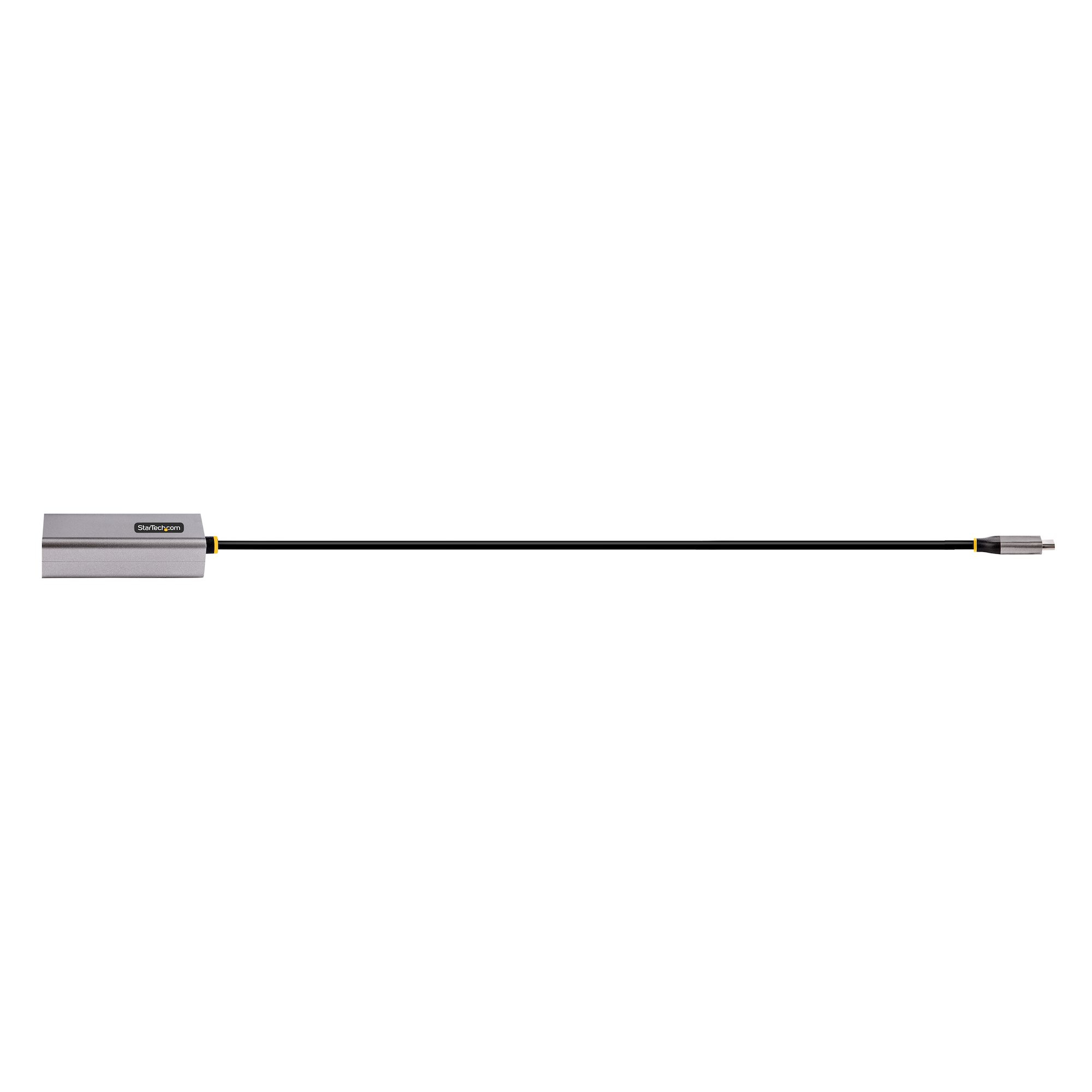

USB-C to Ethernet Adapter, USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB-C to RJ45 Ethernet Adapter (GbE)
12in Attached Cable
Model US1GC30B2EAN 065030895804
45 specifications
- Speed5000 Mbit/s
- ConnectivityWired
- Weight23 g
- ColourBlack, Grey
- InternalNo
- Linux operating systems supportedYes
Overview
- Speed
- 5000 Mbit/s
- Connectivity
- Wired
- Weight
- 23 g
- Colour
- Black, Grey
- Internal
- No
- Linux operating systems supported
- Yes
- Brand
- StarTech.com
- Category
- Network Card
- Model
- US1GC30B2
- Part number
- US1GC30B2
- EAN / UPC
- 065030895804
- Also known as
- StarTech.com USB-C to Ethernet Adapter, USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB-C to RJ45 Ethernet Adapter (GbE), 12in Attached Cable
Specifications
45 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 5000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black, Grey |
| Mean time between failures (MTBF) | 262800 h |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Server operating systems supported | Windows Server 2019 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 174 mm |
| Depth | 27 mm |
| Height | 16 mm |
| Weight | 23 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 126 mm |
| Package depth | 169 mm |
| Package height | 24 mm |
| Package weight | 90 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 532 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 212 mm |
| Products per master (outer) case | 200 pc(s) |
Other features
| Specification | Value |
|---|---|
| Housing material | ABS |
| Cable length | 0.3 m |
