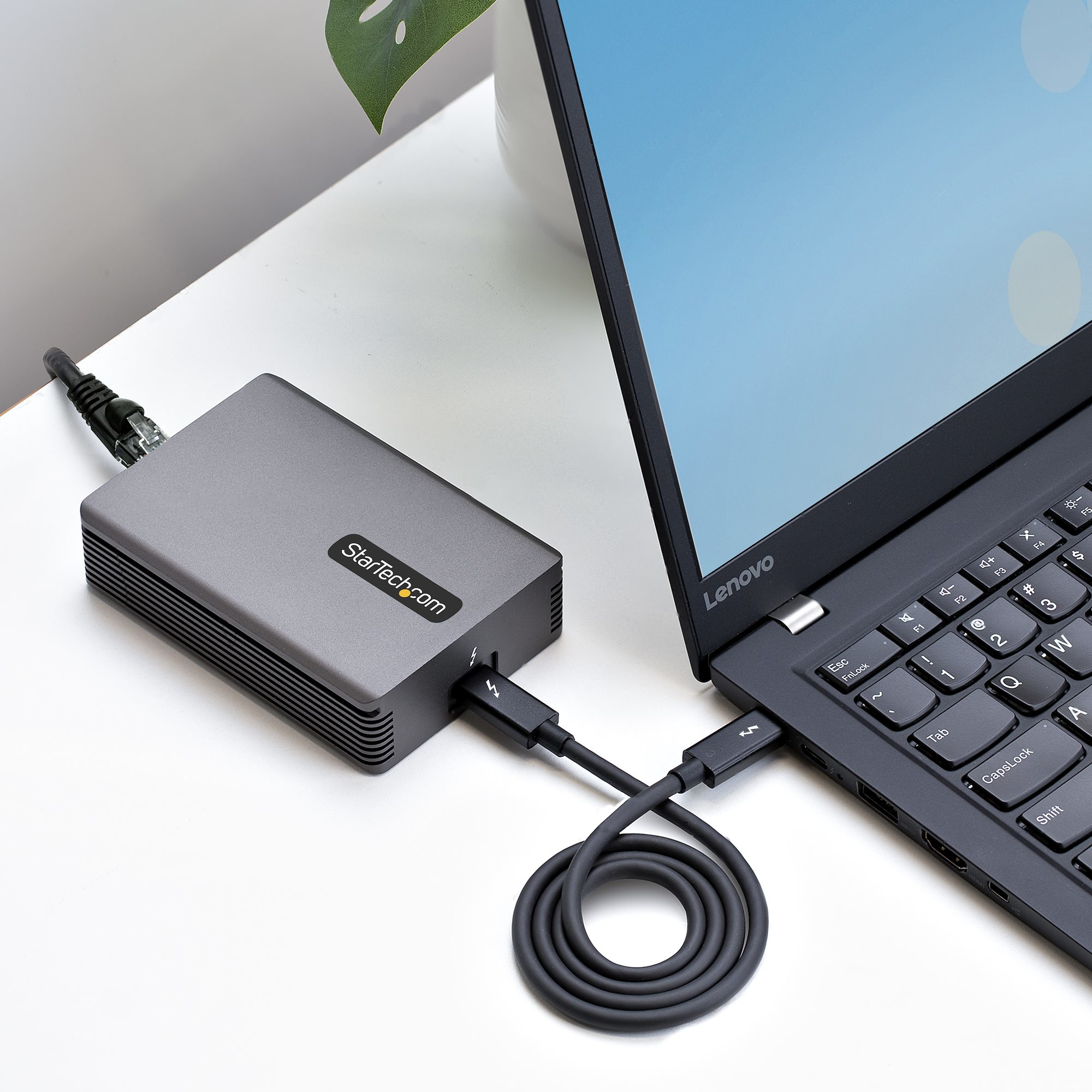

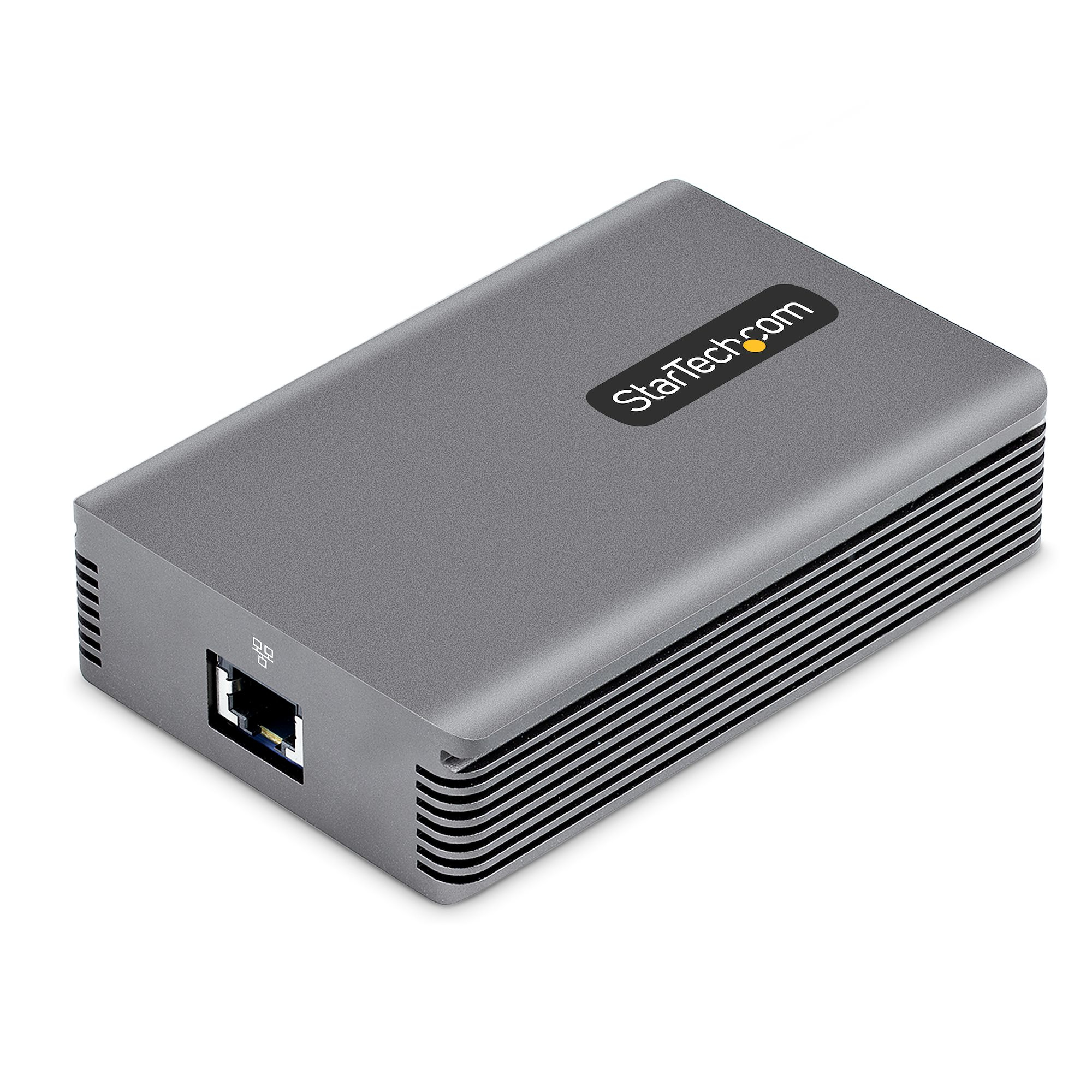

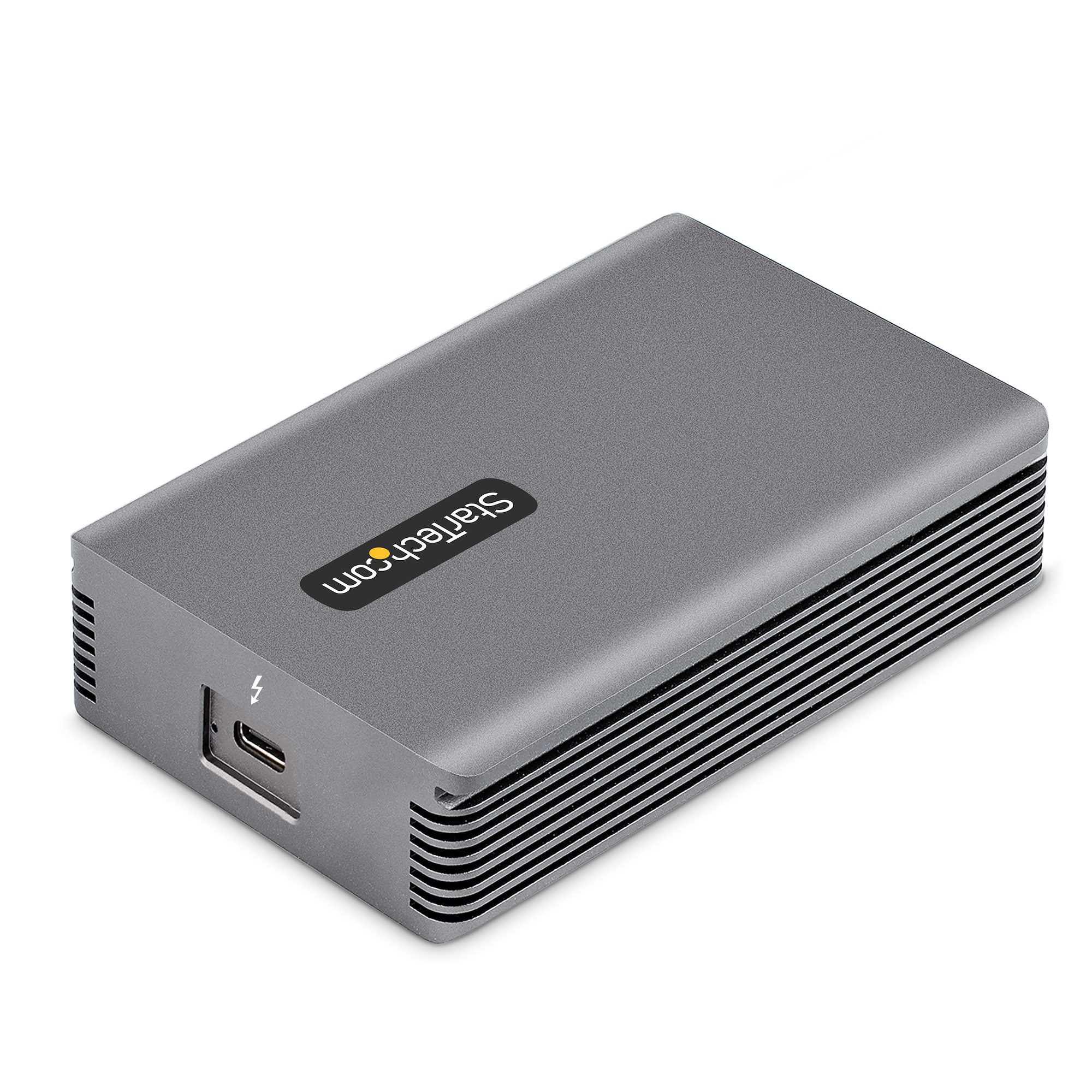

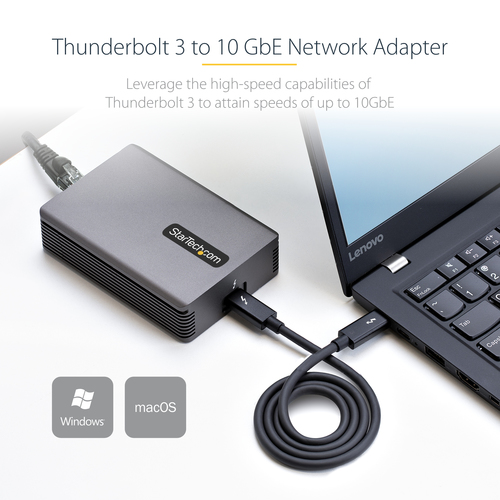

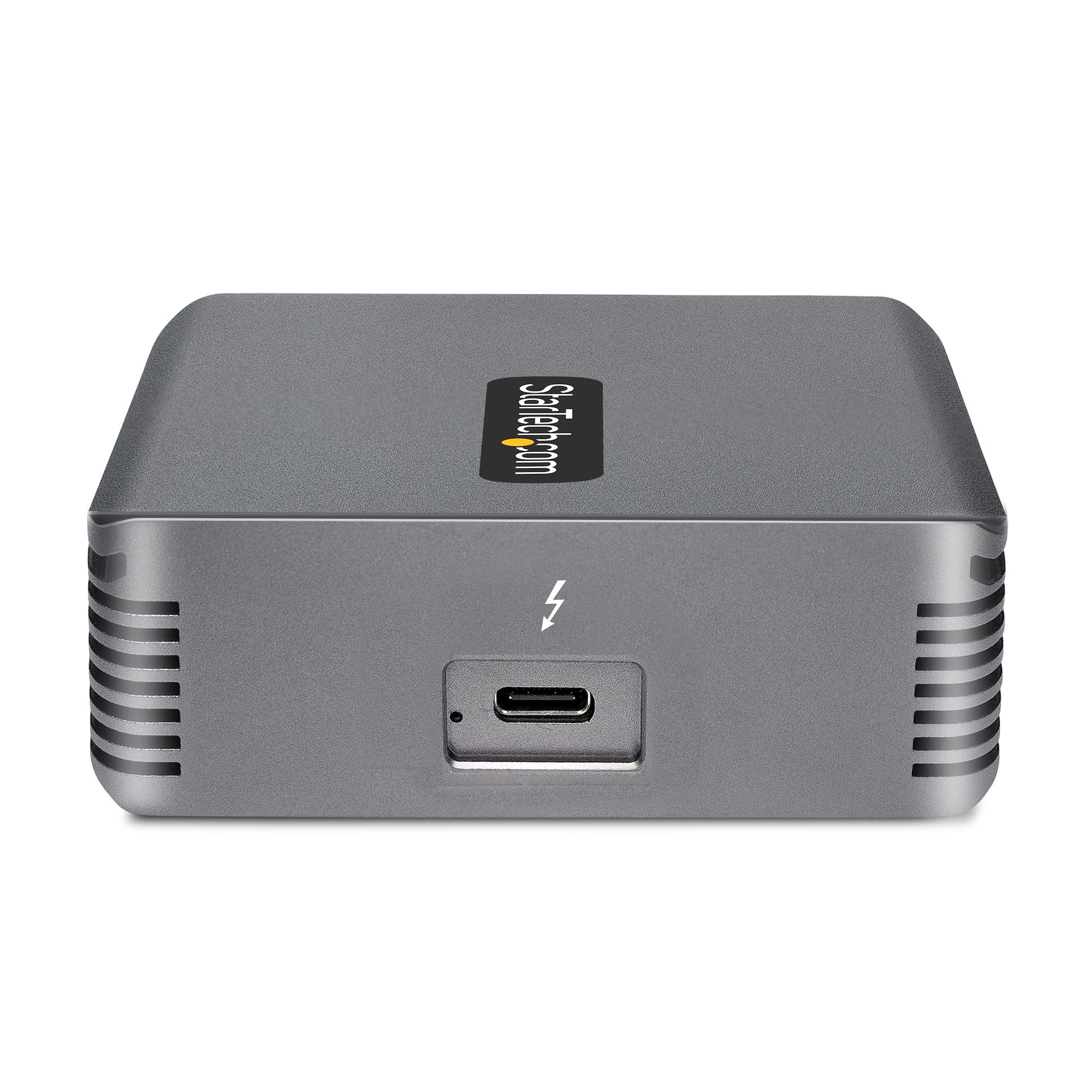

Thunderbolt 3 to Ethernet Adapter, 10GbE - Multi-Gigabit, Thunderbolt 3 to RJ45 Network Adapter - 10GBASE-T/5-2.5GBASE-T NIC
10G Network Adapter
Model TB310G2EAN 065030897723
37 specifications
- Speed40000 Mbit/s
- ConnectivityWired
- Weight500 g
- ColourGrey
- InternalNo
- Operating relative humidity (H-H)20 - 80%
Overview
- Speed
- 40000 Mbit/s
- Connectivity
- Wired
- Weight
- 500 g
- Colour
- Grey
- Internal
- No
- Operating relative humidity (H-H)
- 20 - 80%
- Brand
- StarTech.com
- Category
- Network Card
- Model
- TB310G2
- Part number
- TB310G2
- EAN / UPC
- 065030897723
- Also known as
- StarTech.com Thunderbolt 3 to Ethernet Adapter, 10GbE - Multi-Gigabit, Thunderbolt 3 to RJ45 Network Adapter - 10GBASE-T/5-2.5GBASE-T NIC - 10G Network Adapter
Specifications
37 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| Interface | Ethernet |

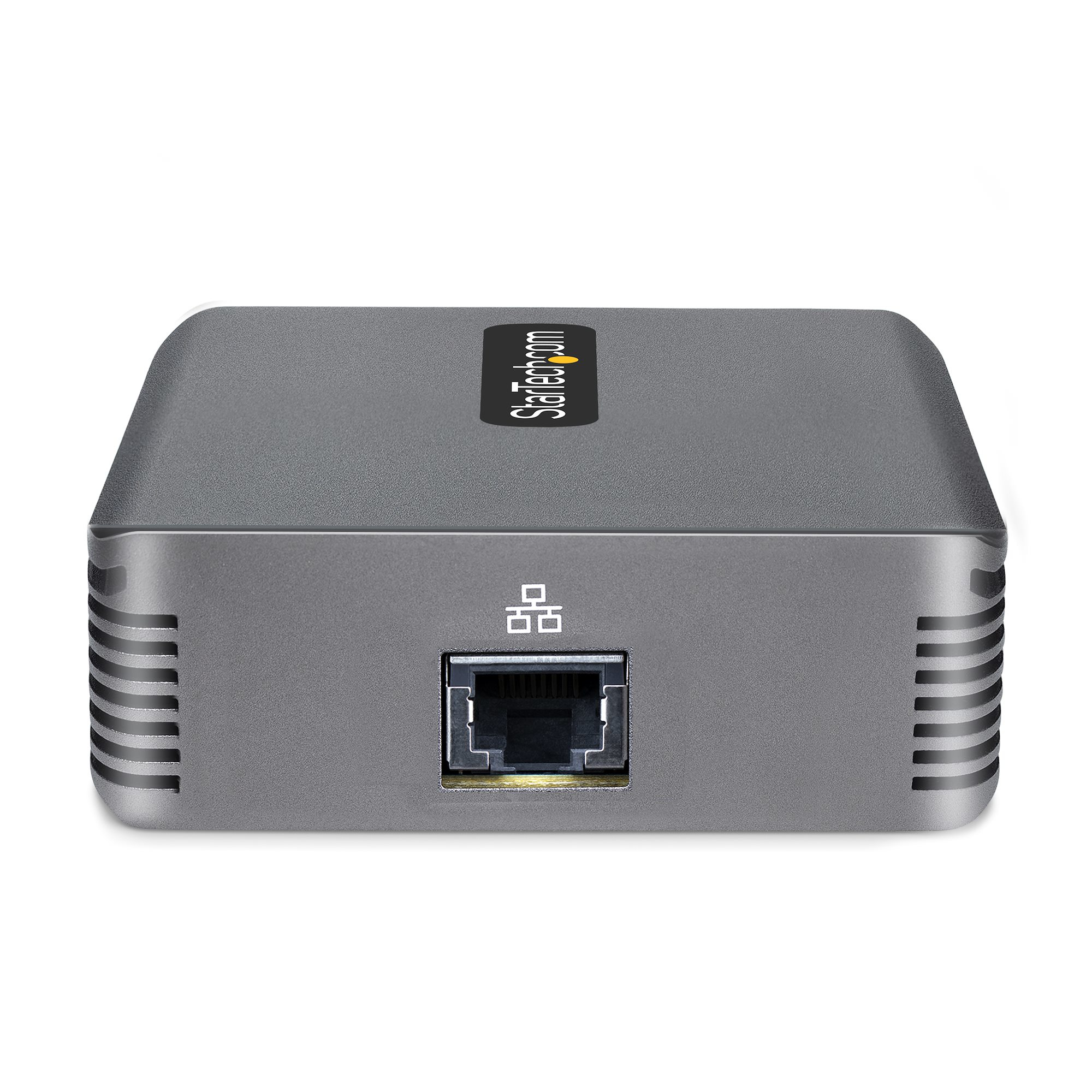

| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 40000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC |
| Product colour | Grey |

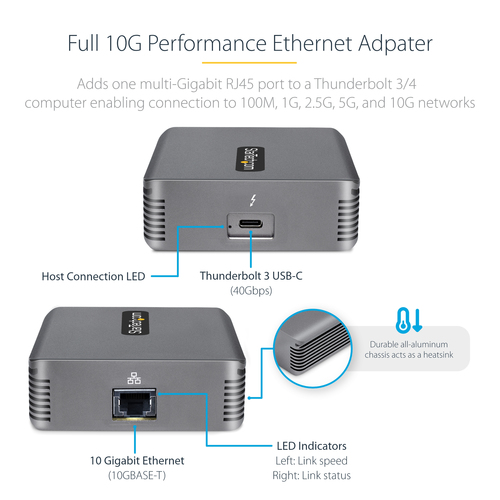

| LED indicators | Activity, Link |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 108 mm |
| Depth | 75 mm |
| Height | 29 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 170 mm |
| Package depth | 134 mm |
| Package height | 74 mm |
| Package weight | 700 g |
Packaging content
| Specification | Value |
|---|---|

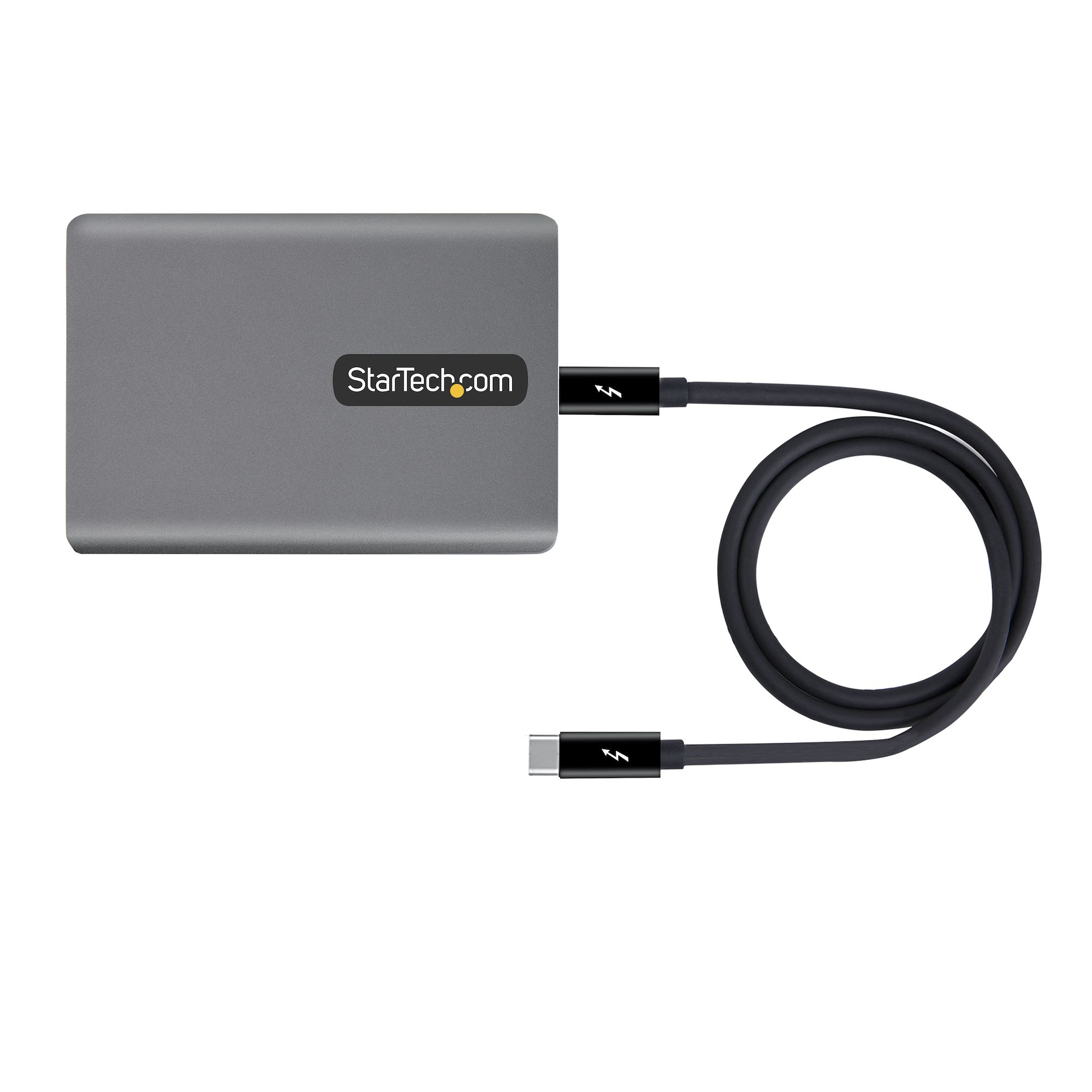

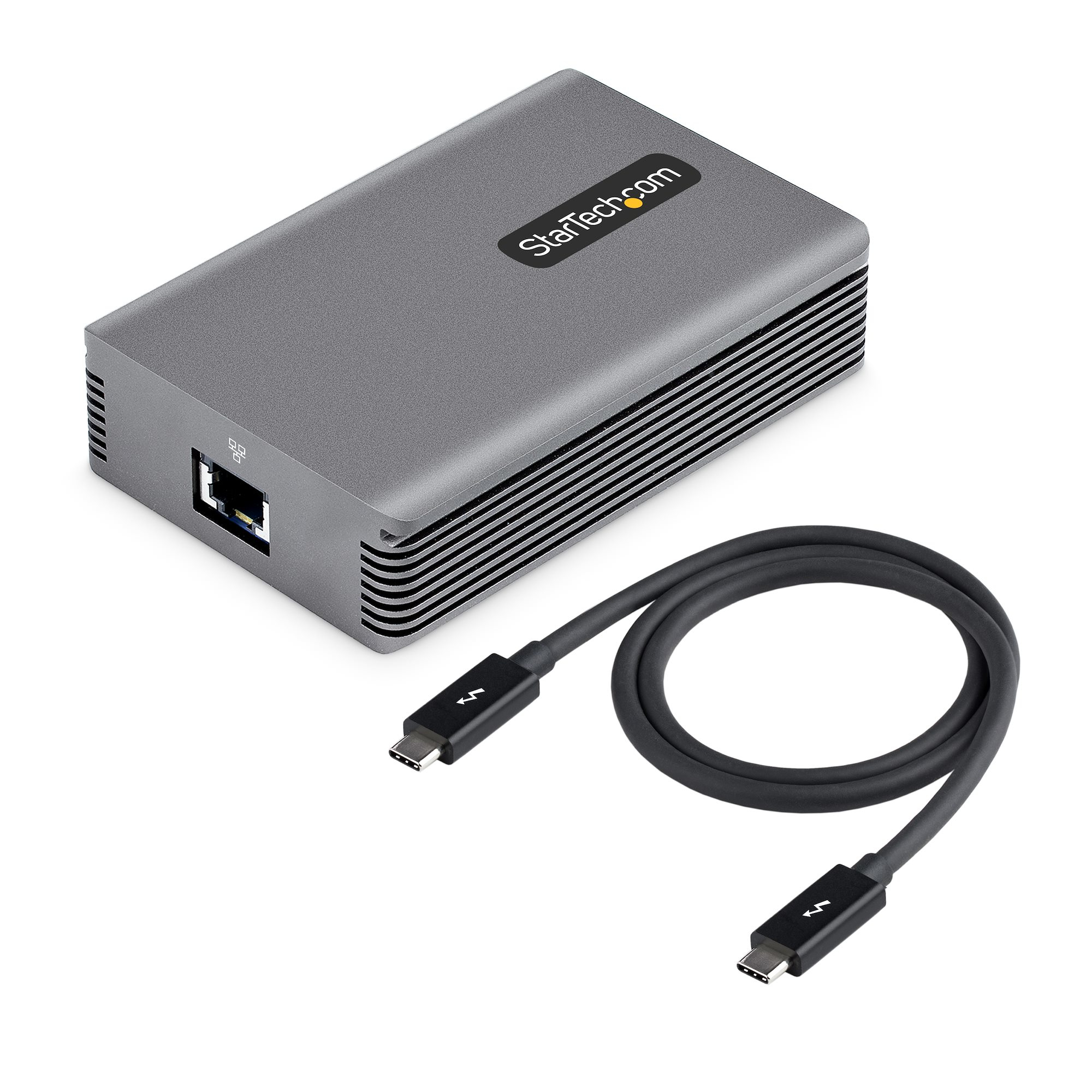

| Cables included | Thunderbolt |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 318 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 313 mm |
| Products per master (outer) case | 20 pc(s) |
Other features
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Cable length | 0.7 m |
