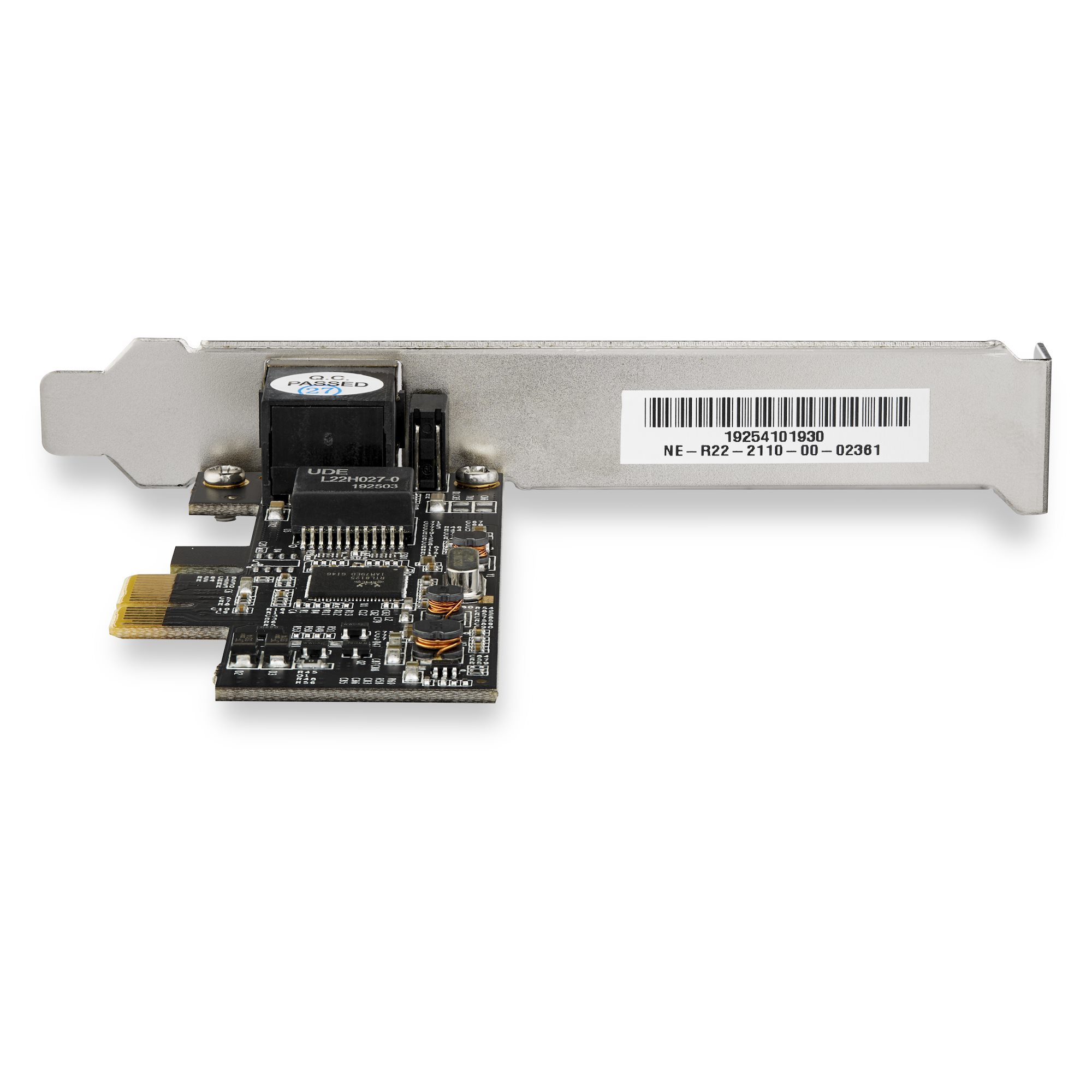

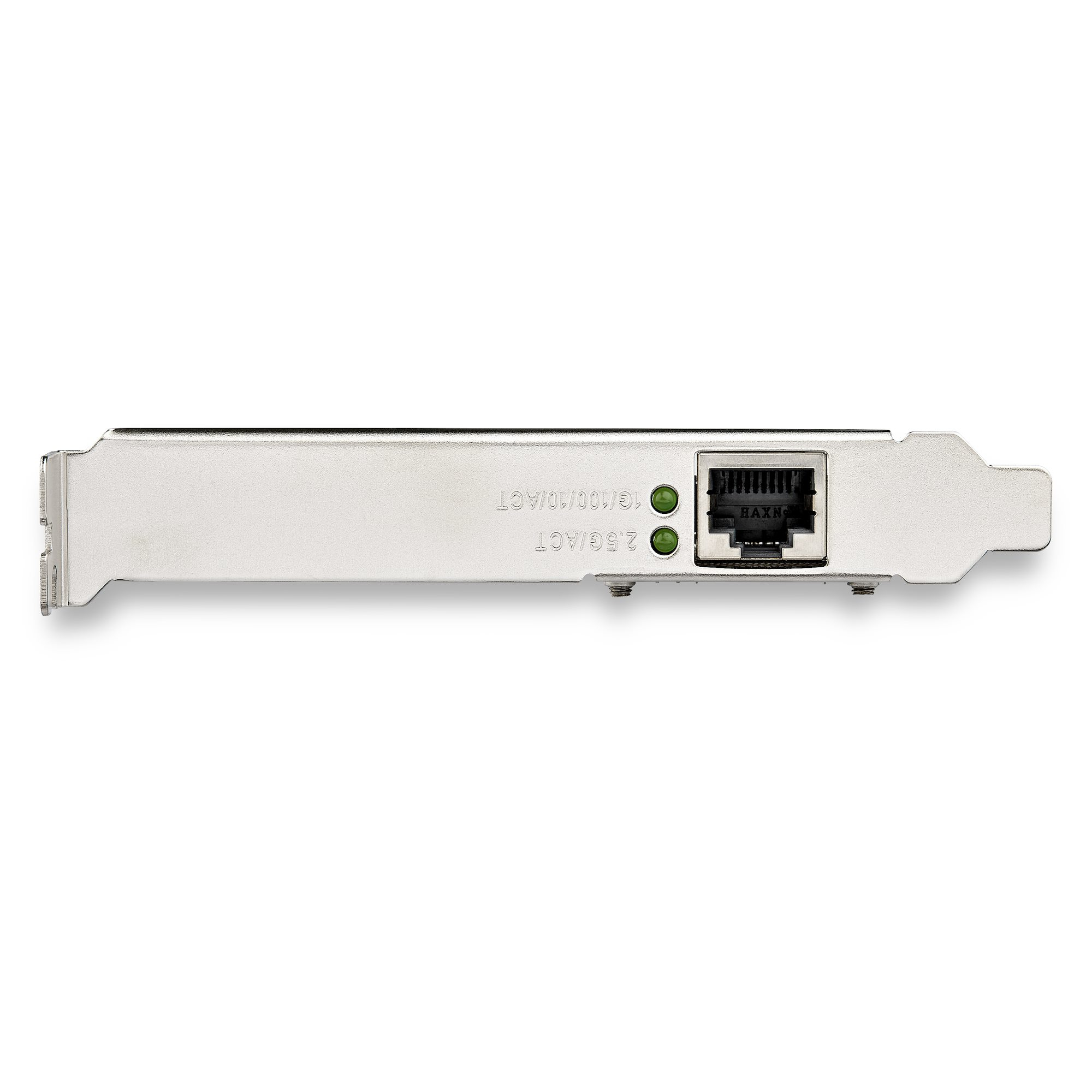

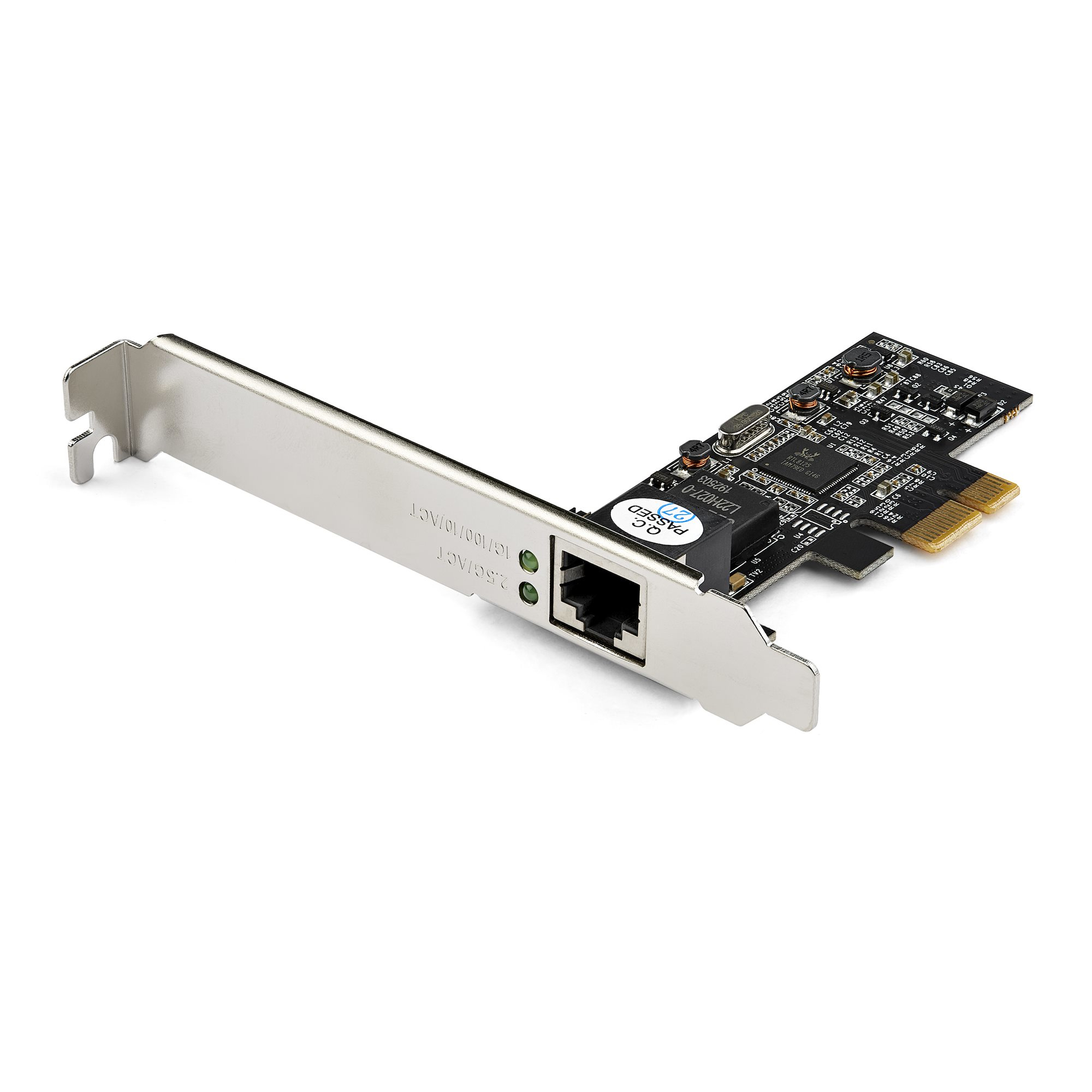

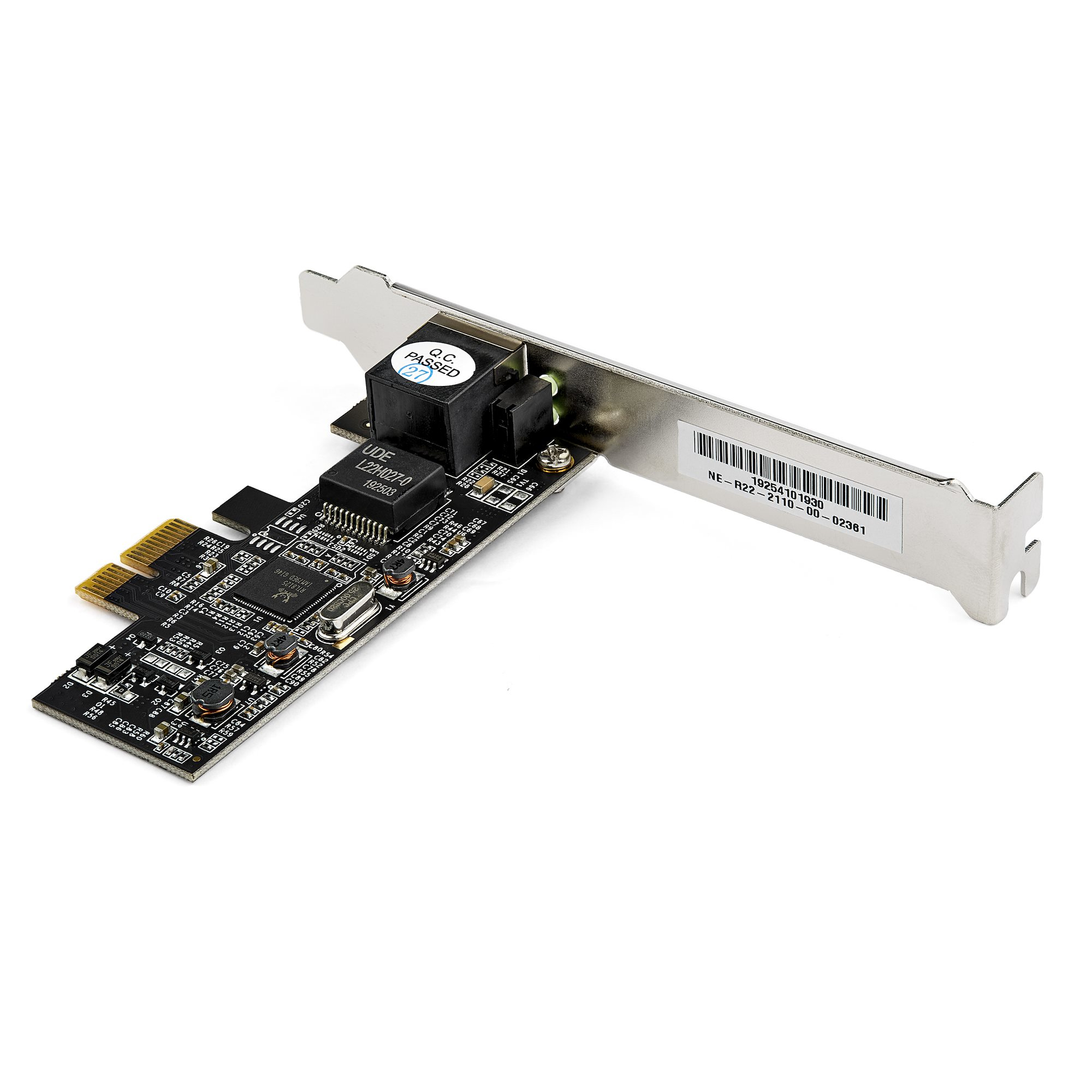

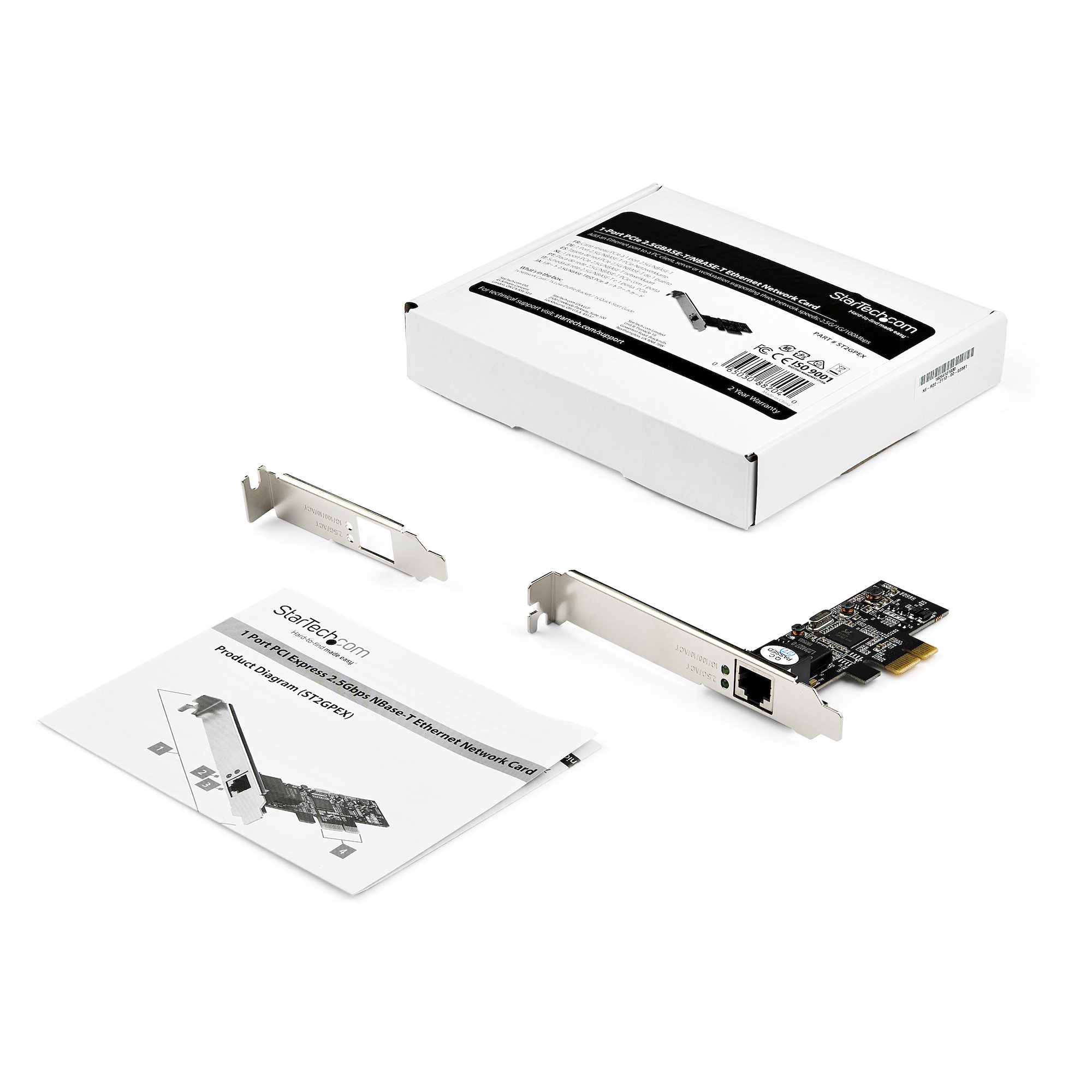

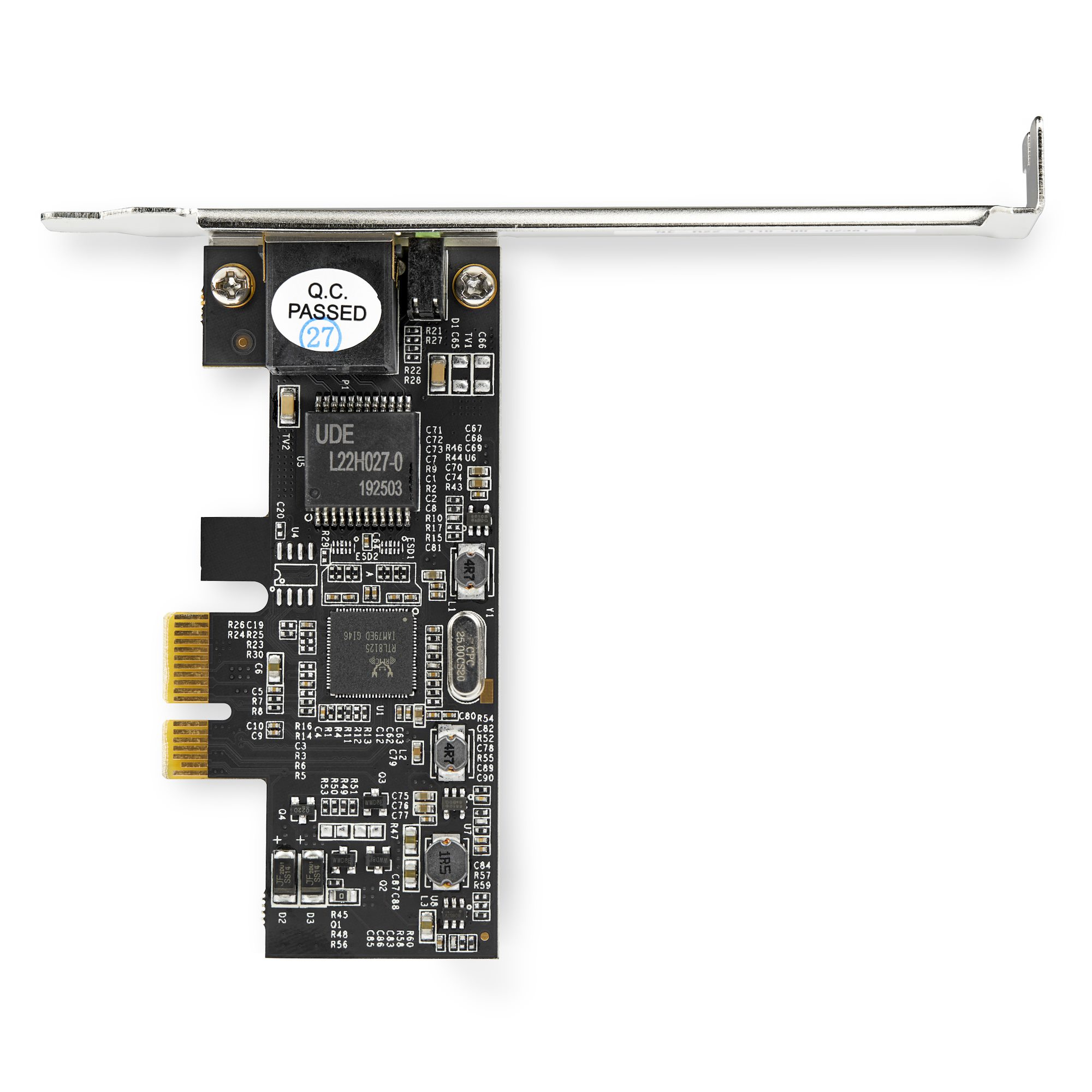

2.5Gbps 2.5GBASE-T PCIe Network Card
Model ST2GPEXEAN 065030882040
38 specifications
- Speed2500 Mbit/s
- ConnectivityWired
- Weight138 g
- ColourBlack
- InternalYes
- Operating temperature (T-T)5 - 50 °C
Overview
- Speed
- 2500 Mbit/s
- Connectivity
- Wired
- Weight
- 138 g
- Colour
- Black
- Internal
- Yes
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Network Card
- Model
- ST2GPEX
- Part number
- ST2GPEX
- EAN / UPC
- 065030882040
- Also known as
- StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card
Specifications
38 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2500 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black |
| Chipset | Realtek RTL8125 |
| LED indicators | Yes |
| Certification | CE, FCC, REACH |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 80 mm |
| Height | 20 mm |
| Weight | 138 g |
Packaging data
| Specification | Value |
|---|---|
| Low-profile bracket | Yes |
| Package width | 142 mm |
| Package depth | 171 mm |
| Package height | 30 mm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 308 mm |
| Master (outer) case length | 592 mm |
| Master (outer) case height | 362 mm |
| Products per master (outer) case | 80 pc(s) |
Other features
| Specification | Value |
|---|---|
| Quick start guide | Yes |
