StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC
Model ST2000SPEXIEAN 7426901040076
49 specifications
- Speed2000 Mbit/s
- ConnectivityWired
- Weight80 g
- ColourAluminium, Black
- InternalYes
- Operating temperature (T-T)0 - 50 °C
Overview
- Speed
- 2000 Mbit/s
- Connectivity
- Wired
- Weight
- 80 g
- Colour
- Aluminium, Black
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Network Card
- Model
- ST2000SPEXI
- Part number
- ST2000SPEXI
- EAN / UPC
- 7426901040076, 012300424721, 044113194928, 065030852739 +10 more
- Also known as
- StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC
Specifications
49 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 2.1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| VLAN tagging | Yes |
| LAN controller | Intel® I350-AM2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | Server |
| Product colour | Aluminium, Black |
| Chipset | Intel - I350-AM2 |
| LED indicators | Activity, Link |
| Mean time between failures (MTBF) | 432400 h |
| Certification | CE, FCC, REACH |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 19 mm |
| Depth | 67 mm |
| Height | 121 mm |
| Weight | 80 g |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 32 mm |
| Package weight | 165 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 318 mm |
| Master (outer) case length | 590 mm |
| Master (outer) case height | 364 mm |
| Products per master (outer) case | 80 pc(s) |
Other features
| Specification | Value |
|---|---|
| Link/Act LED | Yes |
| Power LED | Yes |
Compare StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC

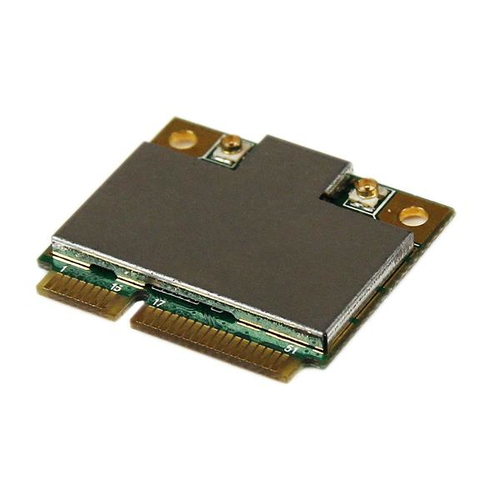

Compare any products- StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC vsStarTech.com Mini PCI Express Wireless N Card - 300Mbps Mini PCIe 802.11b/g/n WiFi Adapter - 2T2RCompare specs
- StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC vsStarTech.com USB100BT network card Ethernet 100 Mbit/sCompare specs

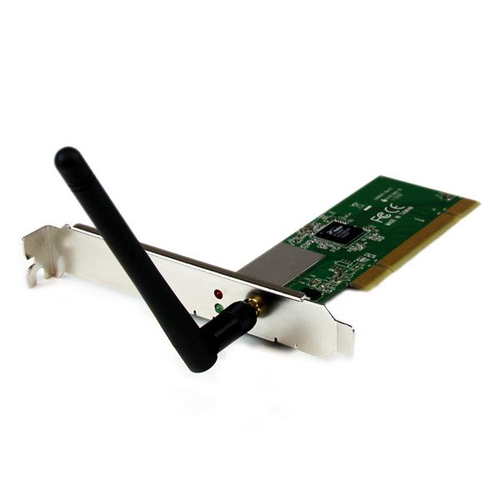

- StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC vsStarTech.com PCI Wireless N Card - 150Mbps 802.11b/g/n Network Adapter Card – 1T1R 2dBiCompare specs
- StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC vsStarTech.com Mini USB Bluetooth 4.0 Adapter - 50m (165ft) Class 1 EDR Wireless DongleCompare specs

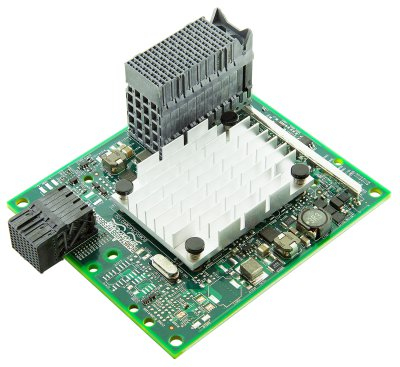

- StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC vsLenovo 88Y5920 network card Internal Ethernet 10000 Mbit/sCompare specs

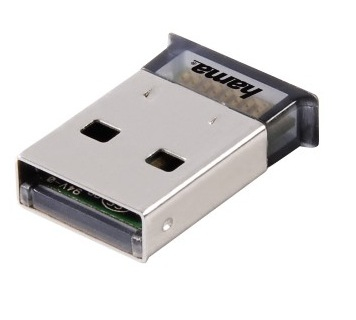

- StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC vsHama Bluetooth USB v4.0 + EDRCompare specs

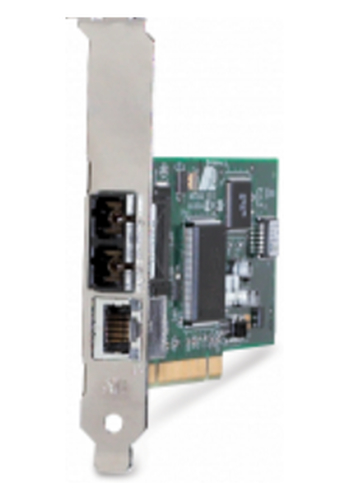

- StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC vsAllied Telesis AT-2701FTX/SC-20 network card Internal Ethernet 100 Mbit/sCompare specs

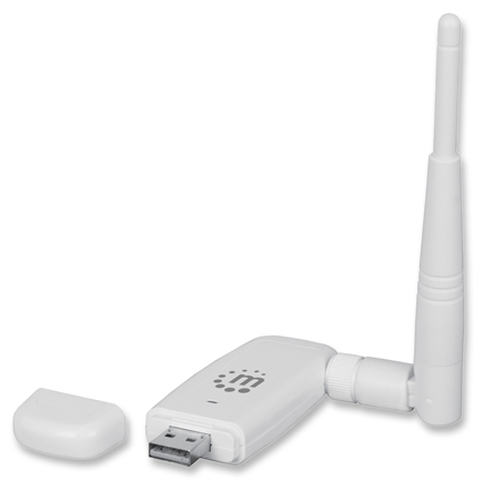

- StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC vsManhattan Range+ 150NCompare specs
