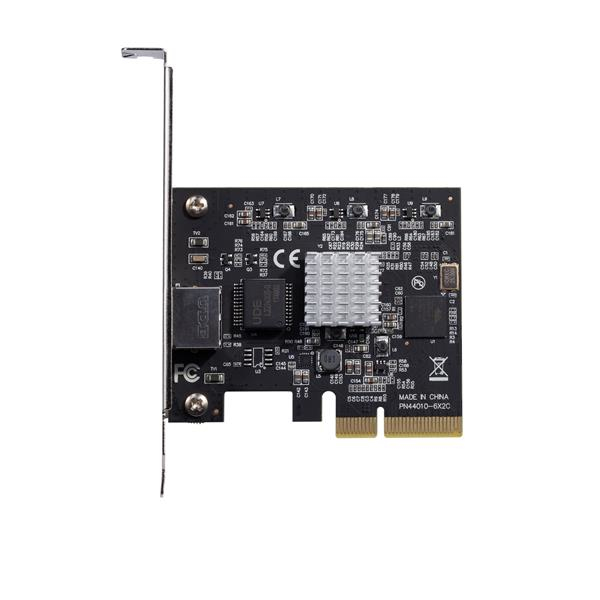

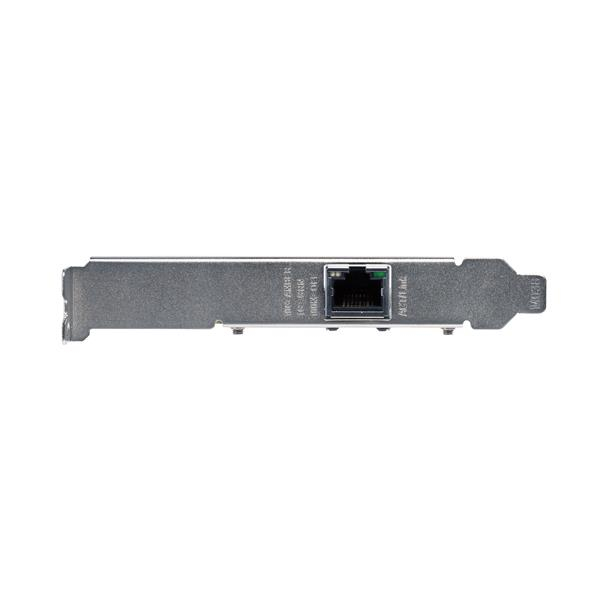

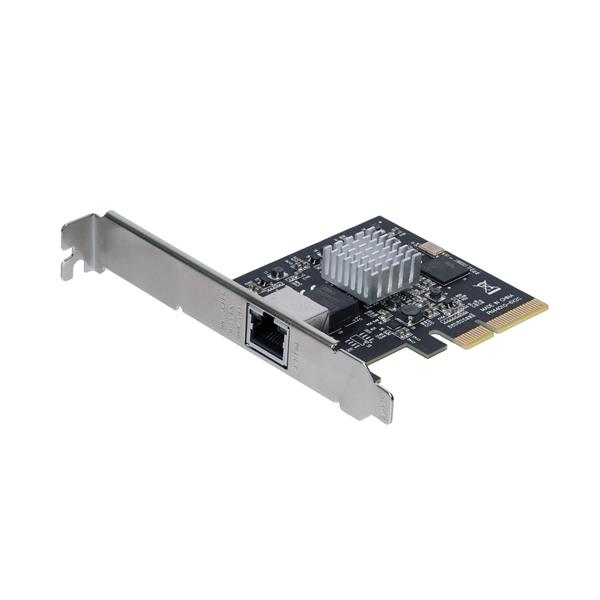

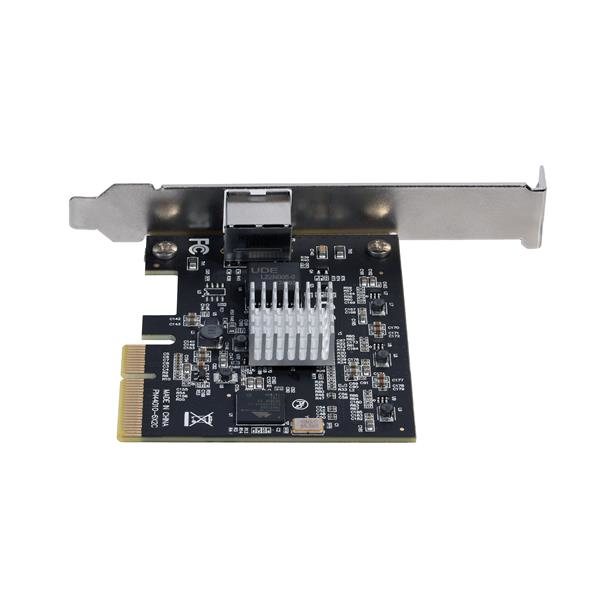

StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card

StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card

Model ST10GSPEXNBEAN 065030864213

43 specifications
  • Speed10000 Mbit/s
  • ConnectivityWired
  • Weight100 g
  • ColourBlack, Stainless steel
  • InternalYes
  • Operating temperature (T-T)5 - 50 °C
See all specifications

Overview

Speed
10000 Mbit/s
Connectivity
Wired
Weight
100 g
Colour
Black, Stainless steel
Internal
Yes
Operating temperature (T-T)
5 - 50 °C
Brand
StarTech.com
Category
Network Card
Model
ST10GSPEXNB
Part number
ST10GSPEXNB
EAN / UPC
065030864213, 4923133127627, 5057103091027
Also known as
StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card

Specifications

43 specifications in 10 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
PCI version2.0

Network

Maximum data transfer rate10000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3u
Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Copper ethernet cabling technology10GBASE-T, 100BASE-T, 1000BASE-T
Wi-FiNo
Auto MDIX IEEEYes
Full duplexYes
Jumbo frames16000
Jumbo frames supportYes
VLAN taggingYes
iSCSI supportYes

Design

InternalYes
Product colourBlack, Stainless steel
ChipsetTehuti - TN4010, Marvell - 88X3310P
LED indicatorsActivity, Link, Speed
CertificationCE, FCC

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width120 mm
Depth83 mm
Height21 mm
Weight100 g

Packaging data

Drivers includedYes
Low-profile bracketYes
Package width172 mm
Package depth144 mm
Package height30 mm
Package weight150 g

Packaging content

ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176990
