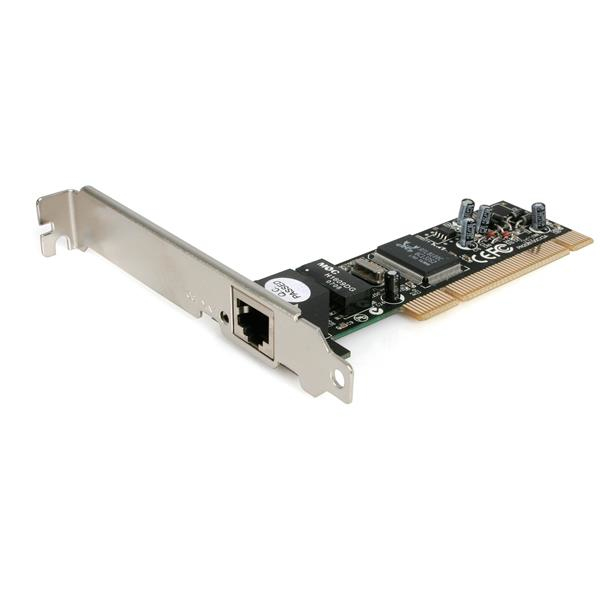

StarTech.com 1 Port PCI 10/100 Mbps Ethernet Network Adapter Card

StarTech.com 1 Port PCI 10/100 Mbps Ethernet Network Adapter Card

Model ST100SEAN 5554442338283

38 specifications
  • Speed200 Mbit/s
  • ConnectivityWired
  • Weight40 g
  • InternalYes
  • Power consumption (typical)1.5 W
  • Operating temperature (T-T)0 - 55 °C
See all specifications

Overview

Speed
200 Mbit/s
Connectivity
Wired
Weight
40 g
Internal
Yes
Power consumption (typical)
1.5 W
Operating temperature (T-T)
0 - 55 °C
Brand
StarTech.com
Category
Network Card
Model
ST100S
Part number
ST100S
EAN / UPC
5554442338283, 065030780155, 132018277133, 163120571628 +8 more
Also known as
StarTech.com 1 Port PCI 10/100 Mbps Ethernet Network Adapter Card

Specifications

38 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI
InterfaceEthernet
Ethernet LAN (RJ-45) ports1

Network

Maximum data transfer rate200 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3u
Ethernet LANYes
Ethernet LAN data rates10,100 Mbit/s
Full duplexYes

Design

InternalYes
Component forPC

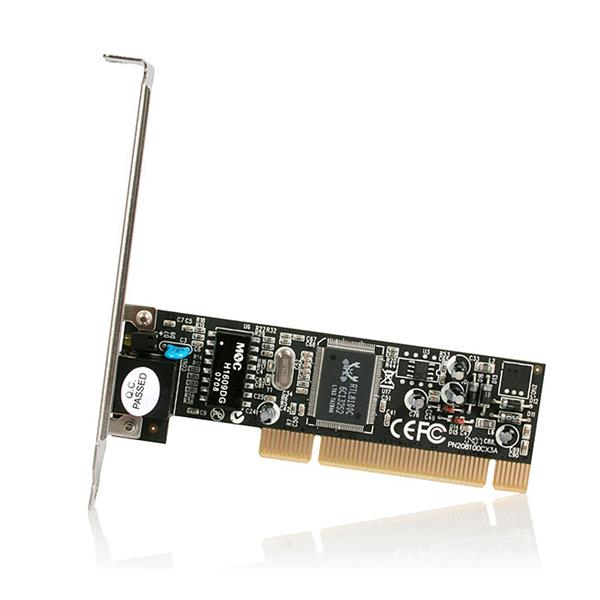

ChipsetRealtek - RTL8100C

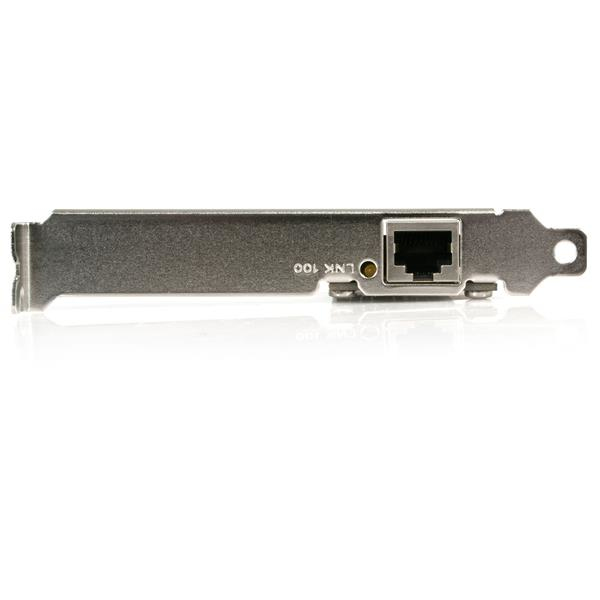

LED indicatorsActivity, LAN, Link
CertificationCE, REACH

Power

Power consumption (typical)1.5 W

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windo
Mac operating systems supportedMac OS 9.0, Mac OS 9.1, Mac OS X 10.0 Cheetah
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width32 mm
Depth120 mm
Height120 mm
Weight40 g

Packaging data

Drivers includedYes

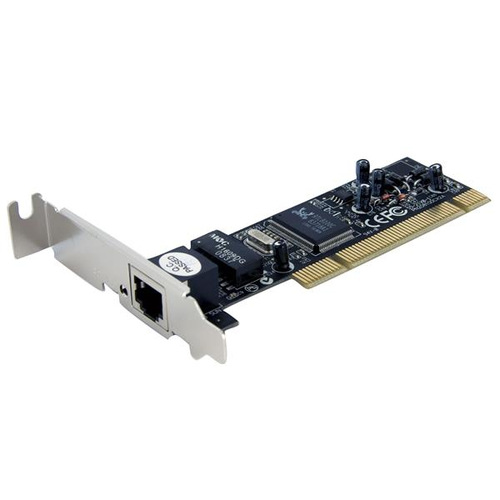

Low-profile bracketYes
Quantity per pack1 pc(s)
Package width170 mm
Package depth143 mm
Package height29 mm
Package weight133 g

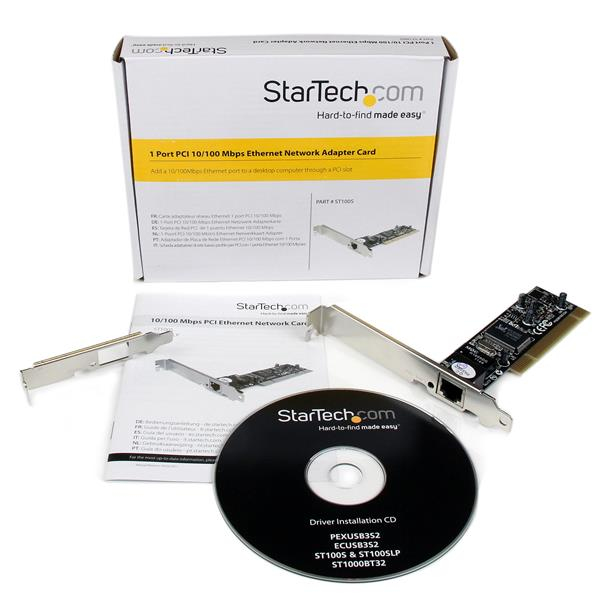

Packaging content

ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176990

Other features

Compliance industry standardsIEEE 802.3/802.3u
Ports quantity1
I/O ports1 x RJ45
