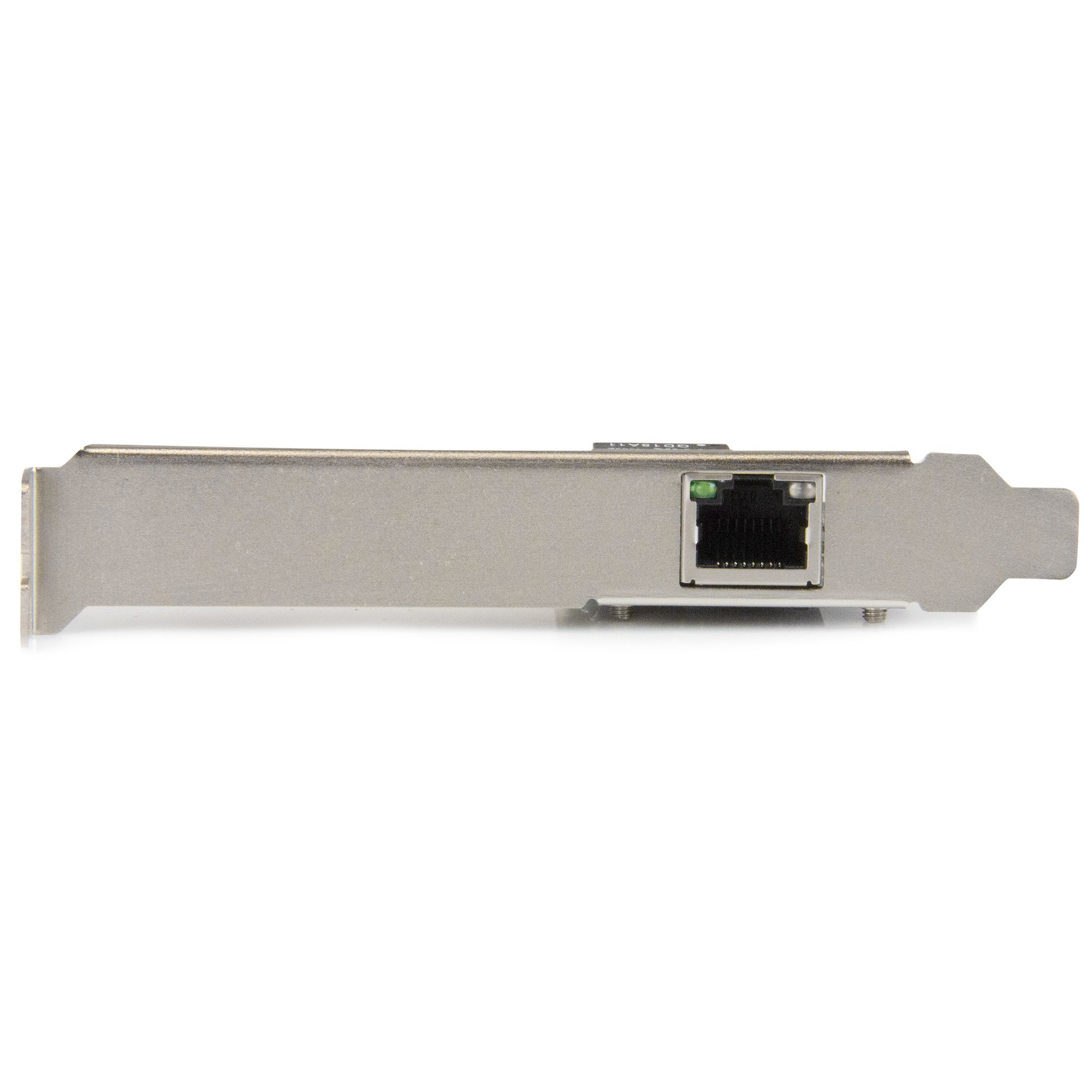

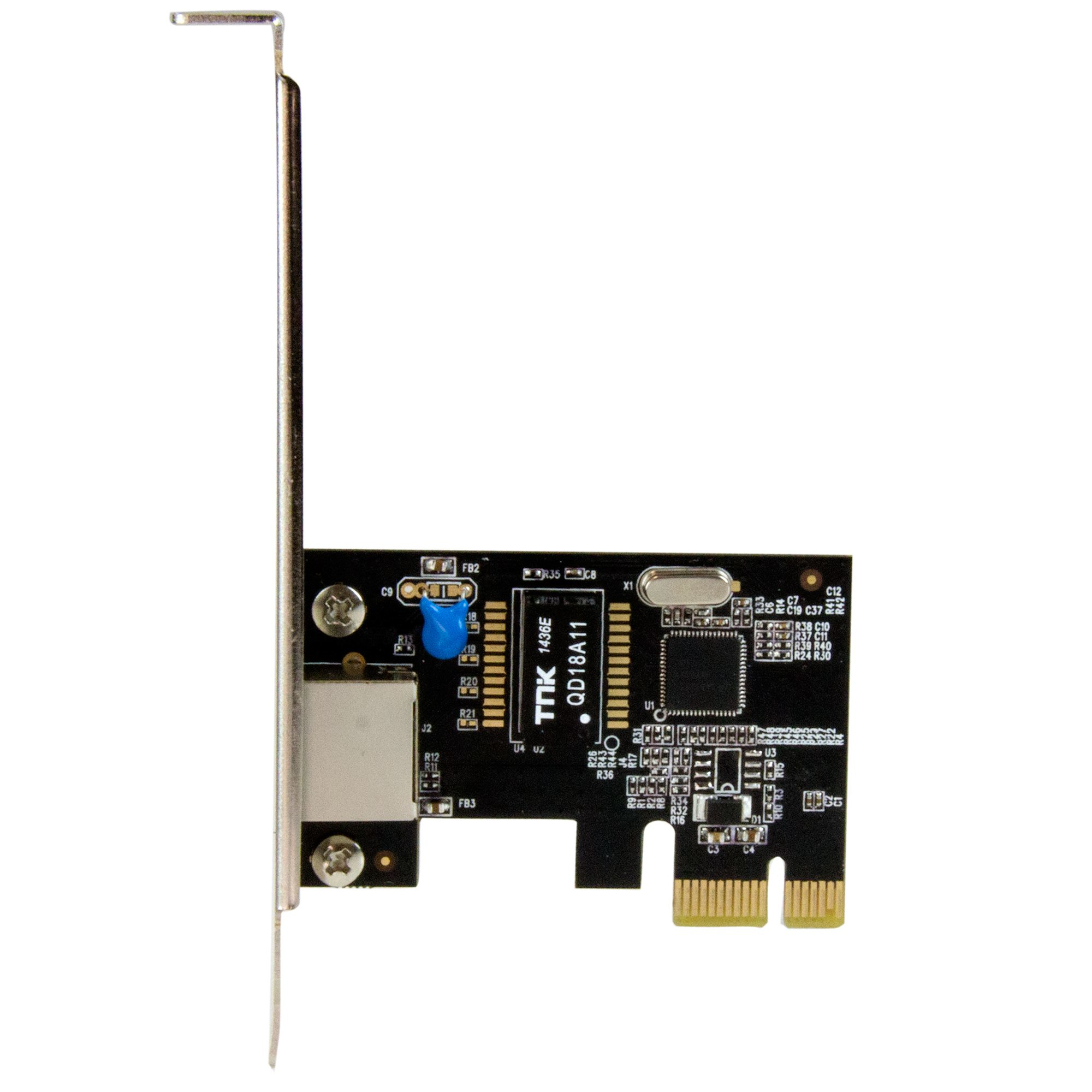

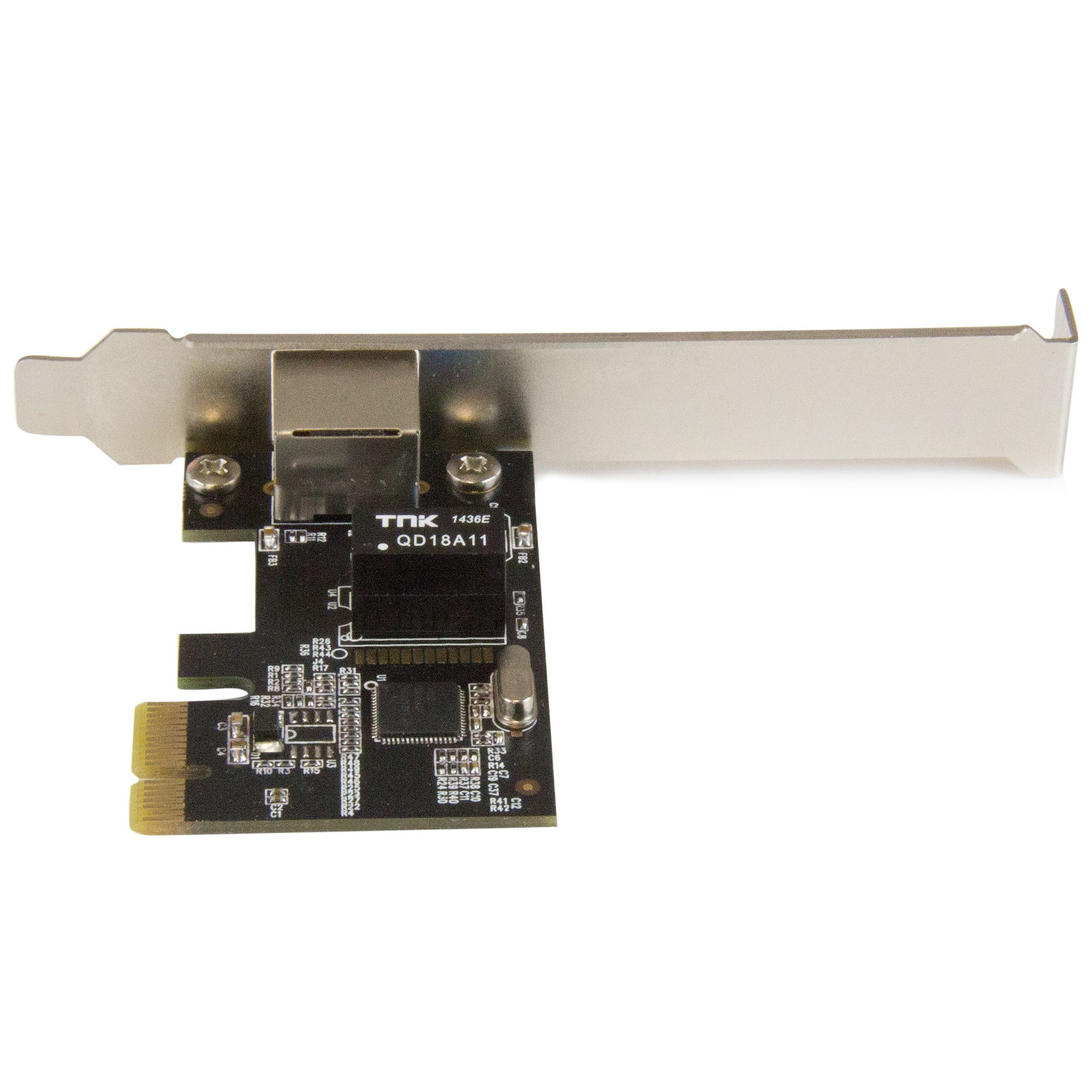

1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
Model ST1000SPEXIEAN 065030861038
43 specifications
- Speed2000 Mbit/s
- ConnectivityWired
- Weight38 g
- ColourBlack, Metallic
- InternalYes
- Operating temperature (T-T)5 - 50 °C
Overview
- Speed
- 2000 Mbit/s
- Connectivity
- Wired
- Weight
- 38 g
- Colour
- Black, Metallic
- Internal
- Yes
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Network Card
- Model
- ST1000SPEXI
- Part number
- ST1000SPEXI
- EAN / UPC
- 065030861038, 4058829177829, 5054629815915, 7426801267290
- Also known as
- StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
Specifications
43 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Jumbo frames support | Yes |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Product colour | Black, Metallic |
| Chipset | Intel® I210-AT |
| LED indicators | Activity |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpri |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66 mm |
| Depth | 120 mm |
| Height | 18 mm |
| Weight | 38 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 143 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Package weight | 100 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 306 mm |
| Master (outer) case length | 592 mm |
| Master (outer) case height | 368 mm |
| Products per master (outer) case | 80 pc(s) |
