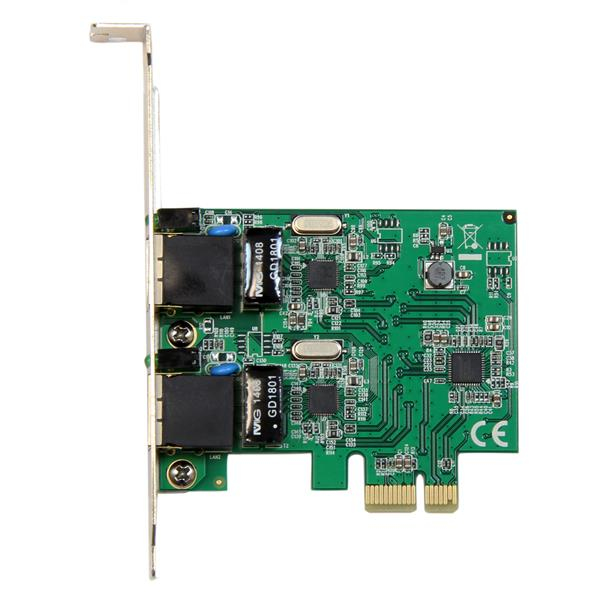

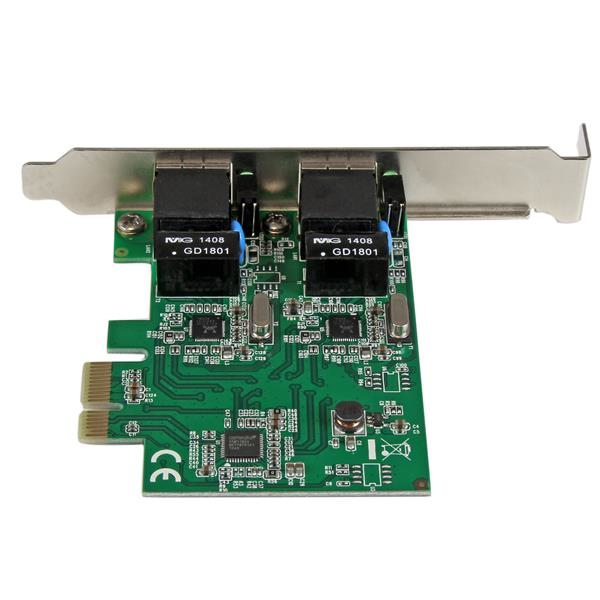

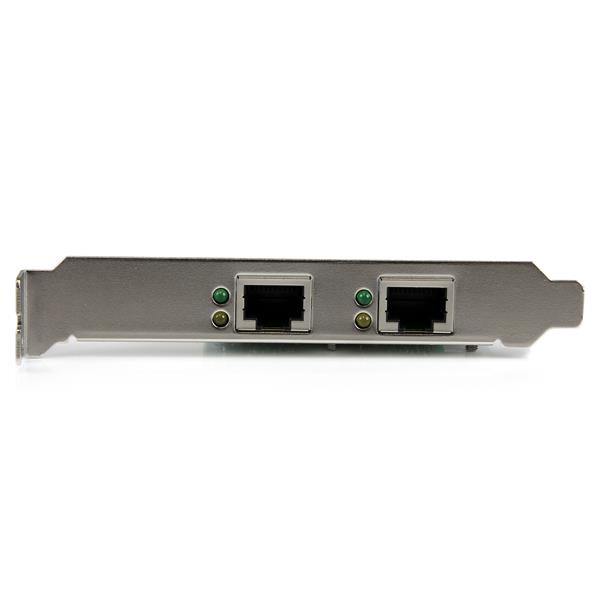

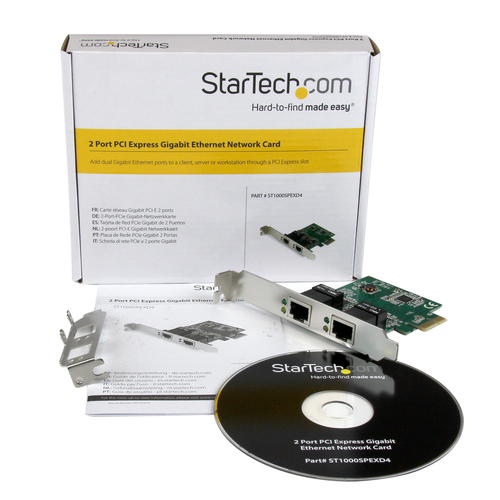

StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
StarTech.com

Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC

Model ST1000SPEXD4EAN 5706998940438

41 specifications
  • Speed2000 Mbit/s
  • ConnectivityWired
  • Weight51 g
  • InternalYes
  • Operating temperature (T-T)0 - 70 °C
  • Width18 mm
See all specifications

Overview

Speed
2000 Mbit/s
Connectivity
Wired
Weight
51 g
Internal
Yes
Operating temperature (T-T)
0 - 70 °C
Width
18 mm
Brand
StarTech.com
Category
Network Card
Model
ST1000SPEXD4
Part number
ST1000SPEXD4
EAN / UPC
5706998940438, 065030859356, 650308593560, 686503463551 +6 more
Also known as
StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC

Specifications

41 specifications in 11 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports2
PCI version2.0

Network

Maximum data transfer rate2000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Cabling technology10/100/1000BaseT(X)
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Full duplexYes
Jumbo frames9000
Jumbo frames supportYes
VLAN taggingYes

Design

InternalYes
ChipsetRealtek - RTL8111E, Asmedia - ASM1182E
LED indicatorsActivity, Link
CertificationCE, FCC

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterpr
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)0 - 100 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width18 mm
Depth92.6 mm
Height120 mm
Weight51 g

Packaging data

Drivers includedYes
Low-profile bracketYes
Package width170 mm
Package depth143 mm
Package height30 mm
Package weight142 g

Packaging content

ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176990

Other features

Flow control supportYes
