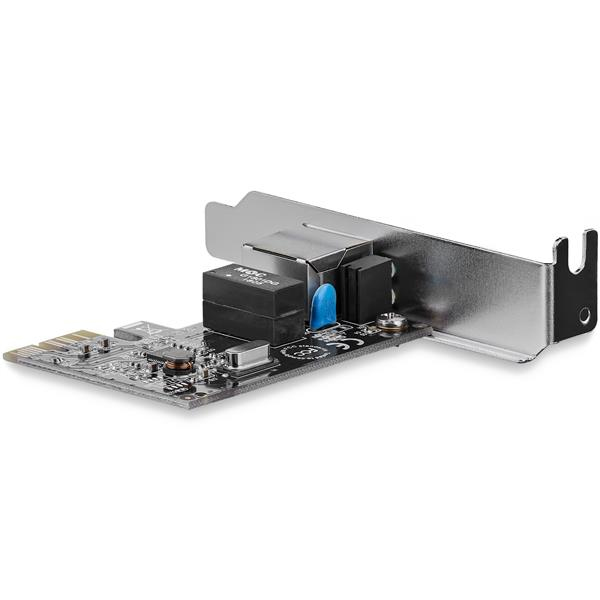

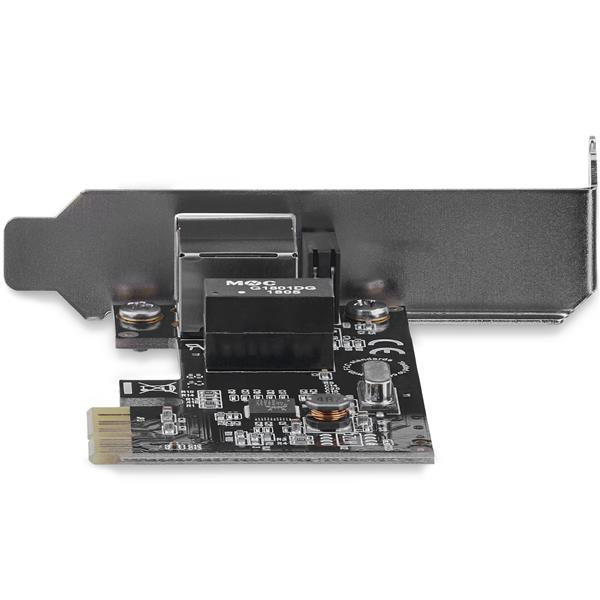

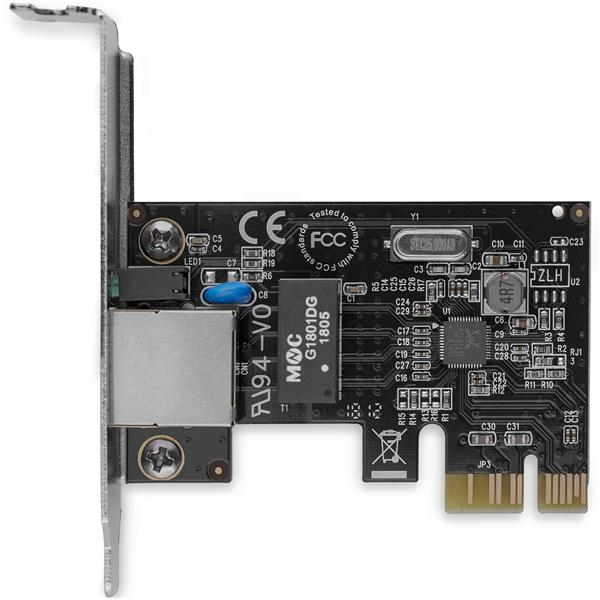

StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile

StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile

Model ST1000SPEX2LEAN 5055851320918

37 specifications
  • Speed1000 Mbit/s
  • ConnectivityWired
  • Weight27 g
  • InternalYes
  • Operating temperature (T-T)0 - 70 °C
  • Width18 mm
See all specifications

Overview

Speed
1000 Mbit/s
Connectivity
Wired
Weight
27 g
Internal
Yes
Operating temperature (T-T)
0 - 70 °C
Width
18 mm
Brand
StarTech.com
Category
Network Card
Model
ST1000SPEX2L
Part number
ST1000SPEX2L
EAN / UPC
5055851320918, 065030852265, 380485590969, 650308522652 +8 more
Also known as
StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile

Specifications

37 specifications in 11 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet

Network

Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000BaseT(X)
Auto MDIX IEEEYes
Full duplexYes
Jumbo frames9000
Jumbo frames supportYes
Supported network protocolsCSMA/CD

Design

InternalYes
ChipsetRealtek - RTL8111H

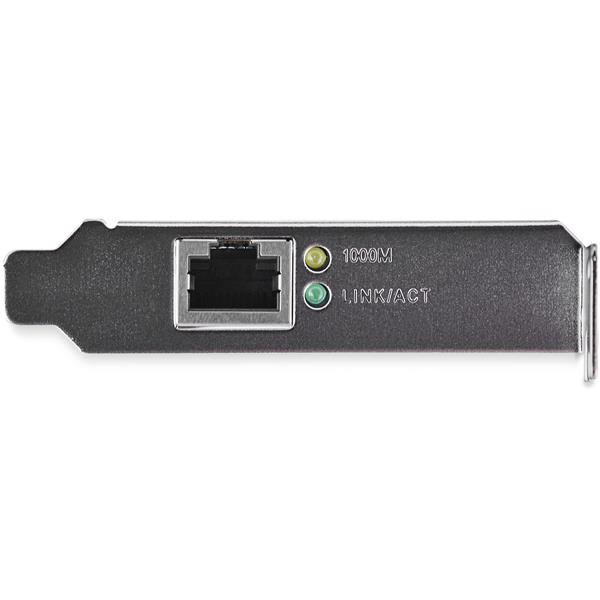

LED indicatorsActivity, Link
CertificationCE, FCC, REACH

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home B
Mac operating systems supportedMac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)0 - 100 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width18 mm
Depth70 mm
Height49 mm
Weight27 g

Packaging data

Package width173 mm
Package depth144 mm
Package height31 mm
Package weight125 g

Packaging content

ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176990

Other features

Link/Act LEDYes
Power LEDYes
