Mini PCI Express Gigabit Ethernet Network Adapter NIC Card - TAA
Model ST1000SMPEXEAN 5054484468608
45 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight6 g
- InternalYes
- Operating temperature (T-T)0 - 55 °C
- Width30 mm
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 6 g
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 55 °C
- Width
- 30 mm
- Brand
- StarTech.com
- Category
- Network Card
- Model
- ST1000SMPEX
- Part number
- ST1000SMPEX
- EAN / UPC
- 5054484468608, 012300424660, 065030846554, 100177417790 +9 more
- Also known as
- StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC Card - TAA
Specifications
45 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Mini PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |

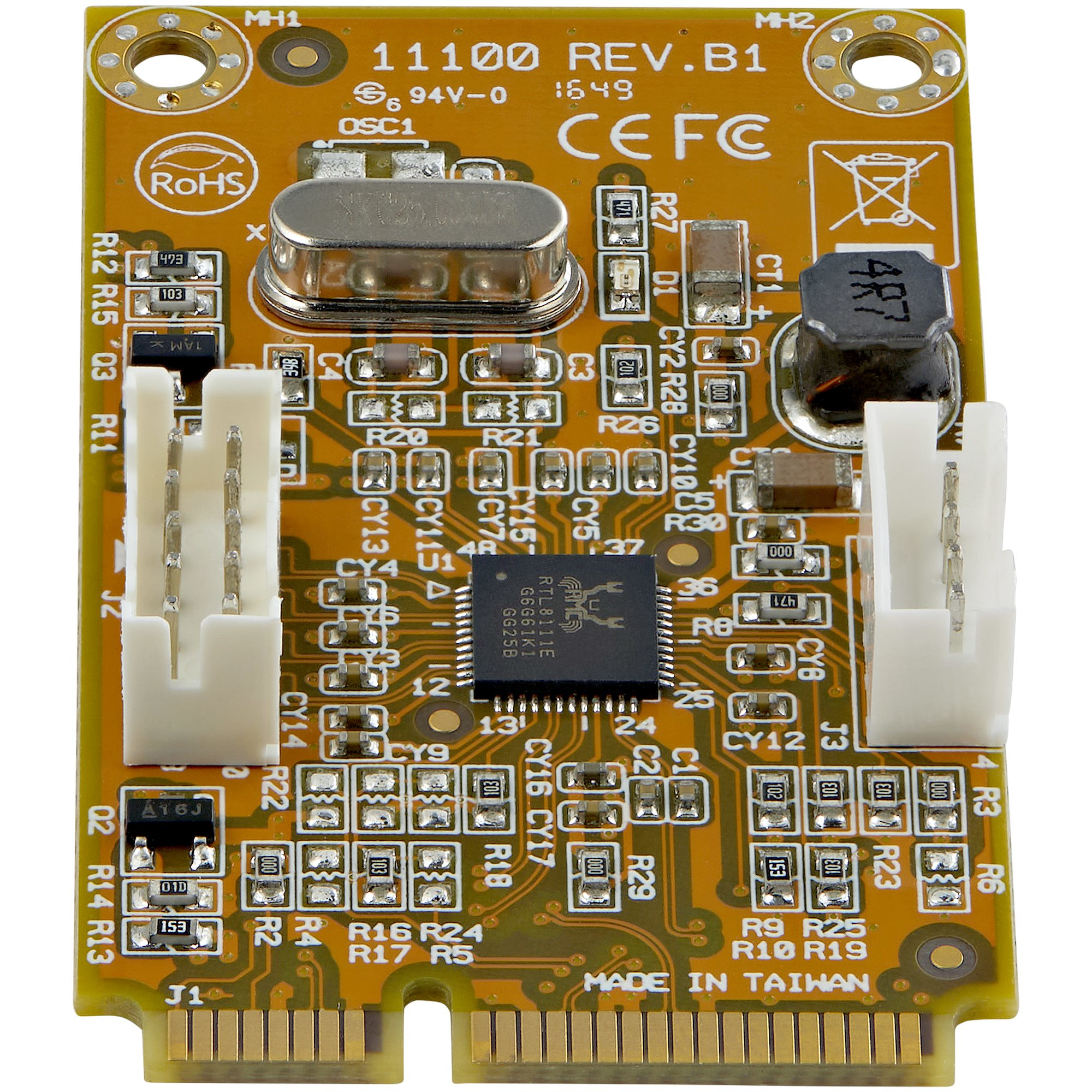

| Chipset | Realtek - RTL8111E |
| LED indicators | Activity, Link |
| Mean time between failures (MTBF) | 482765 h |
| Certification | CE, FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home B |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30 mm |
| Depth | 51 mm |
| Height | 8 mm |
| Weight | 6 g |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Quantity per pack | 1 pc(s) |
| Package width | 144 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 150 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 446 mm |
| Master (outer) case length | 524 mm |
| Master (outer) case height | 346 mm |
| Products per master (outer) case | 80 pc(s) |
Other features
| Specification | Value |
|---|---|
| Flow control support | Yes |
