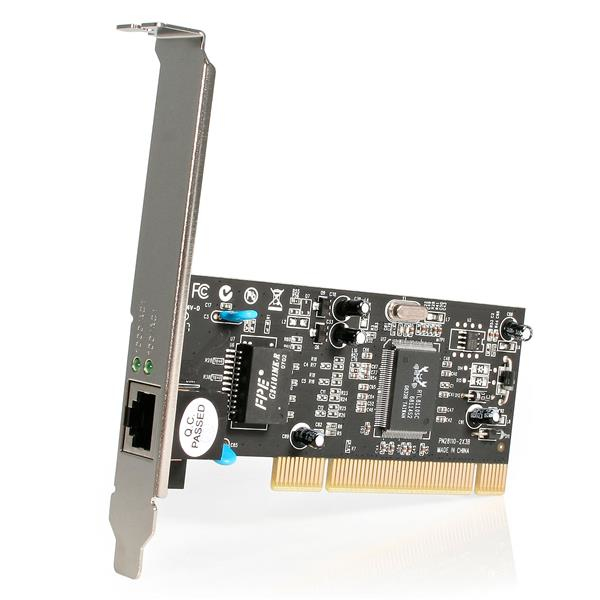

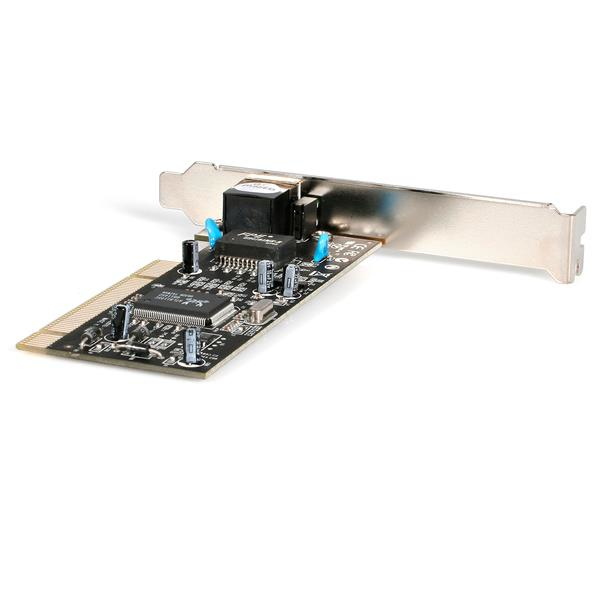

StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
StarTech.com

1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card

Model ST1000BT32EAN 851975700682

39 specifications
  • Speed1000 Mbit/s
  • ConnectivityWired
  • Weight53 g
  • InternalYes
  • Mac operating systems supportedMac OS X 10.4 Tiger
  • Operating temperature (T-T)0 - 55 °C
See all specifications

Overview

Speed
1000 Mbit/s
Connectivity
Wired
Weight
53 g
Internal
Yes
Mac operating systems supported
Mac OS X 10.4 Tiger
Operating temperature (T-T)
0 - 55 °C
Brand
StarTech.com
Category
Network Card
Model
ST1000BT32
Part number
ST1000BT32
EAN / UPC
851975700682, 065030795807, 088021342767, 100177283173 +15 more
Also known as
StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card

Specifications

39 specifications in 10 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
PCI version2.2

Network

Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.11u, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Full duplexYes
Supported network protocolsCSMA/CD
VLAN taggingYes

Design

InternalYes
Component forPC
ChipsetRealtek - RTL8110SC

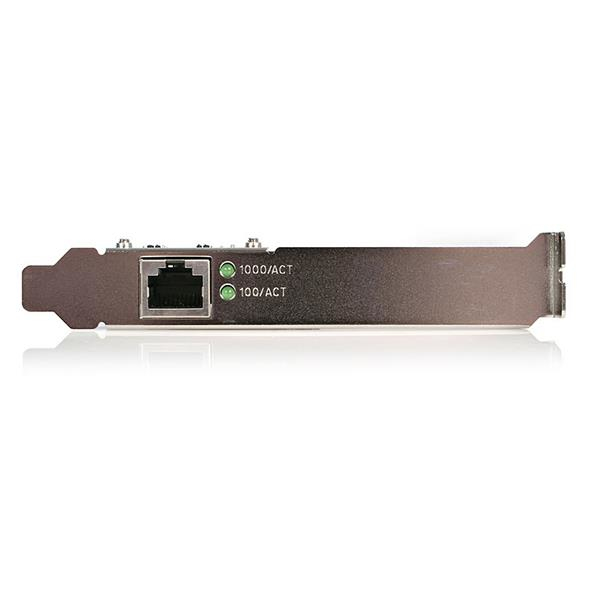

LED indicators10/100/1000 Mbits/sec Link/Activity
Mean time between failures (MTBF)36000 h
CertificationCE, FCC, REACH

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windo
Mac operating systems supportedMac OS X 10.4 Tiger
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)10 - 95%

Weight & dimensions

Width20 mm
Depth123 mm
Height63 mm
Weight53 g

Packaging data

Drivers includedYes
Low-profile bracketYes
Package width170 mm
Package depth143 mm
Package height30 mm
Package weight142 g

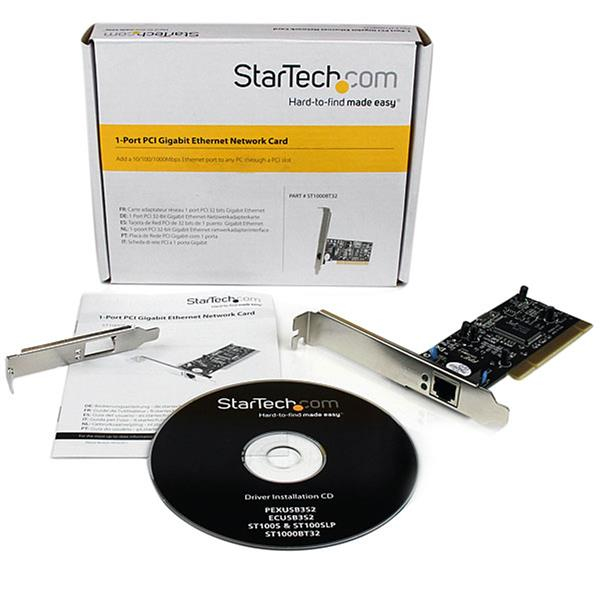

Packaging content

ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176990
