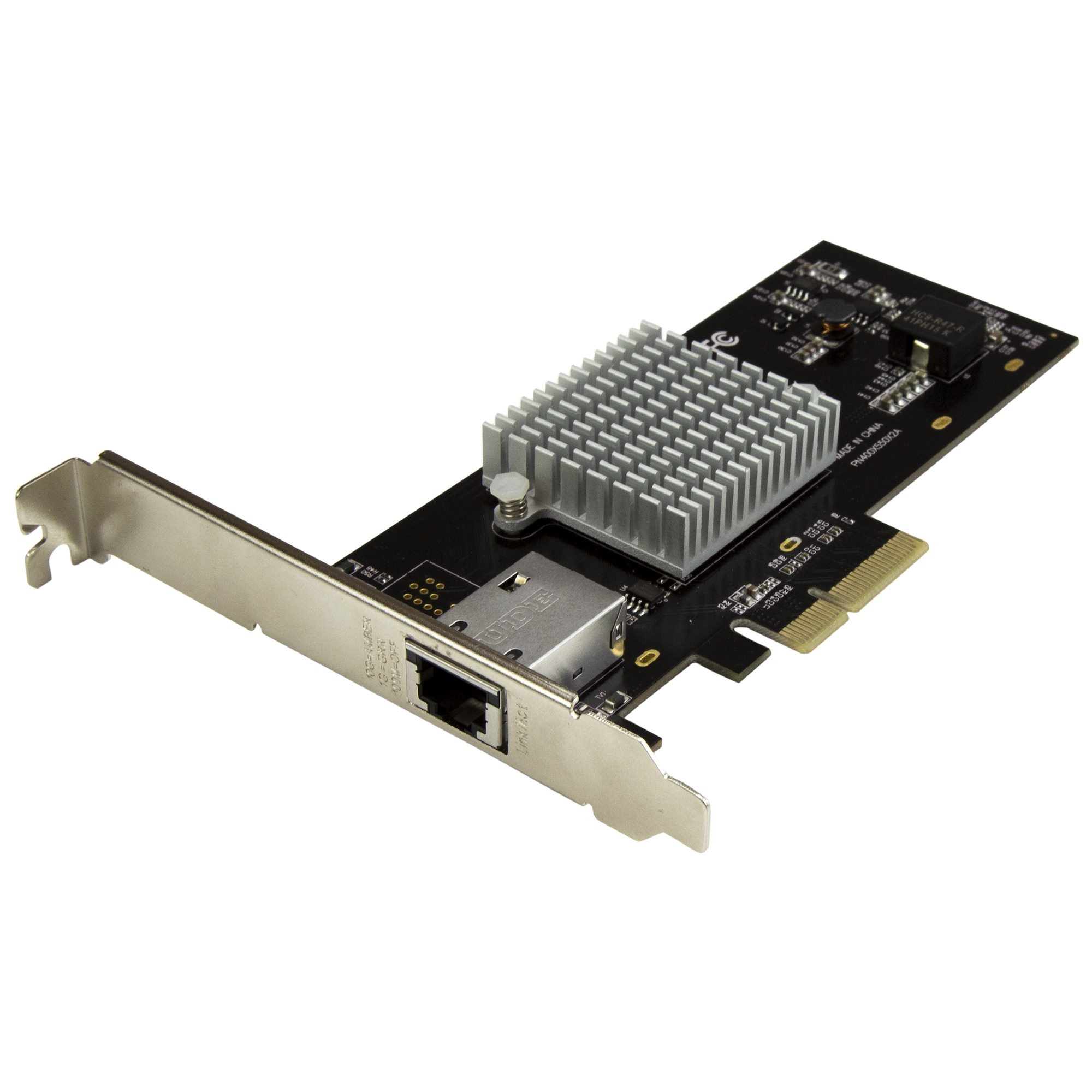

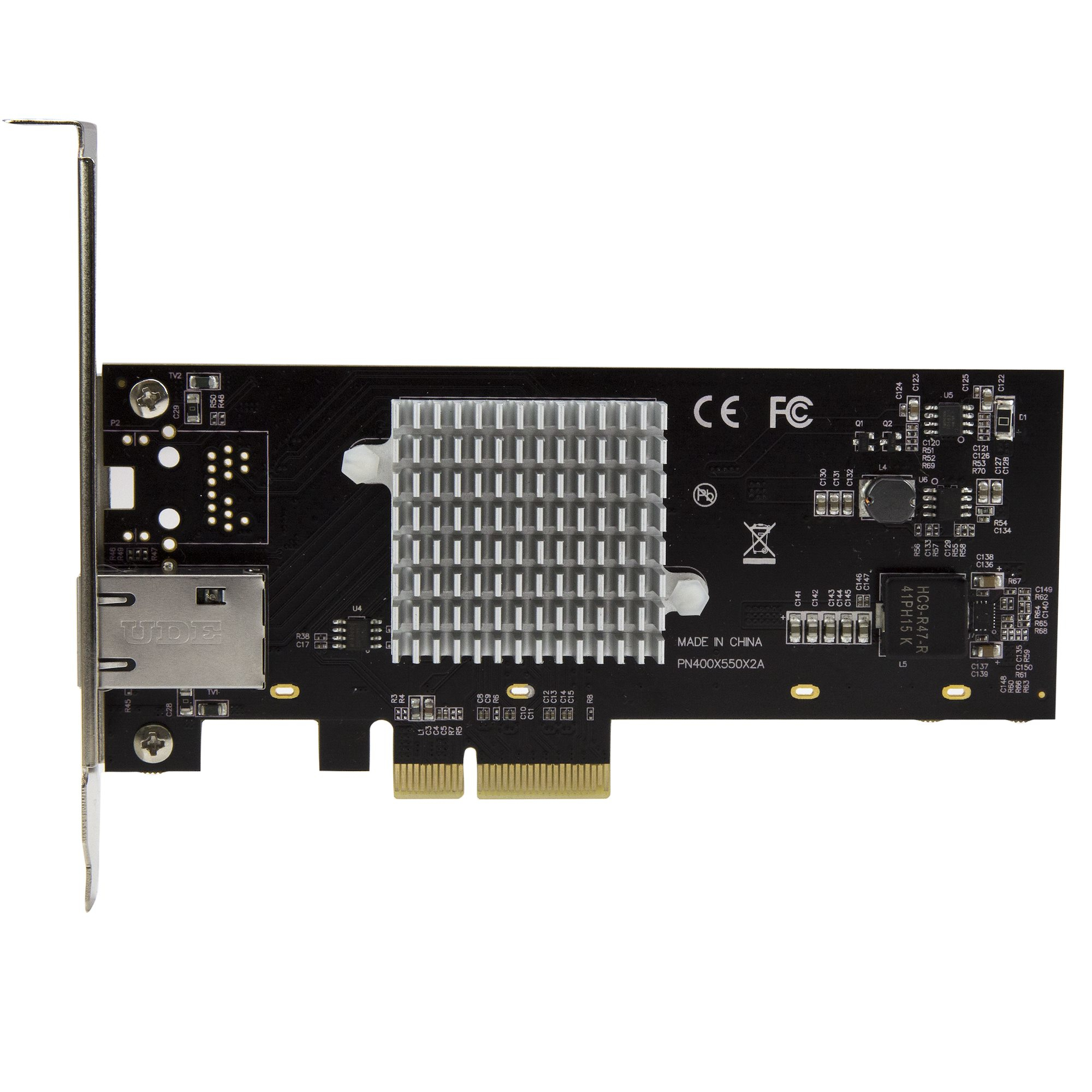

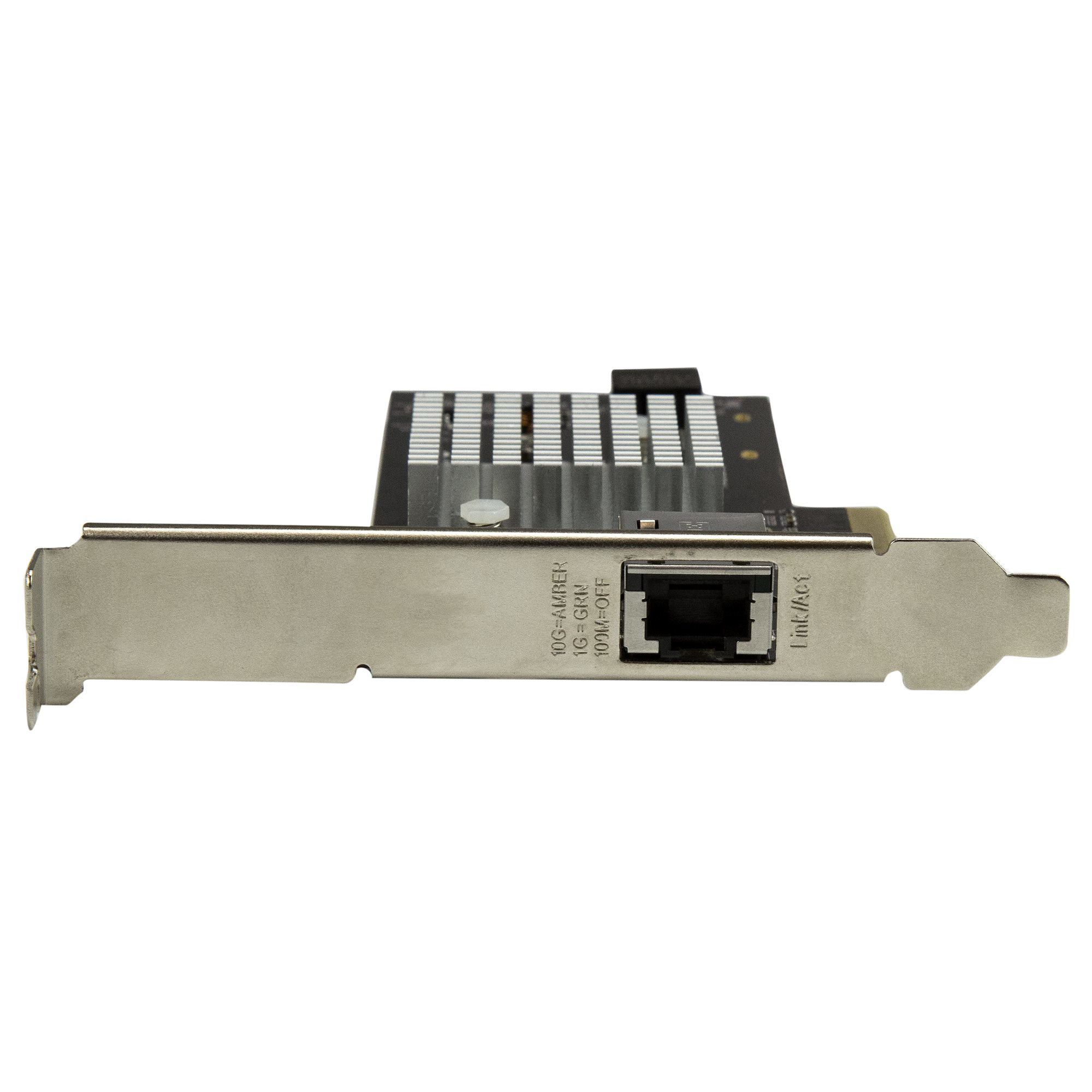

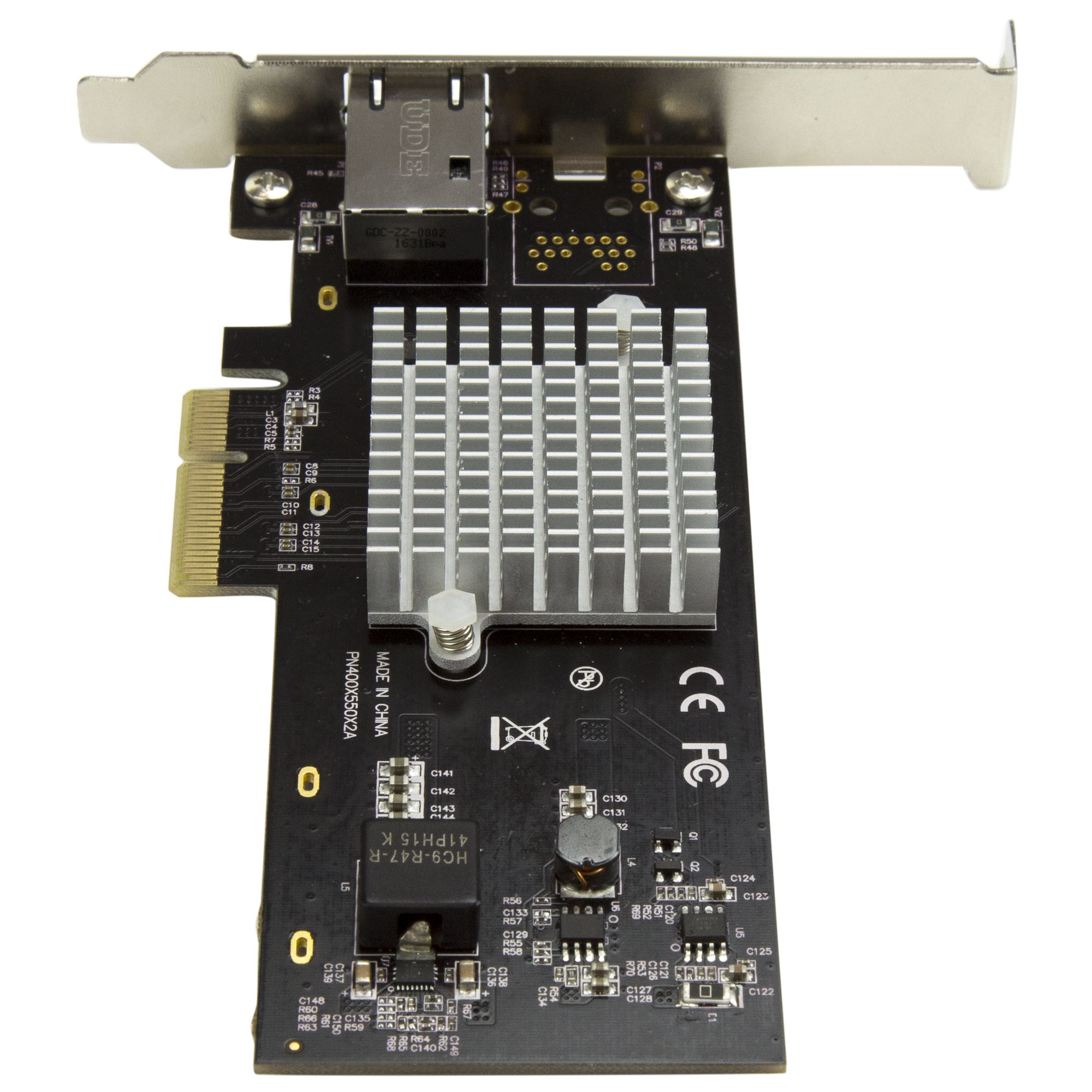

StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip

StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip

Model ST10000SPEXIEAN 065030866156

45 specifications
  • Speed20000 Mbit/s
  • ConnectivityWired
  • Weight96 g
  • InternalYes
  • Operating temperature (T-T)5 - 50 °C
  • Width68.5 mm
See all specifications

Overview

Speed
20000 Mbit/s
Connectivity
Wired
Weight
96 g
Internal
Yes
Operating temperature (T-T)
5 - 50 °C
Width
68.5 mm
Brand
StarTech.com
Category
Network Card
Model
ST10000SPEXI
Part number
ST10000SPEXI
EAN / UPC
065030866156, 5057103201518
Also known as
StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip

Specifications

45 specifications in 11 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
PCI version2.0
PCI Card form factorFull-height (low-profile)

Network

Maximum data transfer rate20000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Auto MDIX IEEEYes
Full duplexYes
Jumbo frames9000
Jumbo frames supportYes
VLAN taggingYes

Design

InternalYes
Component forPC
ChipsetIntel X550AT
LED indicatorsActivity, Link
CertificationCE, FCC, REACH

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premiu
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width68.5 mm
Depth152.5 mm
Height121 mm
Weight96 g

Packaging data

Low-profile bracketYes
Package width145 mm
Package depth209 mm
Package height40 mm
Package weight200 g

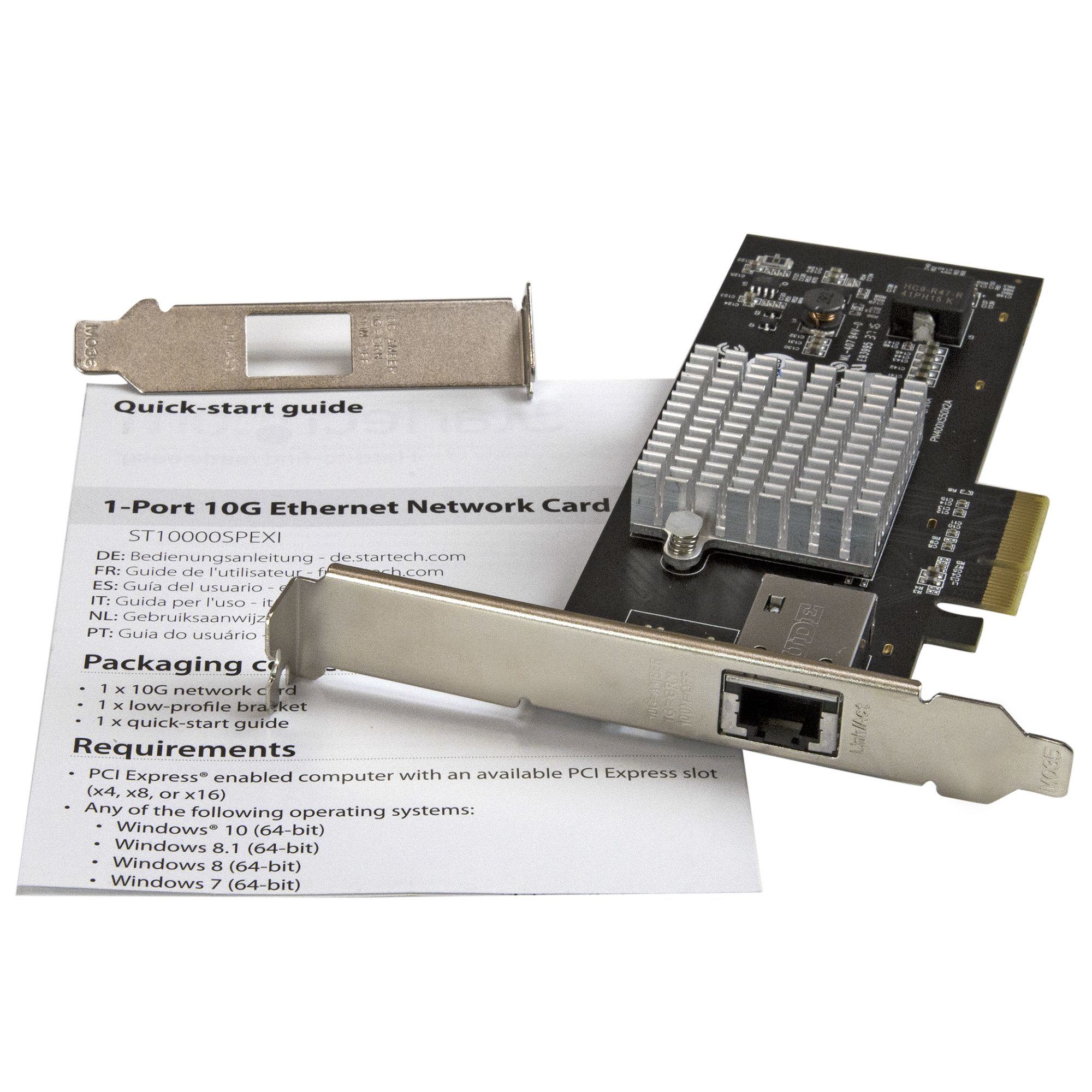

Packaging content

Quick installation guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176990
Master (outer) case width419 mm
Master (outer) case length442 mm
Master (outer) case height312 mm
Products per master (outer) case80 pc(s)

Other features

Flow control supportYes
