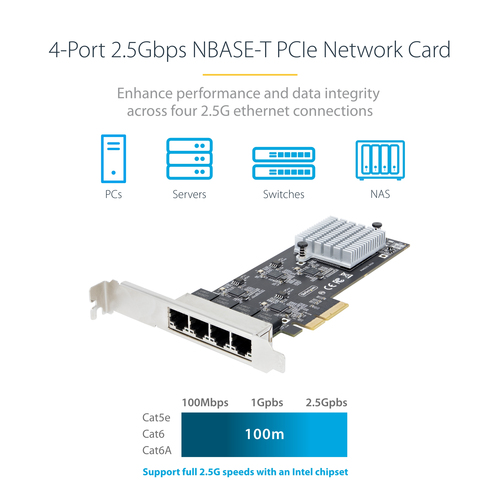

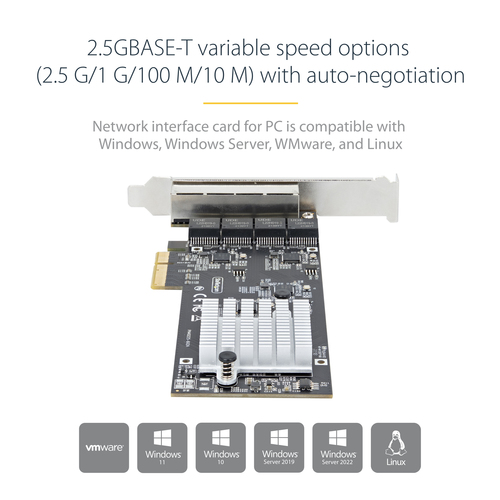

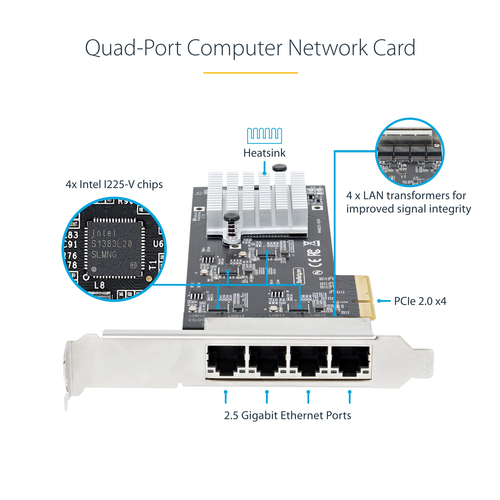

StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Et

4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Et

Model PR42GI-NETWORK-CARDEAN 065030898157

43 specifications

Speed2500 Mbit/s
ConnectivityWired
Weight100 g
ColourBlack
InternalYes
Operating temperature (T-T)0 - 55 °C

See all specifications

Overview

Speed: 2500 Mbit/s
Connectivity: Wired
Weight: 100 g
Colour: Black
Internal: Yes
Operating temperature (T-T): 0 - 55 °C

Brand: StarTech.com
Category: Network Card
Model: PR42GI-NETWORK-CARD
Part number: PR42GI-NETWORK-CARD
EAN / UPC: 065030898157
Also known as: StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Et

Specifications

43 specifications in 9 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	4
PCI version	2.0

Network

Specification	Value
Maximum data transfer rate	2500 Mbit/s
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2000,2500 Mbit/s
Copper ethernet cabling technology	10BASE-TX, 100BASE-TX, 1000BASE-T, 2500BASE-T
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames	9000
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
VLAN tagging	Yes

Design

Specification	Value
Internal	Yes
Component for	PC/Server
Product colour	Black
Chipset	Intel I225-V
LED indicators	Activity, Link

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2019, Windows Server 2022

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	180 mm
Depth	120 mm
Height	22 mm
Weight	100 g

Packaging data

Specification	Value
Low-profile bracket	Yes
Package width	151 mm
Package depth	216 mm
Package height	36 mm
Package weight	130 g

Packaging content

Specification	Value
Quick installation guide	Yes

Logistics data

Specification	Value
Master (outer) case width	451 mm
Master (outer) case length	378 mm
Master (outer) case height	326 mm
Products per master (outer) case	40 pc(s)
