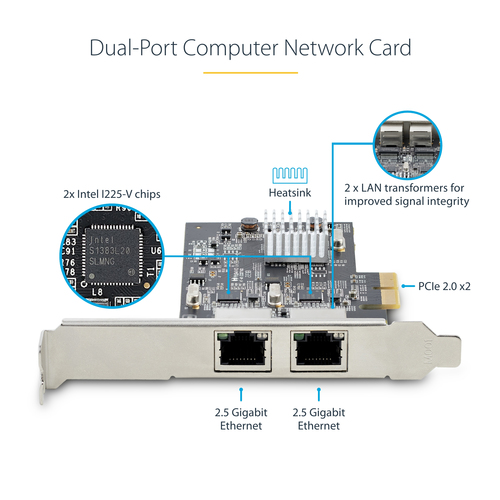

StarTech.com 2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Et

2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Et

Model PR22GI-NETWORK-CARDEAN 065030898140

42 specifications

Speed2500 Mbit/s
ConnectivityWired
Weight60 g
ColourBlack
InternalYes
Operating temperature (T-T)0 - 55 °C

See all specifications

Overview

Speed: 2500 Mbit/s
Connectivity: Wired
Weight: 60 g
Colour: Black
Internal: Yes
Operating temperature (T-T): 0 - 55 °C

Brand: StarTech.com
Category: Network Card
Model: PR22GI-NETWORK-CARD
Part number: PR22GI-NETWORK-CARD
EAN / UPC: 065030898140
Also known as: StarTech.com 2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Et

Specifications

42 specifications in 9 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
PCI version	2.0

Network

Specification	Value
Maximum data transfer rate	2500 Mbit/s
Networking standards	IEEE 1588, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.1as, IEEE 802.1p, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3az, IEEE 802.1x
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet
Ethernet LAN data rates	10,1000,2500,100,2000 Mbit/s
Copper ethernet cabling technology	100BASE-TX, 10BASE-TX, 1000BASE-T, 2500BASE-T
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Jumbo frames	9000
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
VLAN tagging	Yes

Design

Specification	Value
Internal	Yes
Component for	PC/Server
Product colour	Black
Chipset	Intel I225-V
LED indicators	Activity, Link

System requirements

Specification	Value
Windows operating systems supported	Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 P
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2019, Windows Server 2022

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	112 mm
Depth	120 mm
Height	18 mm
Weight	60 g

Packaging data

Specification	Value
Low-profile bracket	Yes
Package width	156 mm
Package depth	218 mm
Package height	38 mm
Package weight	66 g

Packaging content

Specification	Value
Quick installation guide	Yes

Logistics data

Specification	Value
Master (outer) case width	450 mm
Master (outer) case length	380 mm
Master (outer) case height	330 mm
Products per master (outer) case	40 pc(s)
