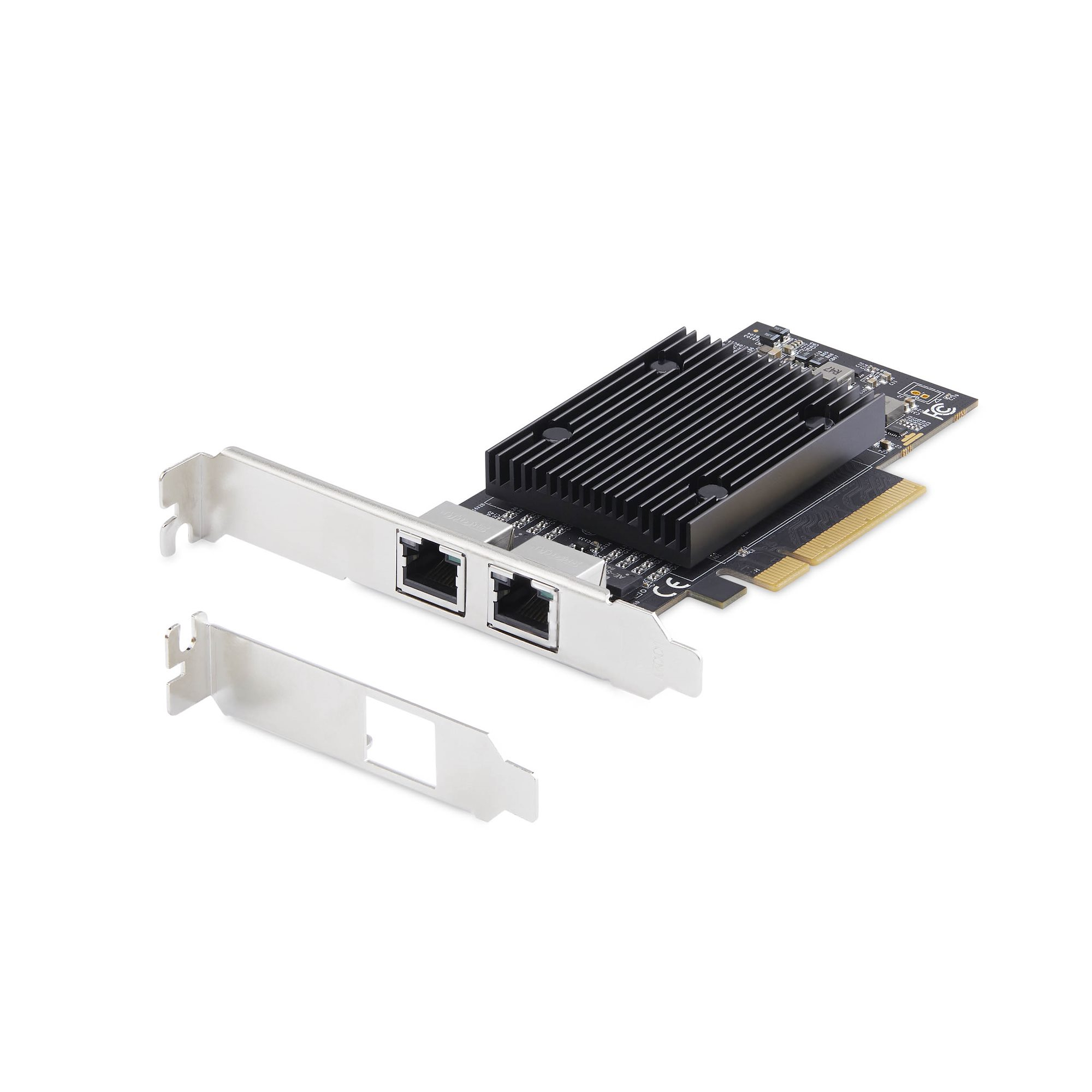

2-Port PCIe 10Gb Ethernet Network Card, 10GbE Network Interface Card, Broadcom BCM57416 Chipset, Dual RJ45 10GBase-T/Gigabit, NIC Card, TAA
Model PR210B-NETWORK-CARDEAN 065030916905
40 specifications
- Speed20000 Mbit/s
- ConnectivityWired
- Weight122 g
- ColourBlack
- InternalYes
- Operating temperature (T-T)0 - 55 °C
Overview
- Speed
- 20000 Mbit/s
- Connectivity
- Wired
- Weight
- 122 g
- Colour
- Black
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- StarTech.com
- Category
- Network Card
- Model
- PR210B-NETWORK-CARD
- Part number
- PR210B-NETWORK-CARD
- EAN / UPC
- 065030916905
- Also known as
- StarTech.com 2-Port PCIe 10Gb Ethernet Network Card, 10GbE Network Interface Card, Broadcom BCM57416 Chipset, Dual RJ45 10GBase-T/Gigabit, NIC Card, TAA
Specifications
40 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 20000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3ad |
| Ethernet LAN | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black |
| Chipset | Broadcom BCM57416 |
| LED indicators | Activity, Status |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 121 mm |
| Depth | 146.5 mm |
| Height | 22 mm |
| Weight | 122 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 170 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Package weight | 130 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 605 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 325 mm |
| Products per master (outer) case | 40 pc(s) |
