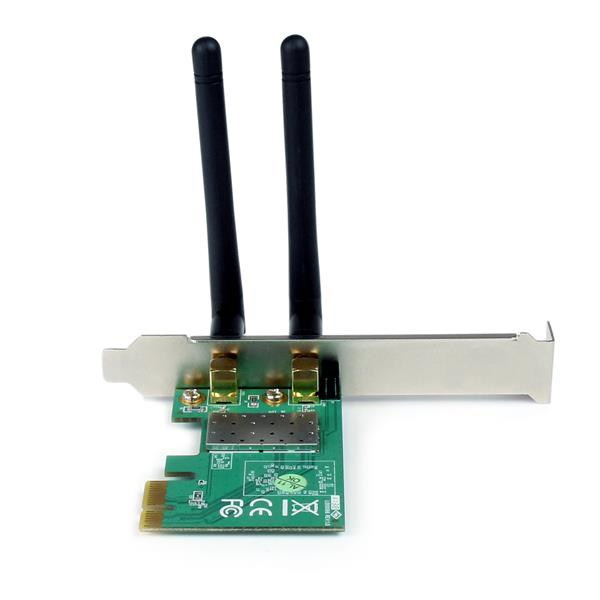

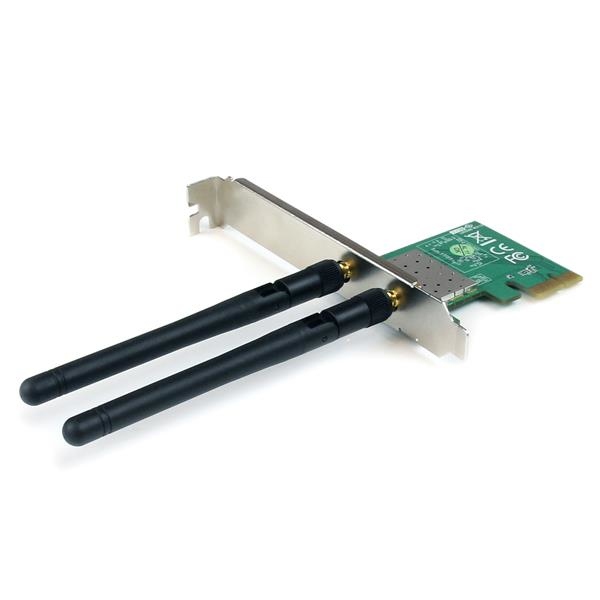

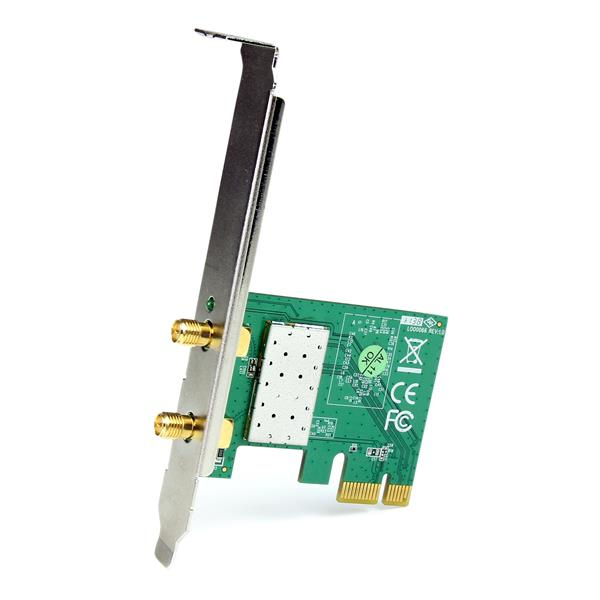

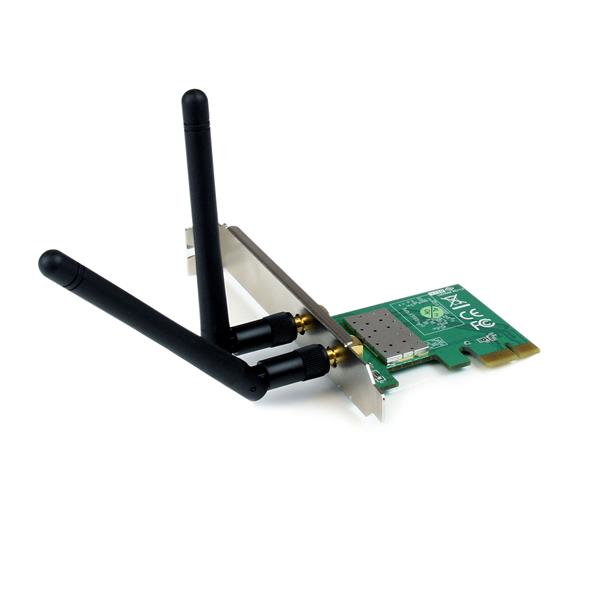

StarTech.com PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi

StarTech.com PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi

Model PEX300WN2X2EAN 5554442317295

47 specifications
  • Speed300 Mbit/s
  • ConnectivityWireless
  • Weight38 g
  • InternalYes
  • Operating temperature (T-T)-10 - 70 °C
  • Width49 mm
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Wireless
Weight
38 g
Internal
Yes
Operating temperature (T-T)
-10 - 70 °C
Width
49 mm
Brand
StarTech.com
Category
Network Card
Model
PEX300WN2X2
Part number
PEX300WN2X2
EAN / UPC
5554442317295, 065030844482, 660585173379, 731215278563 +5 more
Also known as
StarTech.com PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi

Specifications

47 specifications in 10 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI Express
InterfaceWLAN

Network

Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.4 - 2.484 GHz
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standardsWi-Fi 4 (802.11n)
WLAN data transfer rates supported300 Mbit/s
ModulationCCK, DBPSK, DQPSK, DSSS, OFDM
Security algorithmsAES, TKIP, WEP, WPA, WPA2-PSK
Full duplexYes
Supported network protocolsCSMA/CA

Design

InternalYes
AntennaYes
Antenna designExternal

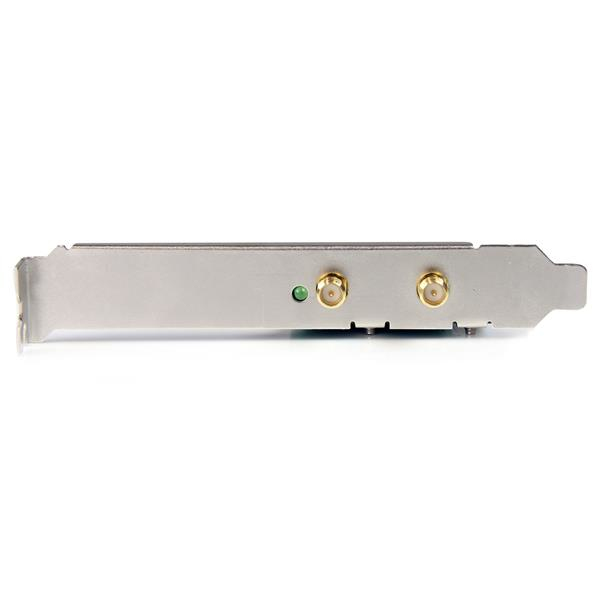

Antenna connector typeRP-SMA
ChipsetRalink - RT5392
LED indicatorsActivity, Link
CertificationCE, FCC, REACH, TAA

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedYes
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2

Operational conditions

Operating temperature (T-T)-10 - 70 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width49 mm
Depth75 mm
Height18 mm
Weight38 g

Packaging data

Drivers includedYes
Low-profile bracketYes
Quantity per pack1 pc(s)
Package width140 mm
Package depth165 mm
Package height35 mm
Package weight158 g

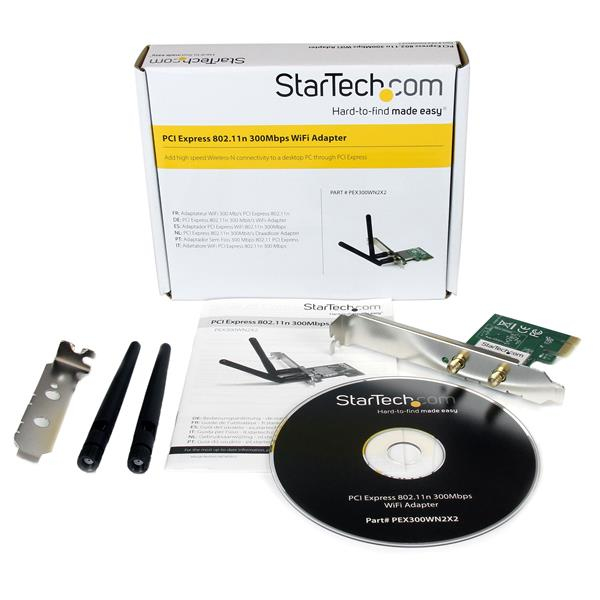

Packaging content

Mounting brackets includedYes
ManualYes

Technical details

Compliance certificatesRoHS

Other features

Gain2.2 dBi
Antennas quantity2
Bandwidth note20/40 MHz
Channel bandwidth40 MHz
