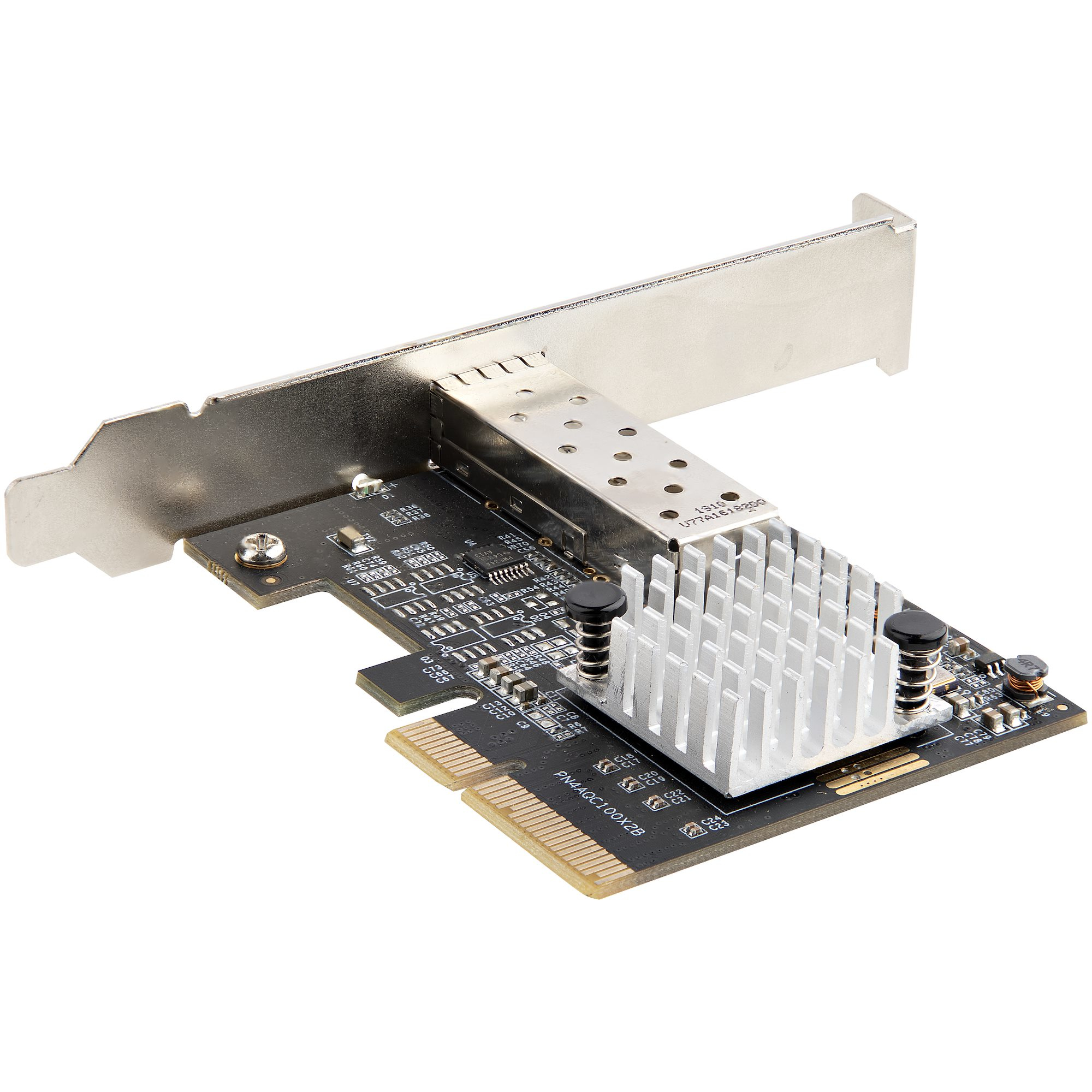

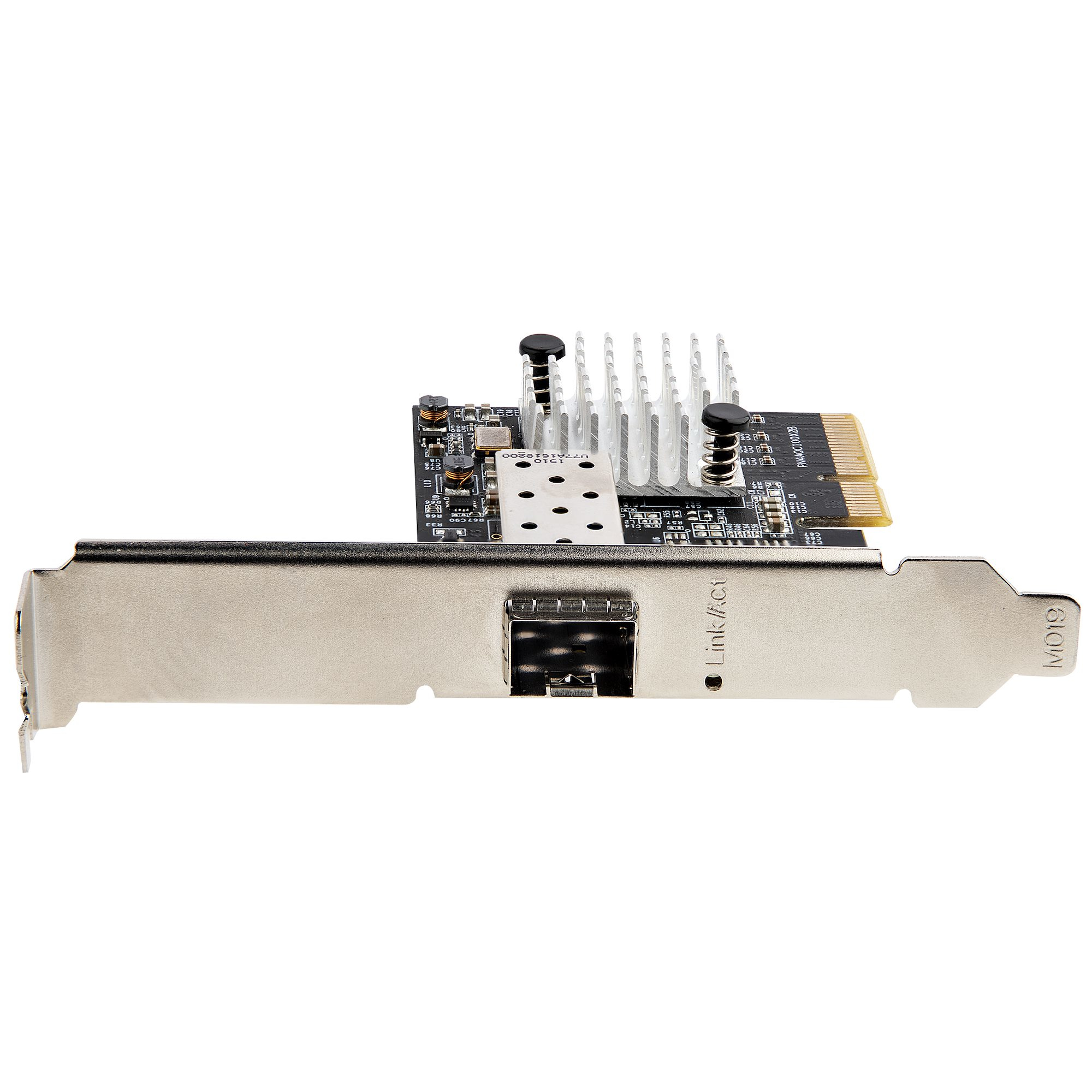

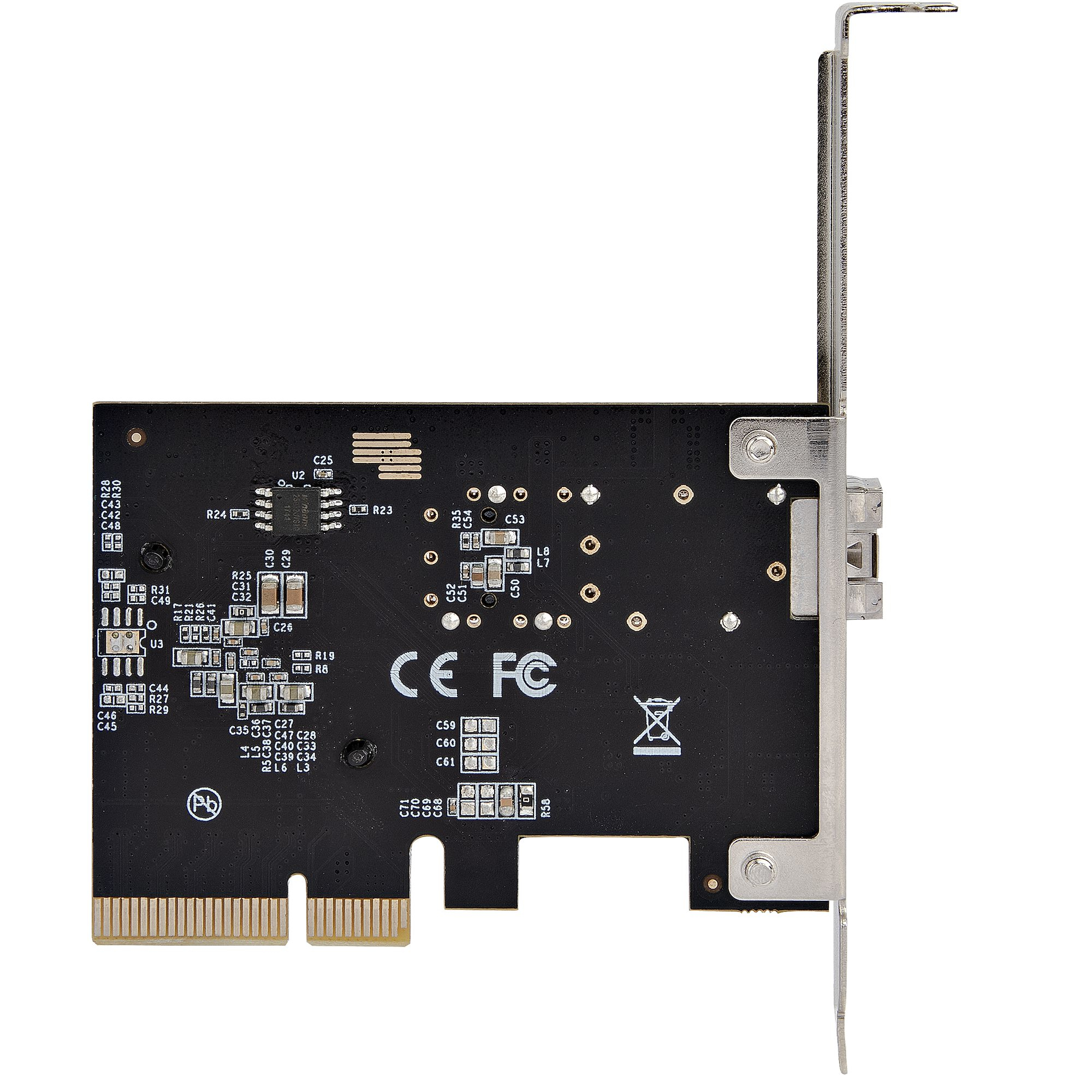

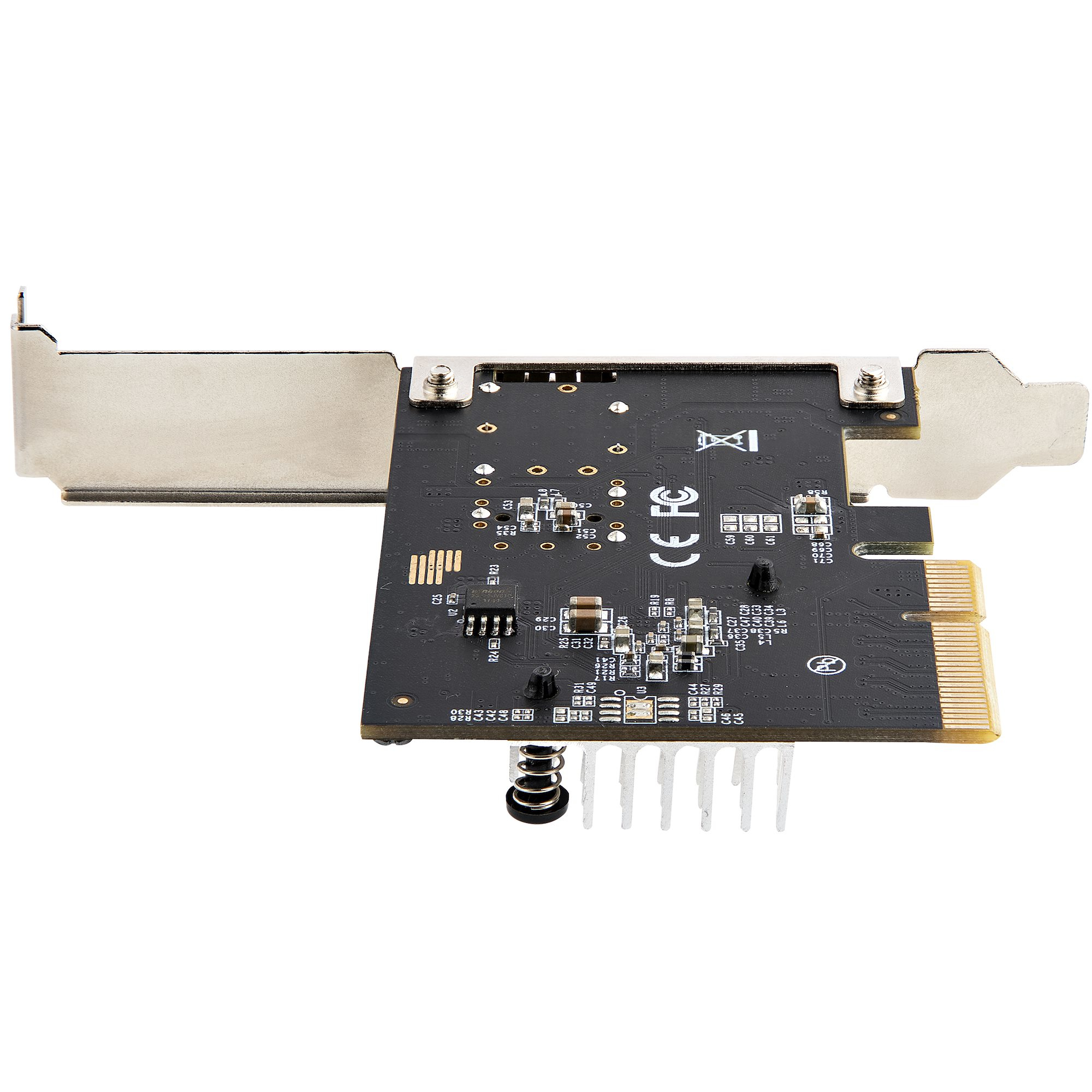

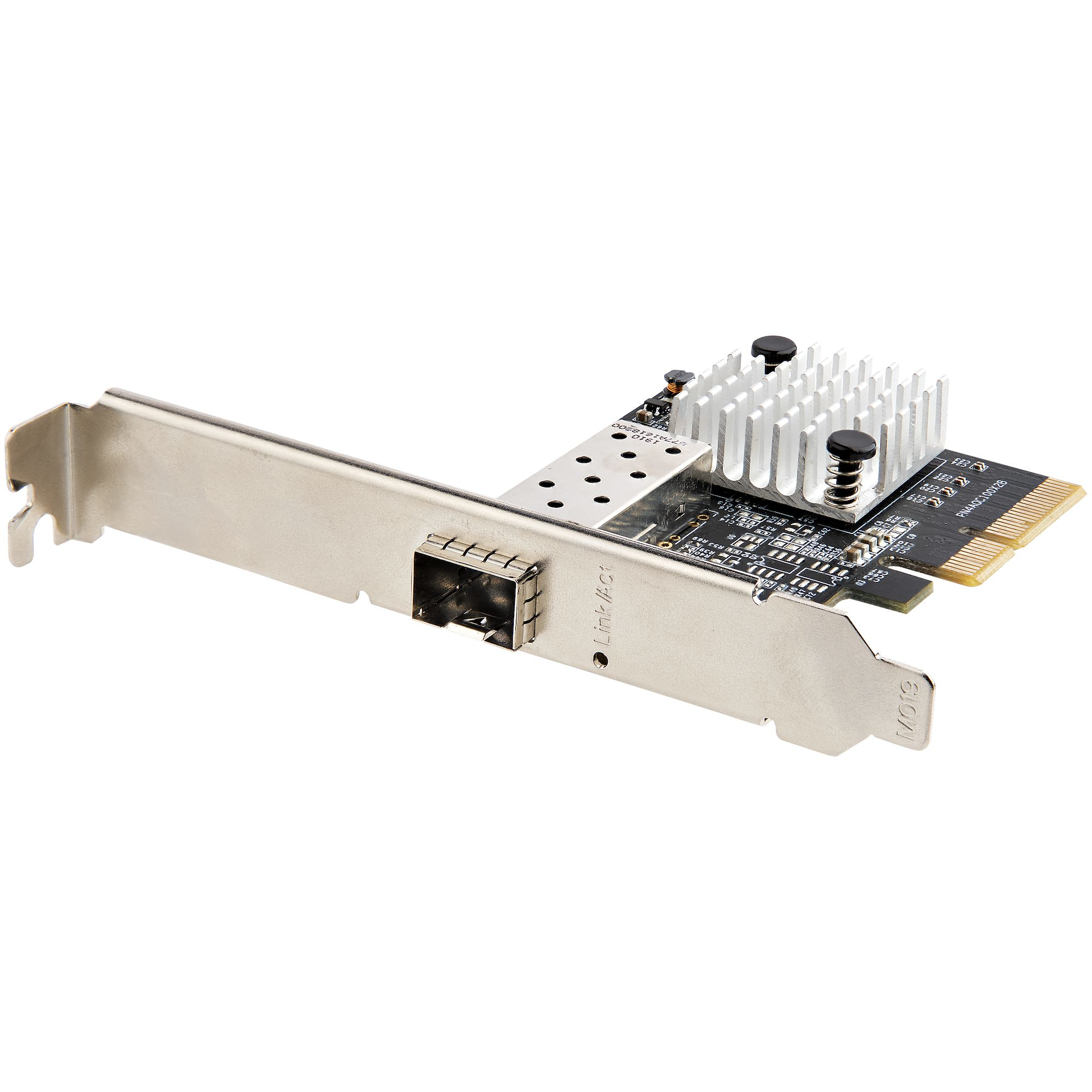

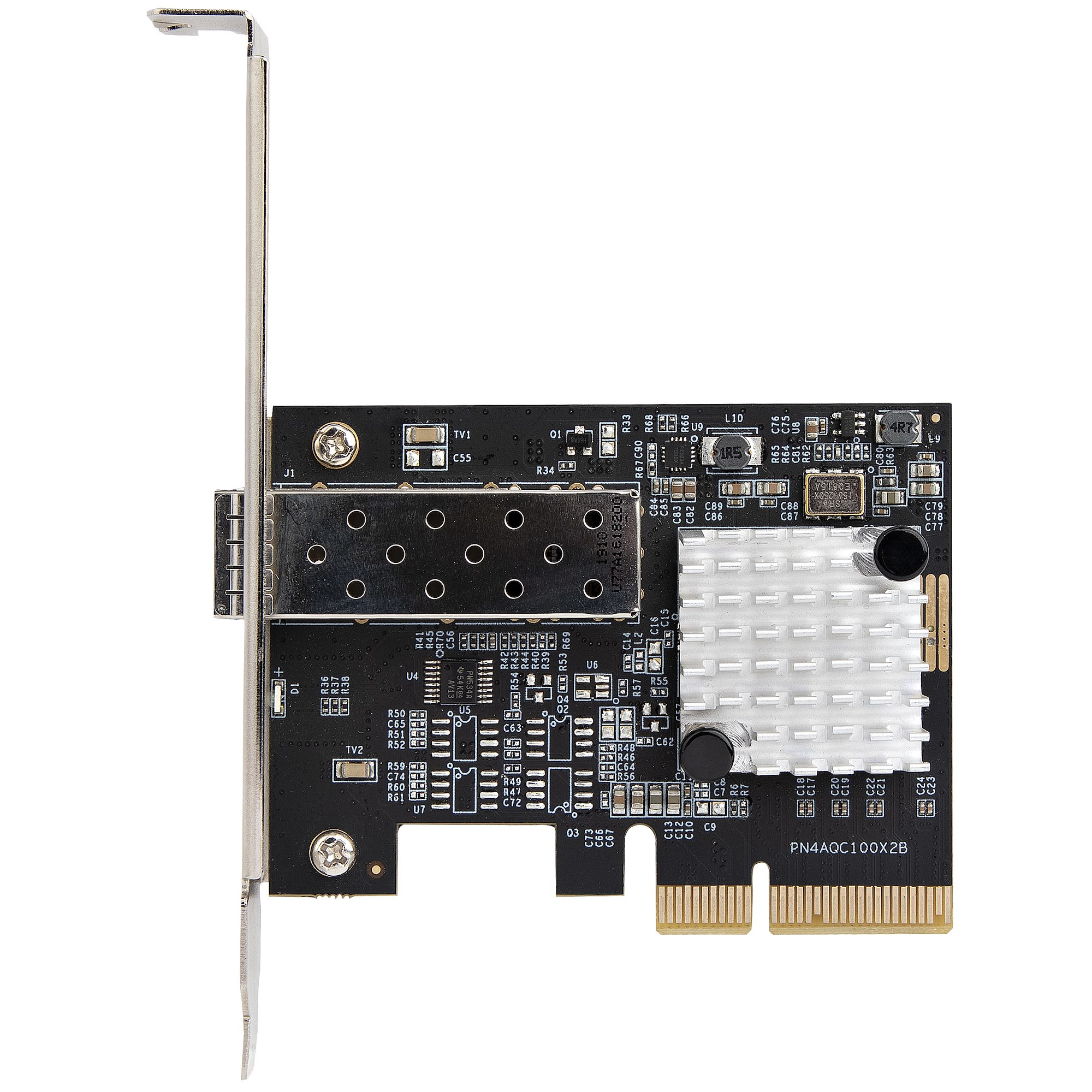

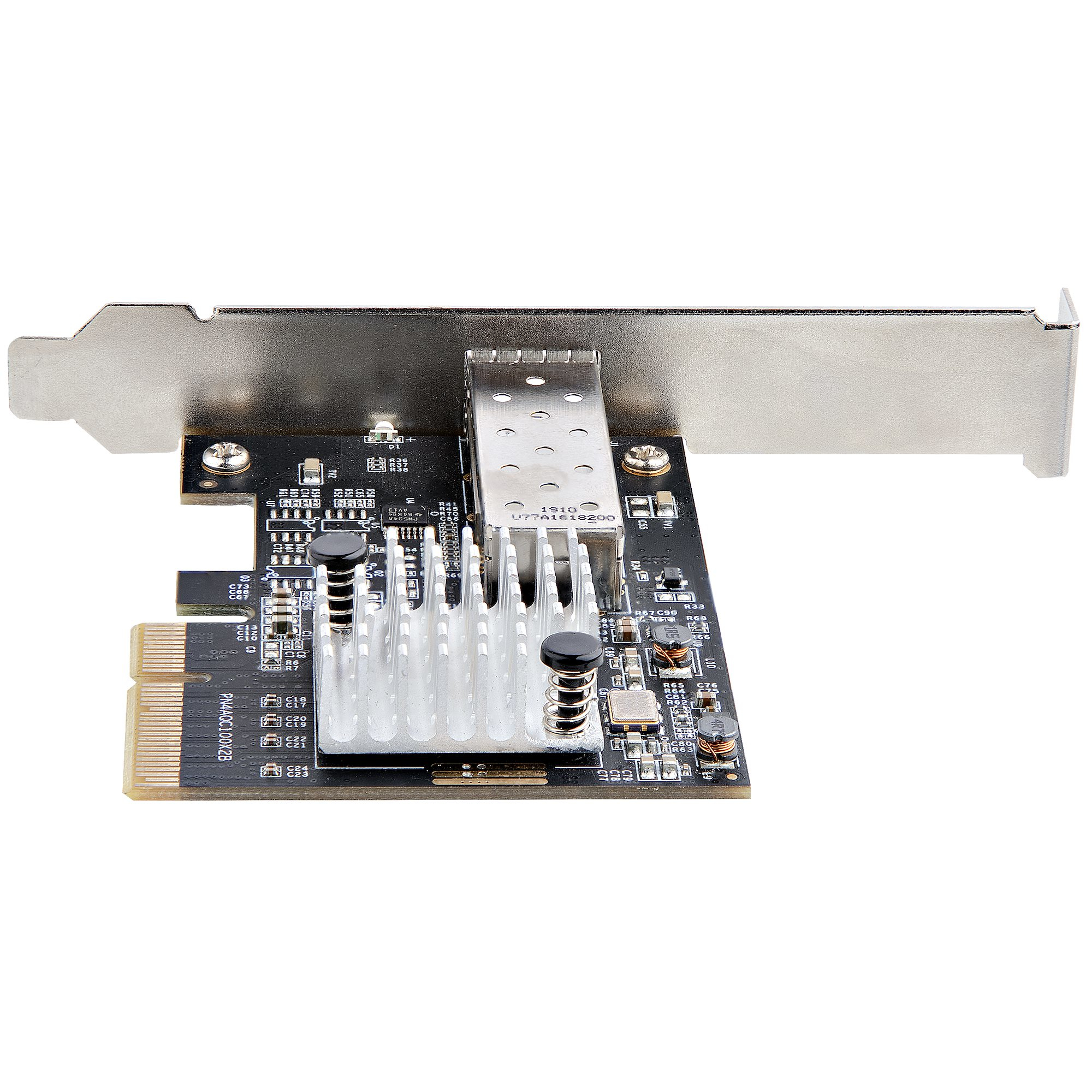

10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI
Model PEX10GSFPEAN 065030891295
39 specifications
- Speed20000 Mbit/s
- ConnectivityWired
- Weight55 g
- ColourBlack
- InternalYes
- Operating temperature (T-T)5 - 50 °C
Overview
- Speed
- 20000 Mbit/s
- Connectivity
- Wired
- Weight
- 55 g
- Colour
- Black
- Internal
- Yes
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Network Card
- Model
- PEX10GSFP
- Part number
- PEX10GSFP
- EAN / UPC
- 065030891295
- Also known as
- StarTech.com 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI
Specifications
39 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber optic connector | SFP+ |
| PCI version | 3.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 20000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x |
| Full duplex | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Fiber mode structure | Multi-mode, Single-mode |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black |
| Chipset | Aquantia AQC100S |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 94 mm |
| Height | 121 mm |
| Weight | 55 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210 mm |
| Package depth | 145 mm |
| Package height | 35 mm |
| Package weight | 145 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 355 mm |
| Master (outer) case height | 235 mm |
| Products per master (outer) case | 20 pc(s) |
Other features
| Specification | Value |
|---|---|
| Flow control support | Yes |
