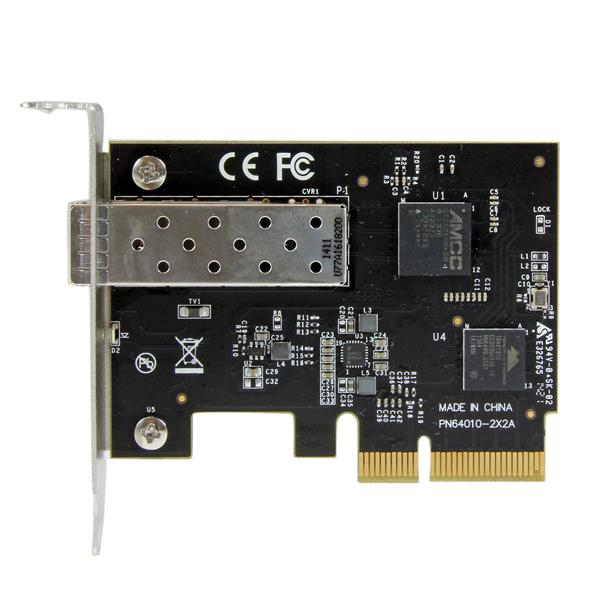

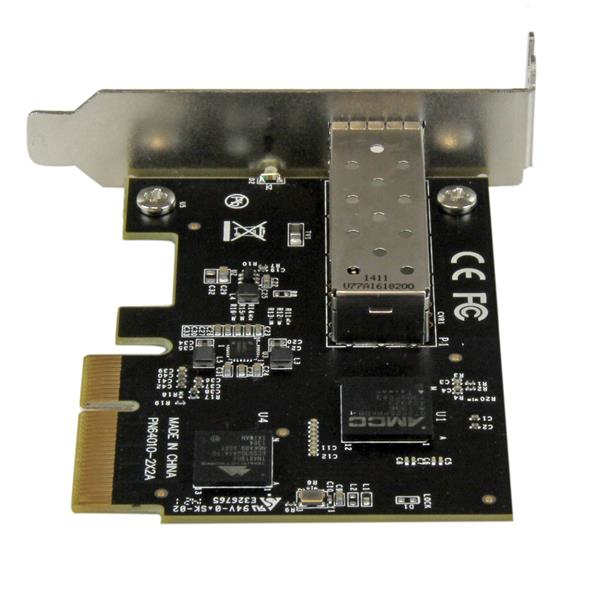

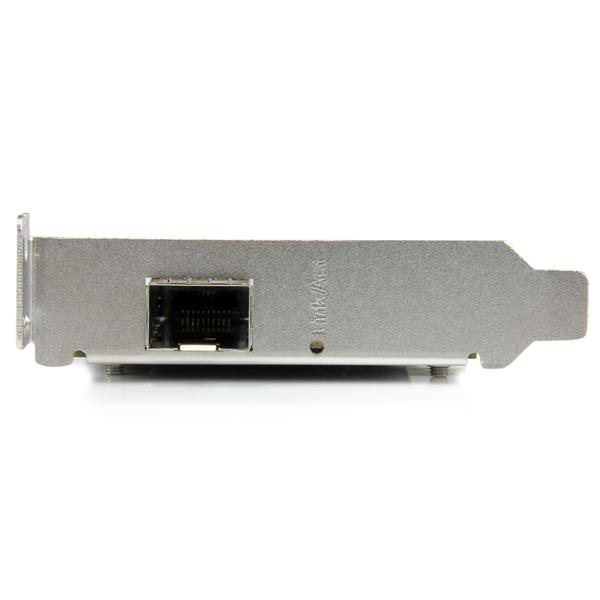

StarTech.com PCI Express 10 Gigabit Ethernet Fiber Network Card w/ Open SFP+ - PCIe x4
StarTech.com

PCI Express 10 Gigabit Ethernet Fiber Network Card w/ Open SFP+ - PCIe x4

10Gb NIC SFP+ Adapter

Model PEX10000SFPEAN 4058829151300

41 specifications
  • Speed20000 Mbit/s
  • ConnectivityWired
  • Weight43 g
  • ColourBlack
  • InternalYes
  • Power consumption (typical)4.12 W
See all specifications

Overview

Speed
20000 Mbit/s
Connectivity
Wired
Weight
43 g
Colour
Black
Internal
Yes
Power consumption (typical)
4.12 W
Brand
StarTech.com
Category
Network Card
Model
PEX10000SFP
Part number
PEX10000SFP
EAN / UPC
4058829151300, 065030859554, 650308595540, 5054629678589 +1 more
Also known as
StarTech.com PCI Express 10 Gigabit Ethernet Fiber Network Card w/ Open SFP+ - PCIe x4 10Gb NIC SFP+ Adapter

Specifications

41 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet / Fiber
Fiber optic connectorSFP+
Fiber ports quantity1
PCI version2.0

Network

Maximum data transfer rate20000 Mbit/s
Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Ethernet LANYes
Ethernet LAN data rates10000 Mbit/s
Full duplexYes
Jumbo frames supportYes
VLAN taggingYes

Design

InternalYes
Product colourBlack
ChipsetTehuti - TN4010, AMCC - QT2025
LED indicatorsActivity
CertificationCE, FCC, REACH

Power

Power consumption (typical)4.12 W

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basi
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supportedYes
Other operating systems supportedVMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width19 mm
Depth83 mm
Height120 mm
Weight43 g

Packaging data

Drivers includedYes
Package width173 mm
Package depth144 mm
Package height30 mm
Package weight145 g

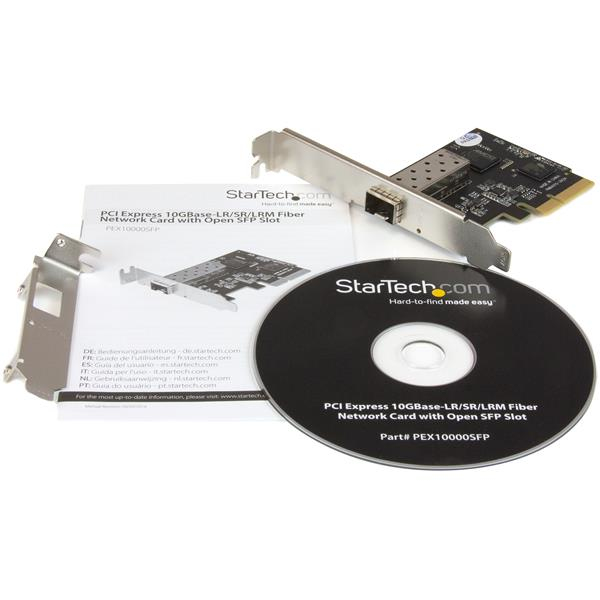

Packaging content

Mounting brackets includedYes
ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176990

Other features

Flow control supportYes
