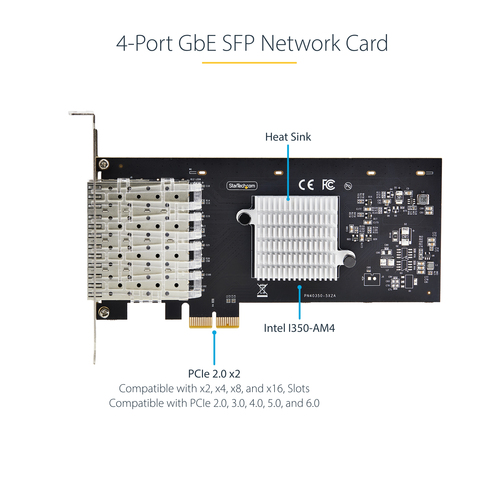

4-Port GbE SFP Network Card, PCIe
2.0 x2 (x4, x8, x16 Compatible), Intel I350-AM4 4x 1GbE Controller, 1000BASE Copper/Fiber Optic, Desktop/Server Q
Model P041GI-NETWORK-CARDEAN 065030900287
35 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- InternalYes
- Operating temperature (T-T)0 - 50 °C
- Width83 mm
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 83 mm
- Brand
- StarTech.com
- Category
- Network Card
- Model
- P041GI-NETWORK-CARD
- Part number
- P041GI-NETWORK-CARD
- EAN / UPC
- 065030900287
- Also known as
- StarTech.com 4-Port GbE SFP Network Card, PCIe 2.0 x2 (x4, x8, x16 Compatible), Intel I350-AM4 4x 1GbE Controller, 1000BASE Copper/Fiber Optic, Desktop/Server Q
Specifications
35 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber optic connector | SFP |
| Fiber ports quantity | 4 |
| PCI version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3z |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Supported network protocols | IPv4, IPv6, TCP/UDP |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black |
| LED indicators | Speed, Status |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 83 mm |
| Depth | 167 mm |
| Height | 10 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 154 mm |
| Package depth | 218 mm |
| Package height | 38 mm |
| Package weight | 135 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 446 mm |
| Master (outer) case length | 378 mm |
| Master (outer) case height | 325 mm |
| Products per master (outer) case | 40 pc(s) |
