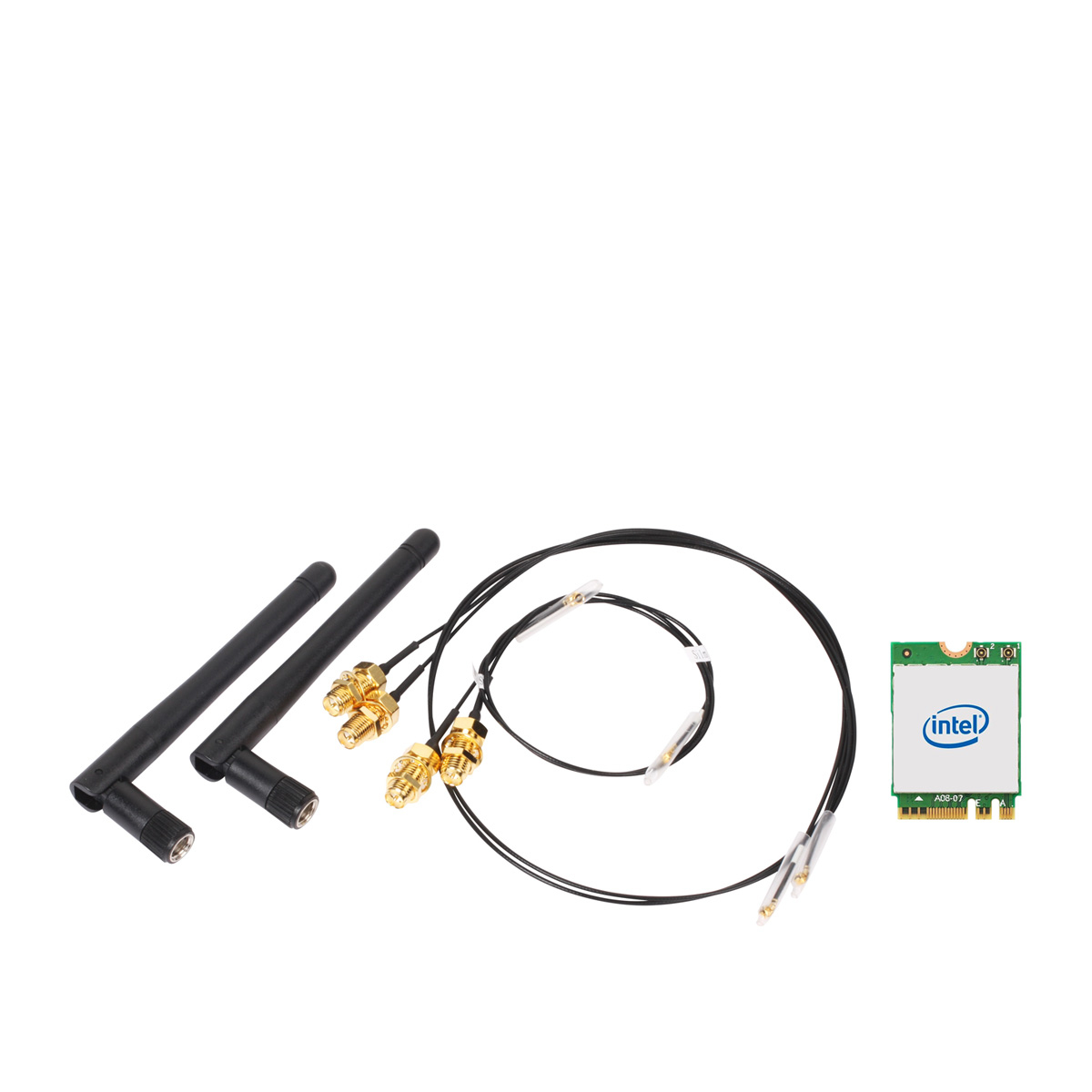

Shuttle WLN-M1 - Intel WLAN-ax/Bluetooth Combo Kit with M.2 card, cables and external antennas
Shuttle

WLN-M1 - Intel WLAN-ax/Bluetooth Combo Kit with M.2 card, cables and external antennas

Model WLN-M1Part no. POZ-WLNM11EAN 4046047103690

33 specifications
  • Speed2400 Mbit/s
  • ConnectivityWireless
  • InternalYes
  • Windows operating systems supportedWindows 10, Windows 11
  • Operating temperature (T-T)0 - 80 °C
  • Width30 mm
See all specifications

Overview

Speed
2400 Mbit/s
Connectivity
Wireless
Internal
Yes
Windows operating systems supported
Windows 10, Windows 11
Operating temperature (T-T)
0 - 80 °C
Width
30 mm
Brand
Shuttle
Category
Network Card
Model
WLN-M1
Part number
POZ-WLNM11
EAN / UPC
4046047103690
Also known as
Shuttle WLN-M1 - Intel WLAN-ax/Bluetooth Combo Kit with M.2 card, cables and external antennas

Specifications

33 specifications in 9 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI Express
InterfaceWLAN / Bluetooth

Network

Maximum data transfer rate2400 Mbit/s
Networking standardsIEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Security algorithms64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
BluetoothYes
Bluetooth version5.2

Design

InternalYes
Component forPC/Laptop
AntennaYes
Antenna designExternal
Antenna connector typeRP-SMA
Antenna direction typeOmni-directional
Country of originChina
Compatible productsDH410(S), DH470, DH610(S), DH670, XH510G(2), XH610(V),DL10J, DL20N(6), DH02Ux, SH310R4(V2), SH370R6(V2)(Plus), SH370R8, SH510R4, SH570R6 (Plus), SH570R8, SW580R8, P20U, P22U, P51U(3), P52U(3), X50V7xx, X50V8xx, EN01J3, EN01J4,NC10Ux series,

System requirements

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 80 °C

Weight & dimensions

Width30 mm
Depth22 mm
Height2.4 mm
Antenna diameter1 cm
Antenna length10.8 cm

Packaging content

Quick installation guideYes

Logistics data

Harmonized System (HS) code85176990

Other features

Detachable antenna(s)Yes
Antennas quantity2
Supported Under vProNo
