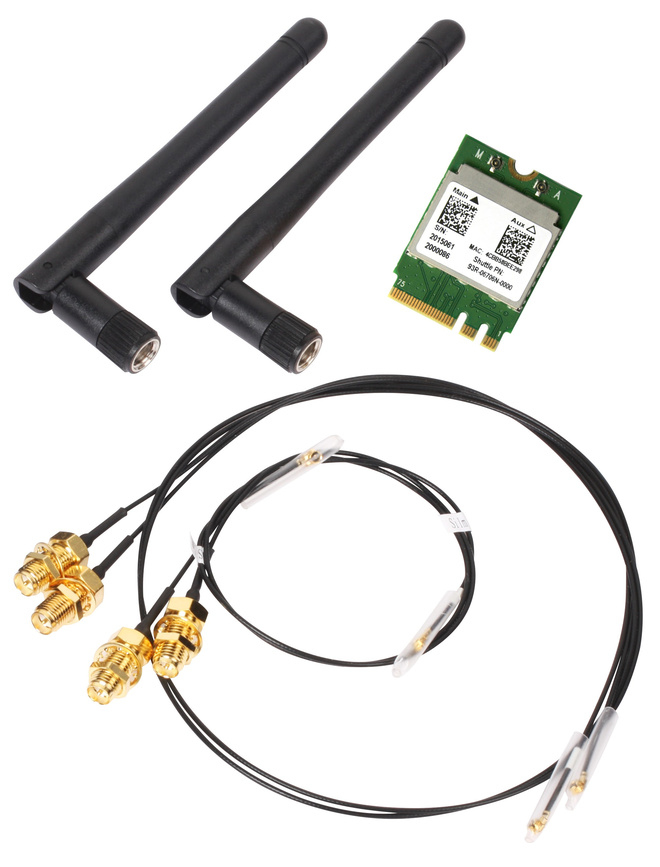

Shuttle WLN-M - Realtek WLAN-ac/Bluetooth Combo Kit with M.2 card, cables and external antennas

Shuttle WLN-M - Realtek WLAN-ac/Bluetooth Combo Kit with M.2 card, cables and external antennas

Model WLN-MPart no. POZ-WLNM01EAN 887993800035

40 specifications
  • Speed433.3 Mbit/s
  • ConnectivityWireless
  • ColourGreen
  • InternalYes
  • Operating temperature (T-T)0 - 70 °C
  • Width26.6 mm
See all specifications

Overview

Speed
433.3 Mbit/s
Connectivity
Wireless
Colour
Green
Internal
Yes
Operating temperature (T-T)
0 - 70 °C
Width
26.6 mm
Brand
Shuttle
Category
Network Card
Model
WLN-M
Part number
POZ-WLNM01
EAN / UPC
887993800035, 5057103095032, 8879938000350
Also known as
Shuttle WLN-M - Realtek WLAN-ac/Bluetooth Combo Kit with M.2 card, cables and external antennas

Specifications

40 specifications in 9 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI Express
InterfaceWLAN / Bluetooth
PCI version1.1
PCI Card form factorFull-height

Network

Maximum data transfer rate433.3 Mbit/s
Networking standardsIEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n
Wi-FiYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported433 Mbit/s
Security algorithmsAES, WAPI, WPA, WPA2
Bandwidth (first)2.4 GHz
Bandwidth (second)5 GHz
Bluetooth version4.0

Design

InternalYes
Component forPC
Product colourGreen
AntennaYes
ChipsetRTL8821AE
Country of originChina
Compatible productsNC02U, NC03U, NC10U, DH110(SE), DH270, DH310(S), DH310V2, DH370, DH410(S), DH470, DH610(S), DH670, XH110(V), XH110G, XH270, XH310(V), XH310R(V), XH410G, XH510G(2), XH610(V), XC60J, DX30, DL10J, DL20N(6), DH02Ux, SH110R4, SZ170R8V2, SZ270R8, SZ270R9, SH310R4(V2), SH370R6(V2)(Plus), SH370R8, SH510R4,

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 80%

Weight & dimensions

Width26.6 mm
Depth29.9 mm
Height2.35 mm
Antenna diameter1 cm
Antenna length10.8 cm

Packaging data

Drivers includedYes
Quantity per pack1 pc(s)

Logistics data

Harmonized System (HS) code85176990

Other features

Detachable antenna(s)Yes
Antennas quantity2
Quick start guideYes
Bandwidth note80 MHz
