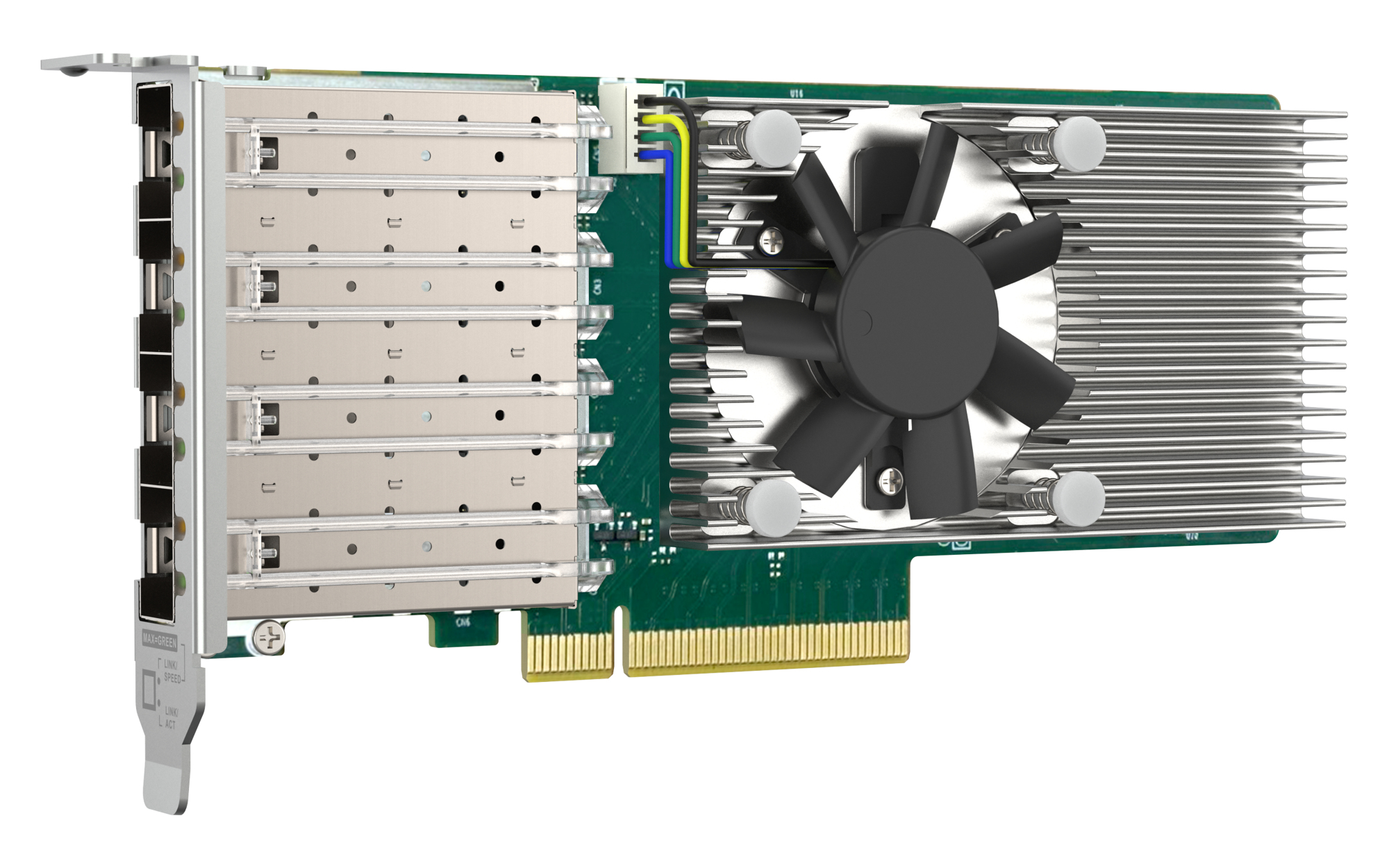

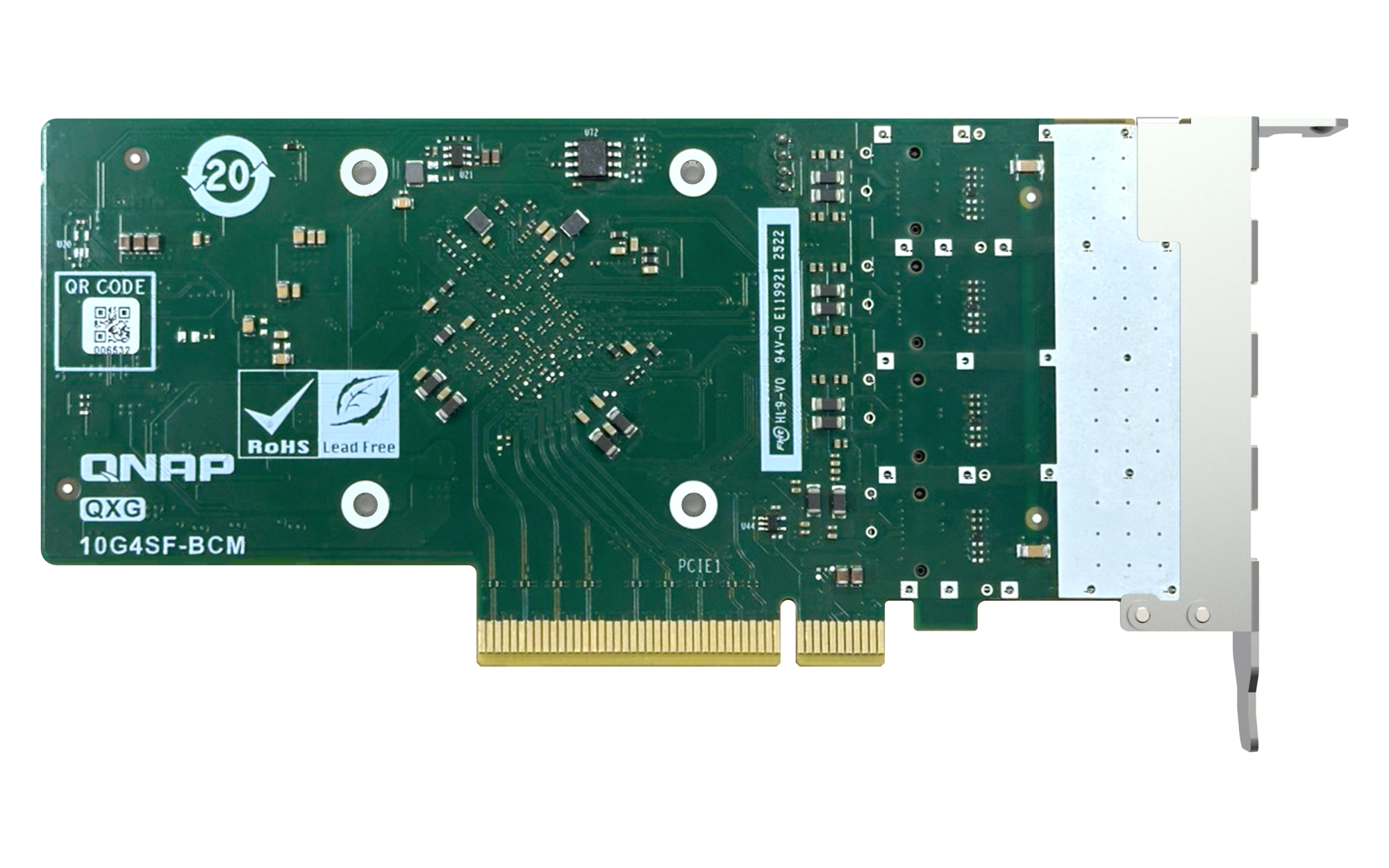

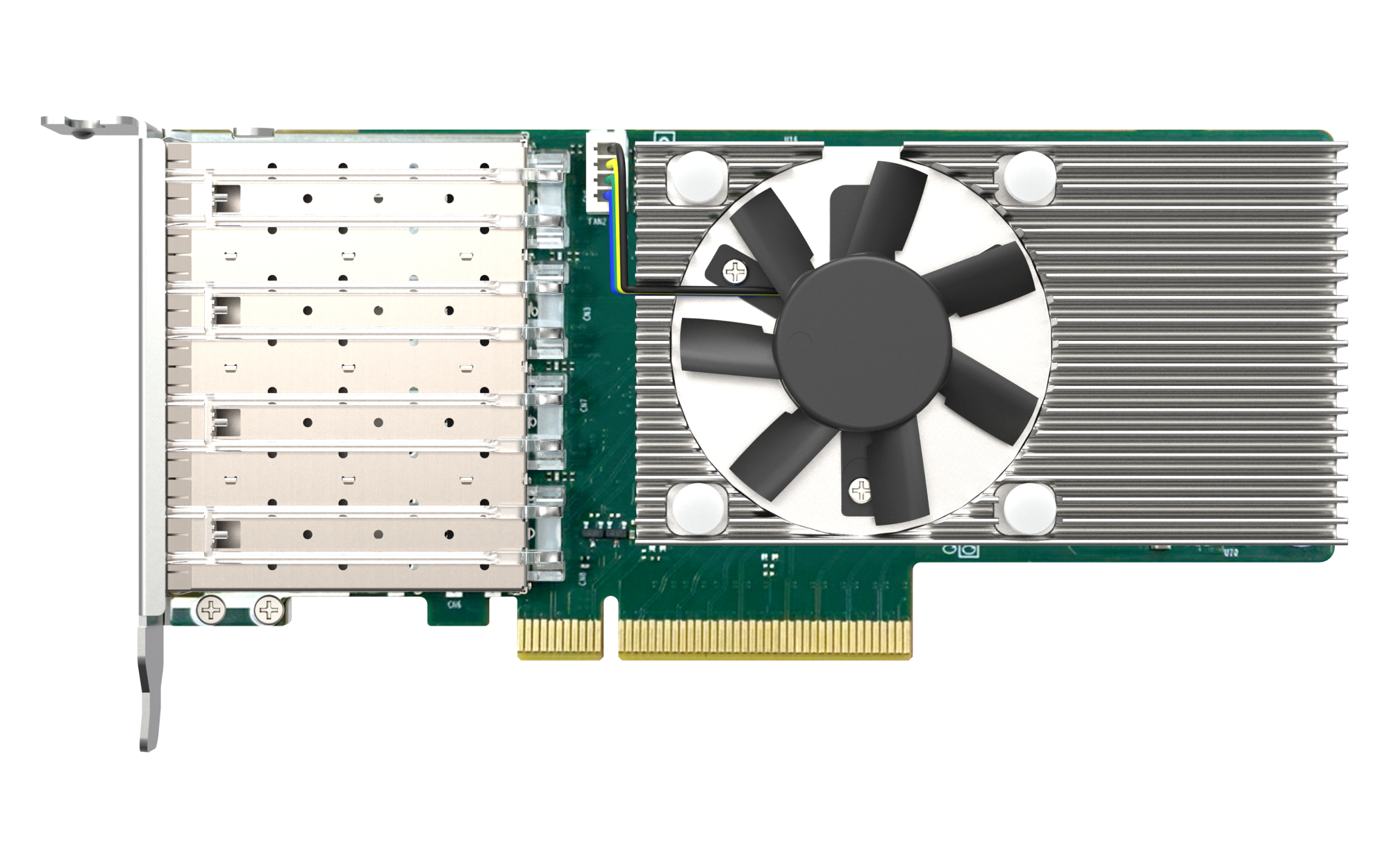

QXG-10G4SF-BCM network card Internal Fiber 10000 Mbit/s
Model QXG-10G4SF-BCMEAN 885022034420
13 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- InternalYes
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Internal
- Yes
- Brand
- QNAP
- Category
- Network Card
- Model
- QXG-10G4SF-BCM
- Part number
- QXG-10G4SF-BCM
- EAN / UPC
- 885022034420, 4711103092118
- Also known as
- QNAP QXG-10G4SF-BCM network card Internal Fiber 10000 Mbit/s
Specifications
13 specifications in 4 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |

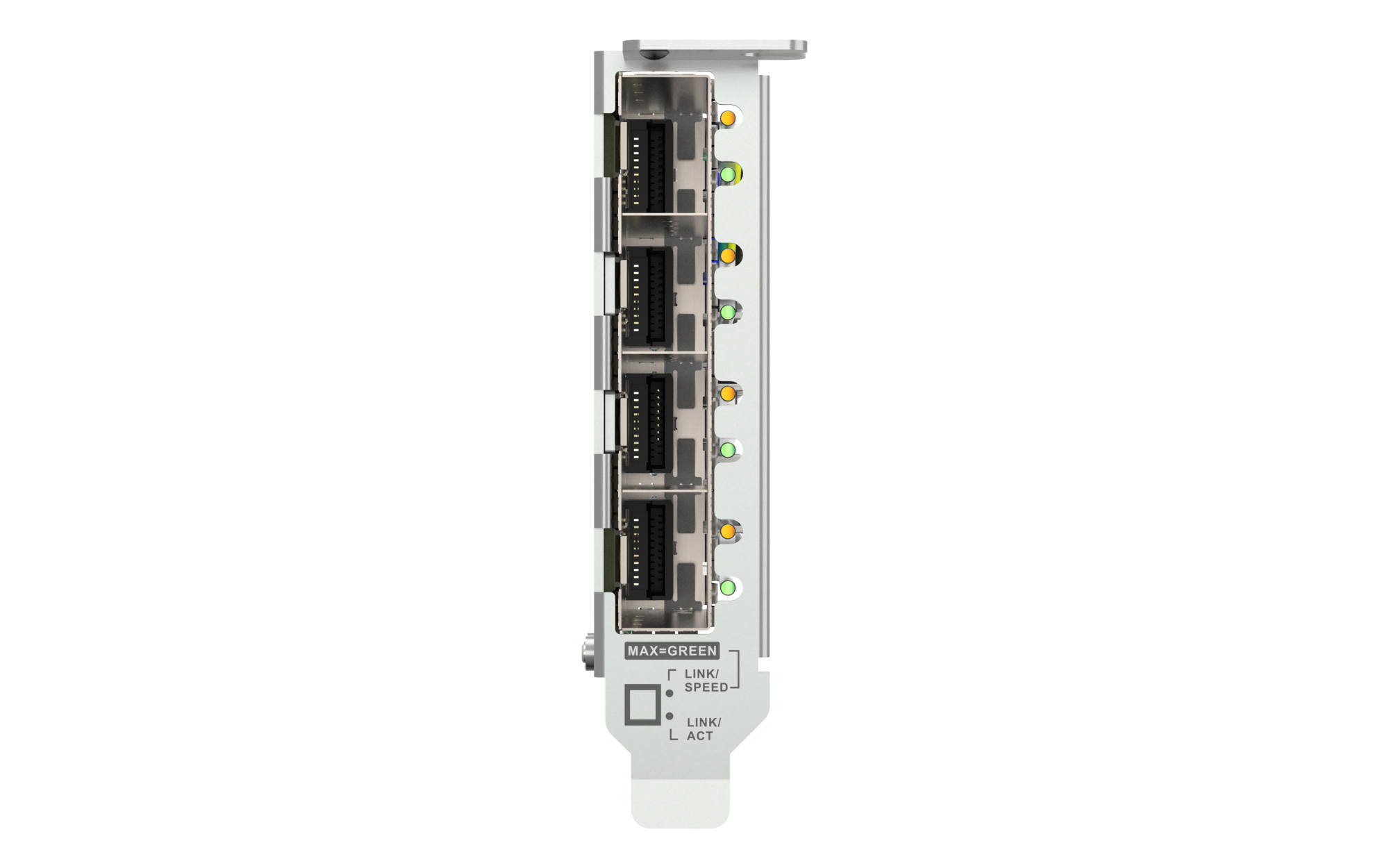

| Fiber optic connector | SFP+ |
| Fiber ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Qbb, IEEE 802.1Qaz |
| VLAN support | Yes |
| LAN controller | Broadcom BCM57502 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | NAS/storage server |
Packaging content
| Specification | Value |
|---|---|

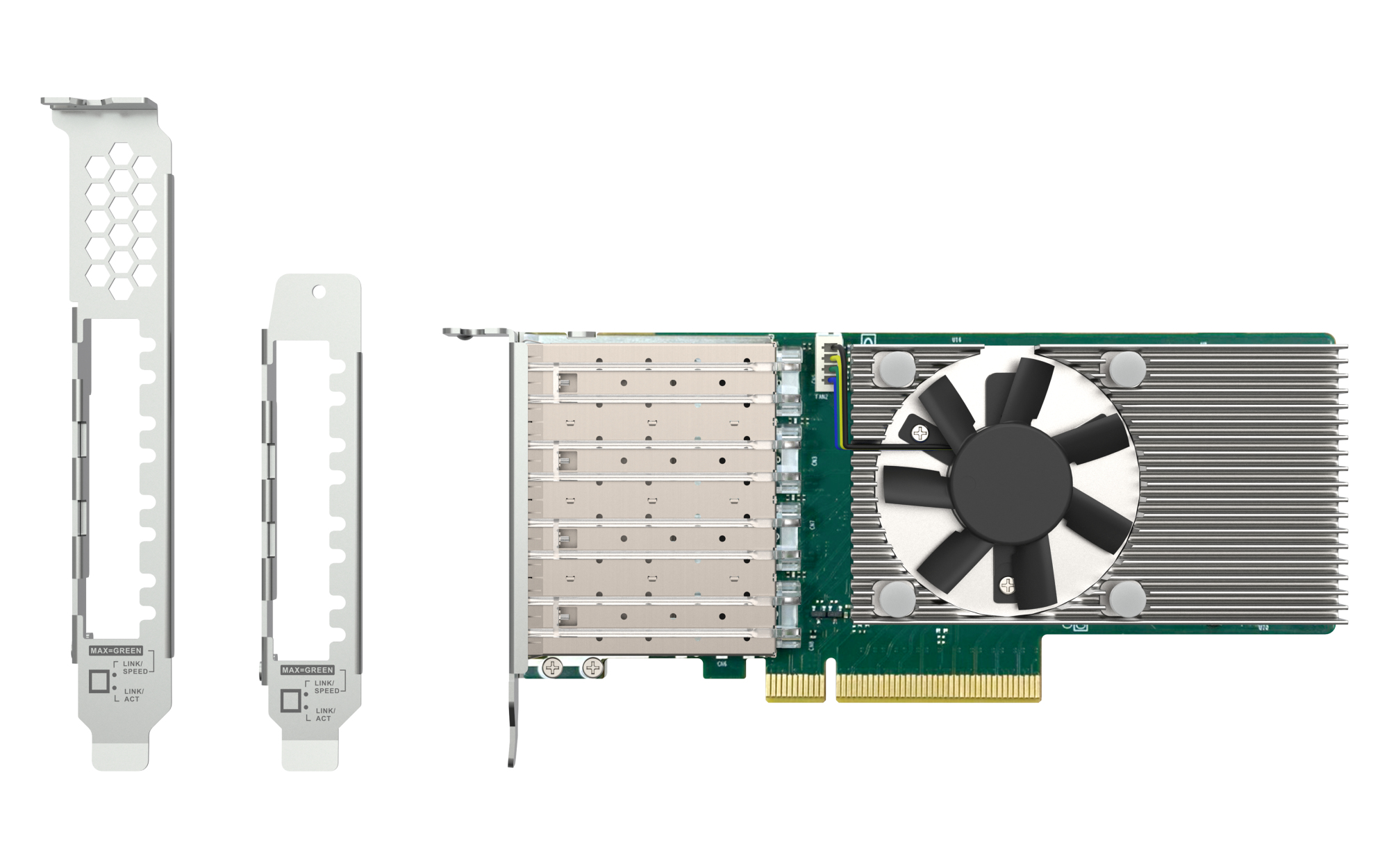

| Mounting brackets included | Yes |
| Quick installation guide | Yes |
