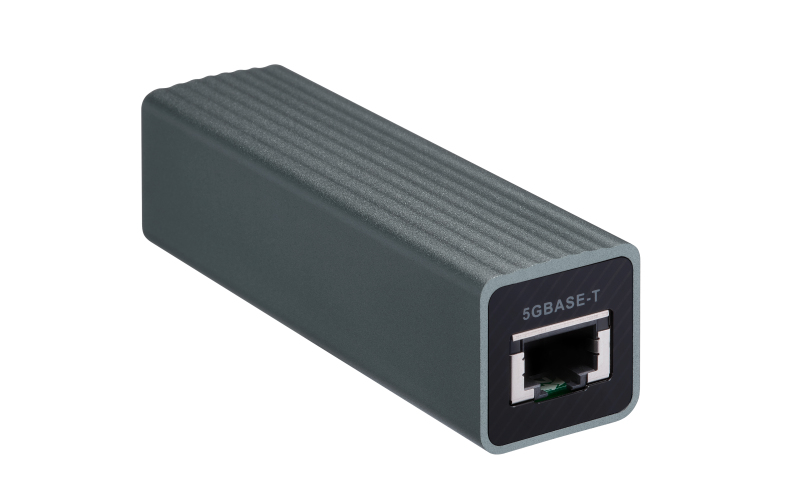

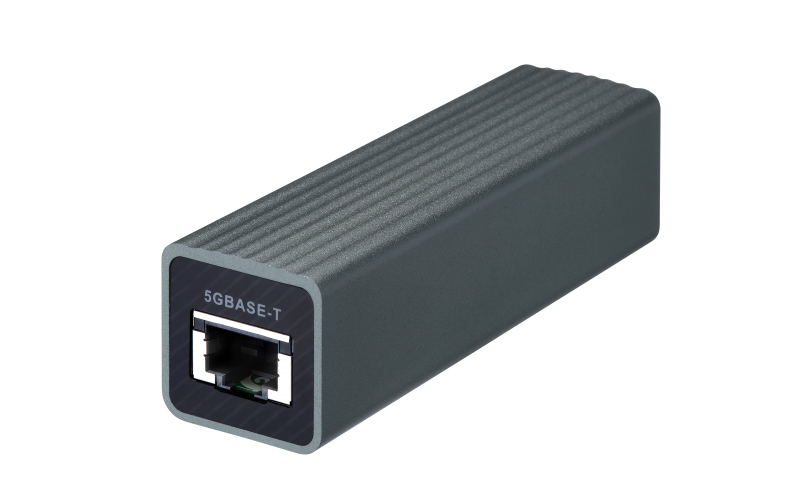

QNA-UC5G1T network card Ethernet 5000 Mbit/s
Model QNA-UC5G1TEAN 885022017584
28 specifications
- Speed5000 Mbit/s
- ConnectivityWired
- Weight110 g
- ColourBlack
- InternalNo
- USB poweredYes
Overview
- Speed
- 5000 Mbit/s
- Connectivity
- Wired
- Weight
- 110 g
- Colour
- Black
- Internal
- No
- USB powered
- Yes
- Brand
- QNAP
- Category
- Network Card
- Model
- QNA-UC5G1T
- Part number
- QNA-UC5G1T
- EAN / UPC
- 885022017584, 4713213515655, 7330381051890
- Also known as
- QNAP QNA-UC5G1T network card Ethernet 5000 Mbit/s
Specifications
28 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 5000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| LAN controller | Aquantia AQC111U |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC |
| Product colour | Black |
| LED indicators | Activity, LAN, Power, Speed |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 28 mm |
| Depth | 99.8 mm |
| Height | 27.9 mm |
| Weight | 110 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 210 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB Type-C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Quick start guide | Yes |
