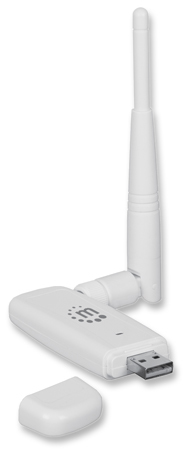

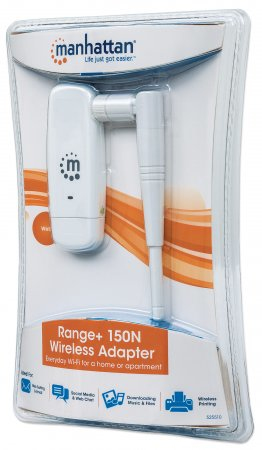

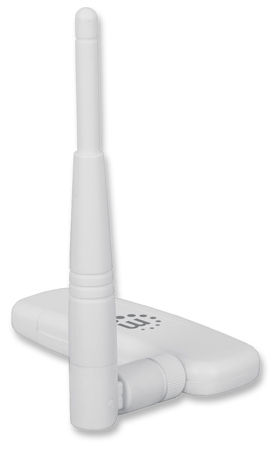

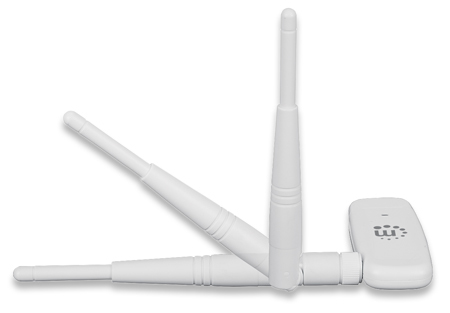

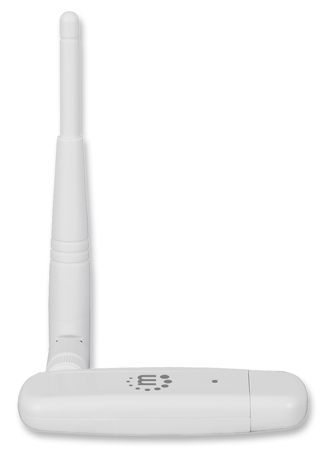

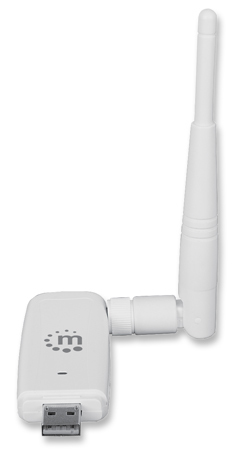

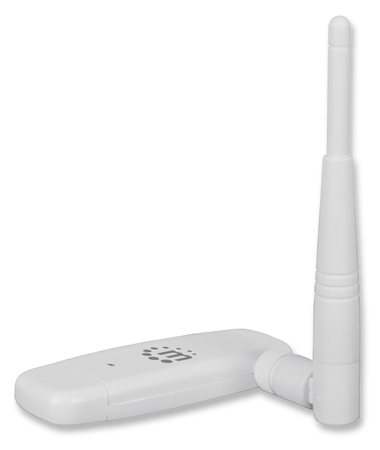

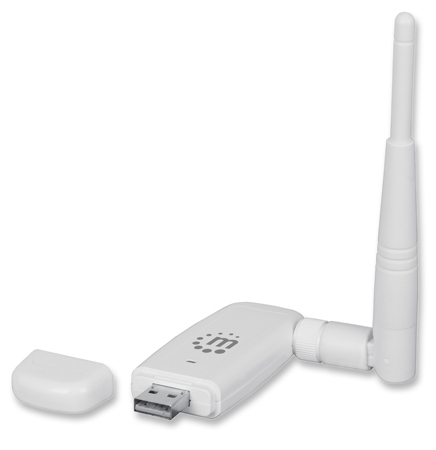

Manhattan Range+ 150N
Model Range+ 150NPart no. 525510EAN 766623525510
35 specifications
- Speed150 Mbit/s
- ConnectivityWireless
- Weight170 g
- ColourWhite
- InternalNo
- USB poweredYes
Overview
- Speed
- 150 Mbit/s
- Connectivity
- Wireless
- Weight
- 170 g
- Colour
- White
- Internal
- No
- USB powered
- Yes
- Brand
- Manhattan
- Category
- Network Card
- Model
- Range+ 150N
- Part number
- 525510
- EAN / UPC
- 766623525510
- Also known as
- Manhattan Range+ 150N WLAN 150 Mbit/s
Specifications
35 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB ports quantity | 1 |
| USB version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 150 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Frequency range | 2.4 - 2.4835 GHz |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA, WPA2 |
| Quality of Service (QoS) support | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | White |
| Antenna | No |
| Chipset | Ralink RT3070 |
| LED indicators | Yes |
| Receiver sensitivity | 150 Mbps OFDM: -61 dBm +/- 1.5 dBm 54 Mbps OFDM: -65 dBm +/- 1.5 dBm 11 Mbps CCK: -76 dBm +/- 1.5 dBm |
| Certification | FCC Class B, CE |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 28 mm |
| Depth | 89.6 mm |
| Height | 10 mm |
| Weight | 170 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Gain | 3 dBi |
| Detachable antenna(s) | Yes |
| Quick start guide | Yes |
Compare Manhattan Range+ 150N
Compare any products- Manhattan Range+ 150N vsManhattan USB-C to Gigabit (10/100/1000 Mbps) Network Adapter, White, supports up to 2 Gbps full-duplex transfer speed, RJ45, Three Year Warranty, Equivalent toCompare specs

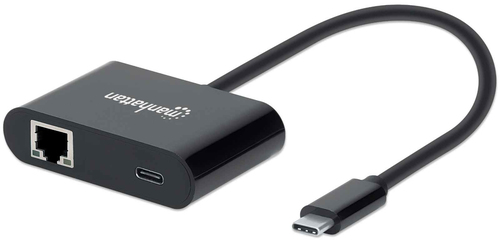

- Manhattan Range+ 150N vsManhattan USB-C to Gigabit Network and USB-C (inc Power Delivery)Compare specs

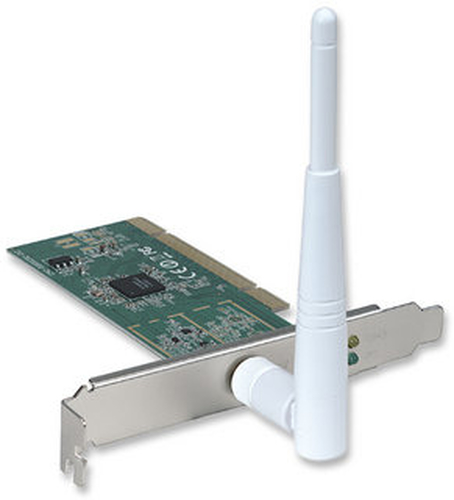

- Manhattan Range+ 150N vsManhattan 150N Internal WLAN 150 Mbit/sCompare specs
