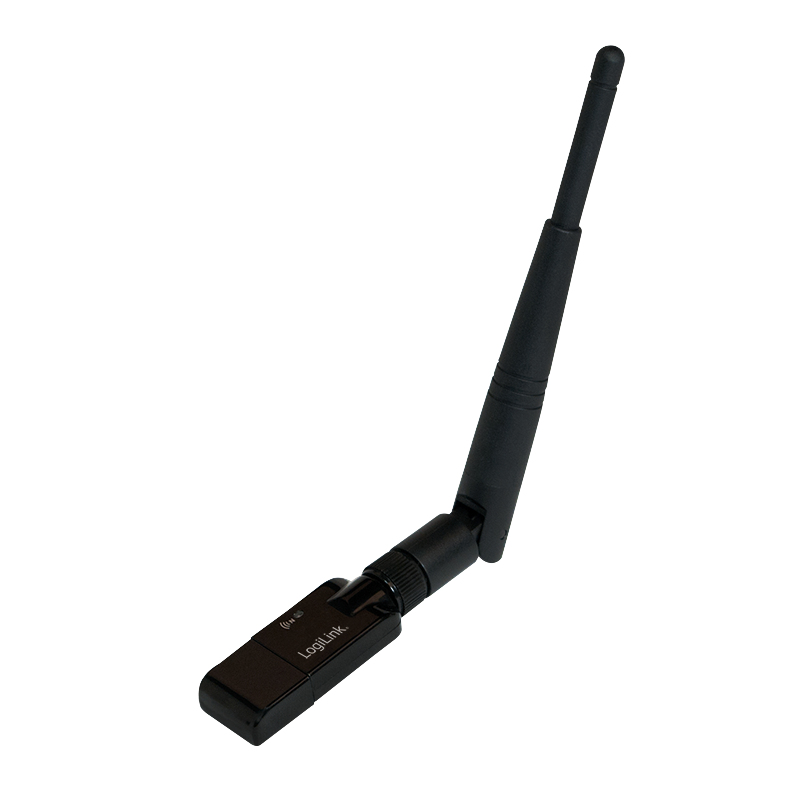

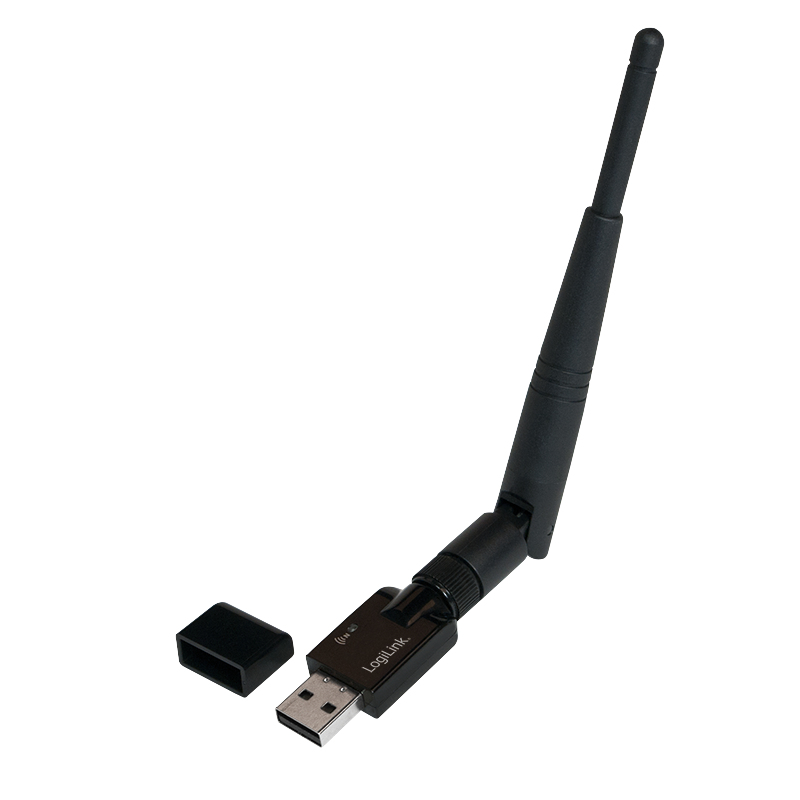

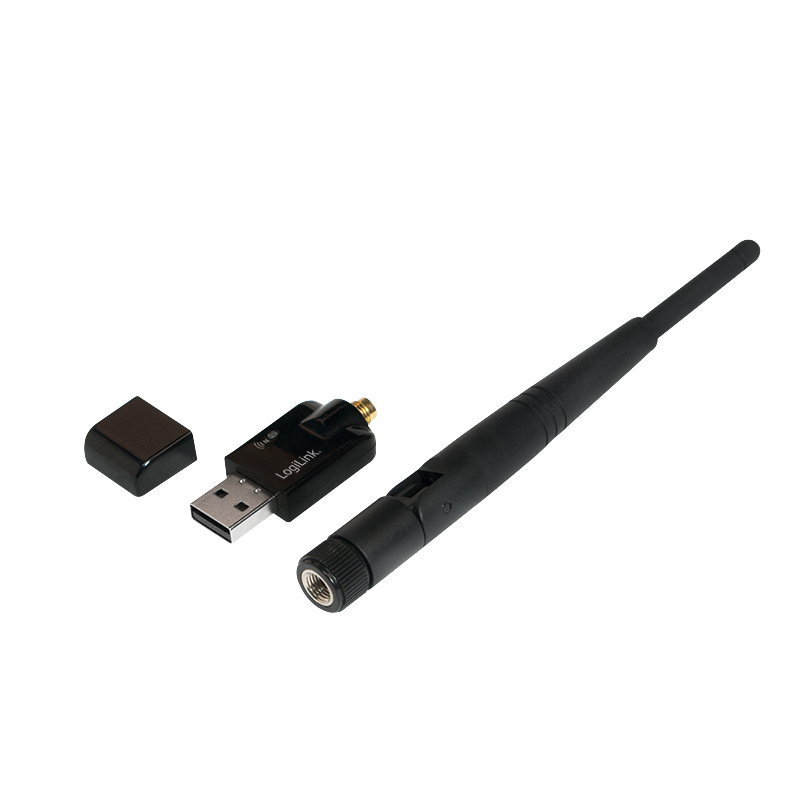

LogiLink WL0150A network card WLAN 300 Mbit/s

LogiLink WL0150A network card WLAN 300 Mbit/s

Model WL0150AEAN 4014619693405

45 specifications
  • Speed300 Mbit/s
  • ConnectivityWireless
  • Weight20 g
  • ColourBlack
  • InternalNo
  • Output voltage5 V
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Wireless
Weight
20 g
Colour
Black
Internal
No
Output voltage
5 V
Brand
LogiLink
Category
Network Card
Model
WL0150A
Part number
WL0150A
EAN / UPC
4014619693405, 4052792013252
Also known as
LogiLink WL0150A network card WLAN 300 Mbit/s

Specifications

45 specifications in 10 groups

Ports & interfaces

Connectivity technologyWireless
Host interfaceUSB
InterfaceWLAN

Network

Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.412 - 2.4835 GHz
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported300 Mbit/s
Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA2

Design

InternalNo
Product colourBlack
AntennaYes
Antenna designExternal
Antenna connector typeSMA
ChipsetRTL8192EU
LED indicatorsActivity, Link

Power

Output voltage5 V
Power consumption160 mA

System requirements

Windows operating systems supportedWindows 10, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedMac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Ma
Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width180 mm
Depth58 mm
Height18 mm
Weight20 g

Packaging data

Quantity per pack1 pc(s)
Package width105 mm
Package depth163 mm
Package height20 mm
Package weight78 g

Logistics data

Master (outer) case width460 mm
Master (outer) case length340 mm
Master (outer) case height185 mm
Master (outer) case gross weight4.69 kg
Products per master (outer) case60 pc(s)

Other features

Gain3 dBi
Detachable antenna(s)Yes
Antennas quantity1
