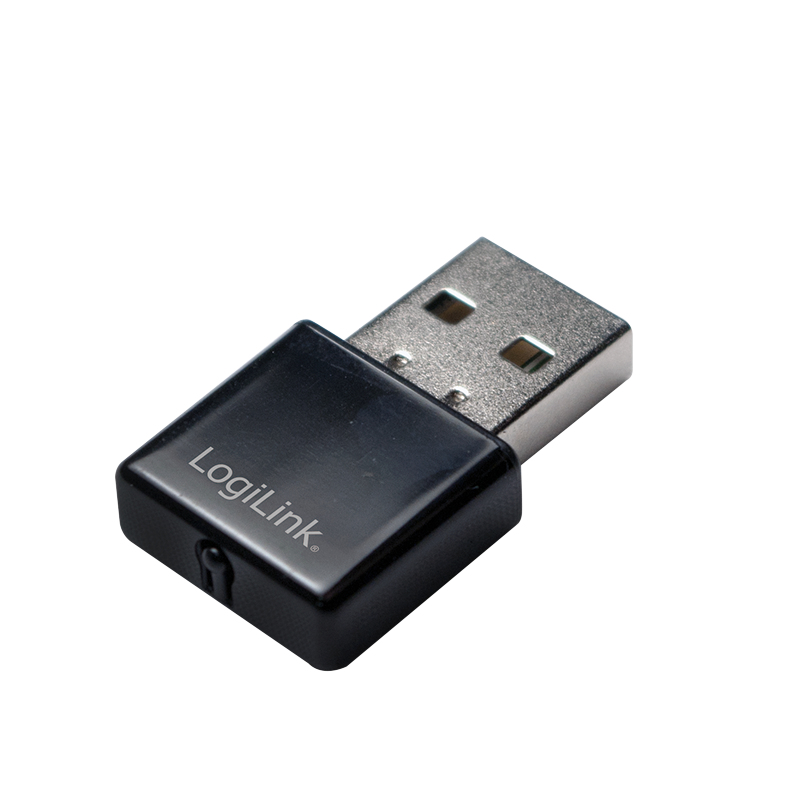

LogiLink WL0086B network card WLAN 300 Mbit/s
LogiLink

WL0086B network card WLAN 300 Mbit/s

Model WL0086BEAN 4052792005202

38 specifications
  • Speed300 Mbit/s
  • ConnectivityWireless
  • InternalNo
  • Input current0.16 A
  • Linux operating systems supportedYes
  • Operating temperature (T-T)10 - 60 °C
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Wireless
Internal
No
Input current
0.16 A
Linux operating systems supported
Yes
Operating temperature (T-T)
10 - 60 °C
Brand
LogiLink
Category
Network Card
Model
WL0086B
Part number
WL0086B
EAN / UPC
4052792005202
Also known as
LogiLink WL0086B network card WLAN 300 Mbit/s

Specifications

38 specifications in 9 groups

Ports & interfaces

Connectivity technologyWireless
Host interfaceUSB
InterfaceWLAN
USB version2.0

Network

Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.4 - 2.4835 GHz
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported11,54,300 Mbit/s
Security algorithms64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS

Design

InternalNo
ChipsetRealtek RTL8192EU
WPS push buttonYes
LED indicatorsActivity, Link

Power

Input current0.16 A
Output voltage5 V

System requirements

Windows operating systems supportedWindows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)10 - 60 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Packaging data

Drivers includedYes
Quantity per pack1 pc(s)
Package width173 mm
Package depth138 mm
Package height25 mm

Packaging content

Quick installation guideYes
ManualYes

Logistics data

Harmonized System (HS) code85176990
Master (outer) case width520 mm
Master (outer) case length366 mm
Master (outer) case height185 mm
Products per master (outer) case40 pc(s)
