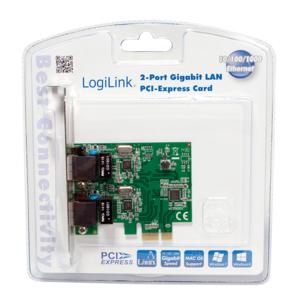

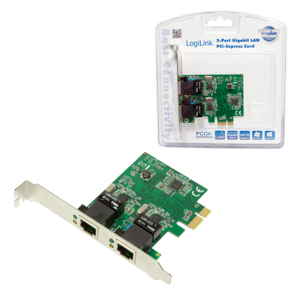

PC0075 network card Internal Ethernet 1000 Mbit/s
Model PC0075EAN 4052792030600
31 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourGreen
- InternalYes
- Width92.6 mm
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Green
- Internal
- Yes
- Width
- 92.6 mm
- Brand
- LogiLink
- Category
- Network Card
- Model
- PC0075
- Part number
- PC0075
- EAN / UPC
- 4052792030600
- Also known as
- LogiLink PC0075 network card Internal Ethernet 1000 Mbit/s
Specifications
31 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Quality of Service (QoS) support | Yes |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Chipset | Realtek 8111F+Asmedia 1182E |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92.6 mm |
| Depth | 120 mm |
| Height | 21.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 30 mm |
| Package depth | 171 mm |
| Package height | 185 mm |
| Package weight | 140 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Flow control support | Yes |
