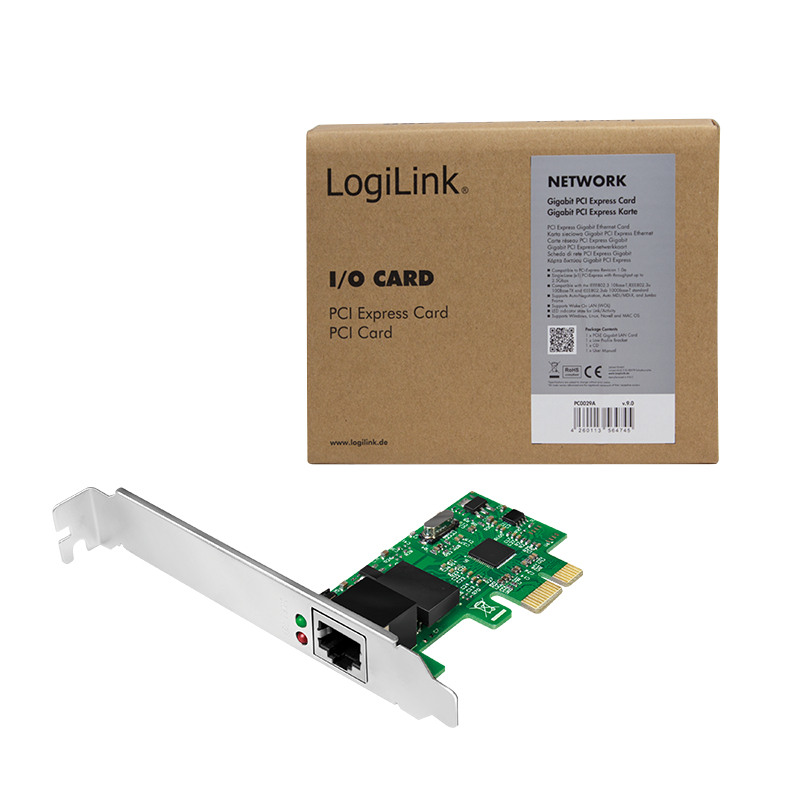

PC0029A network card Internal Ethernet 1000 Mbit/s
Model PC0029AEAN 2000000173252
25 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight30 g
- ColourGreen
- InternalYes
- Width19 mm
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 30 g
- Colour
- Green
- Internal
- Yes
- Width
- 19 mm
- Brand
- LogiLink
- Category
- Network Card
- Model
- PC0029A
- Part number
- PC0029A
- EAN / UPC
- 2000000173252
- Also known as
- LogiLink PC0029A network card Internal Ethernet 1000 Mbit/s
Specifications
25 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | RJ-45 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Product colour | Green |
| Certification | ROHS, CE, FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 19 mm |
| Depth | 68 mm |
| Height | 120 mm |
| Weight | 30 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Link/Act LED | Yes |
| Supported data transfer rates | 10/100/1000 Mbps |
