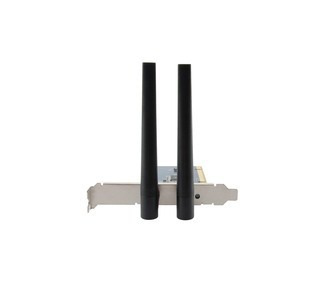

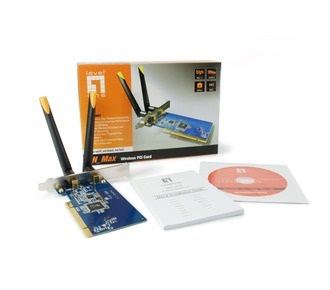

LevelOne WNC-0601 network card Internal WLAN 300 Mbit/s

LevelOne WNC-0601 network card Internal WLAN 300 Mbit/s

Model WNC-0601EAN 4015867141861

31 specifications
  • Speed300 Mbit/s
  • ConnectivityWireless
  • ColourBlack, Silver
  • InternalYes
  • Compatible operating systemsWindows 2000/XP/Vista 32/64-bit.
  • Operating temperature (T-T)0 - 55 °C
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Wireless
Colour
Black, Silver
Internal
Yes
Compatible operating systems
Windows 2000/XP/Vista 32/64-bit.
Operating temperature (T-T)
0 - 55 °C
Brand
LevelOne
Category
Network Card
Model
WNC-0601
Part number
WNC-0601
EAN / UPC
4015867141861
Also known as
LevelOne WNC-0601 network card Internal WLAN 300 Mbit/s

Specifications

31 specifications in 7 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI
InterfaceWLAN

Network

Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.4 - 2.4835 GHz
WLAN data transfer rates supported300 Mbit/s
Modulation16-QAM, 64-QAM, BPSK, CCK, OFDM, QPSK
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Media access protocolCSMA/CA

Design

InternalYes
Component forPC
Product colourBlack, Silver
LED indicatorsLAN, Power
CertificationCE, FCC.

System requirements

Compatible operating systemsWindows 2000/XP/Vista 32/64-bit.

Operational conditions

Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)0 - 85%

Weight & dimensions

Width120 mm
Depth65 mm
Height18 mm

Other features

Gain2, 4
Compliance industry standardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Power requirements3.3 V
Channels quantity13 channels
Dimensions (WxDxH)120 x 65 x 18 mm
Link/Act LEDYes
Supported data transfer rates1/2/5.5/6/9/11/12/18/24/36/48/54/300 Mbit/s
Wireless connectionYes
