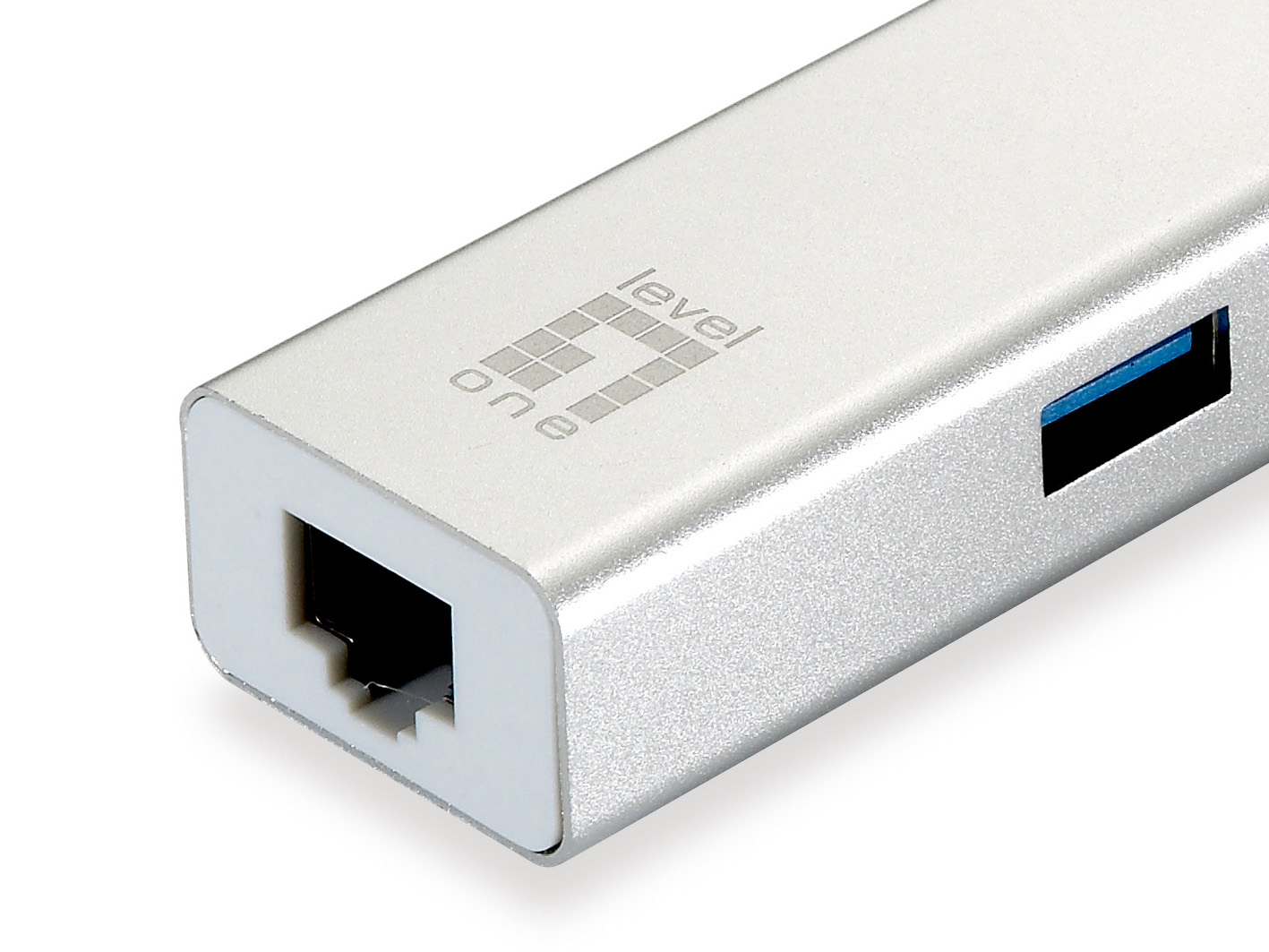

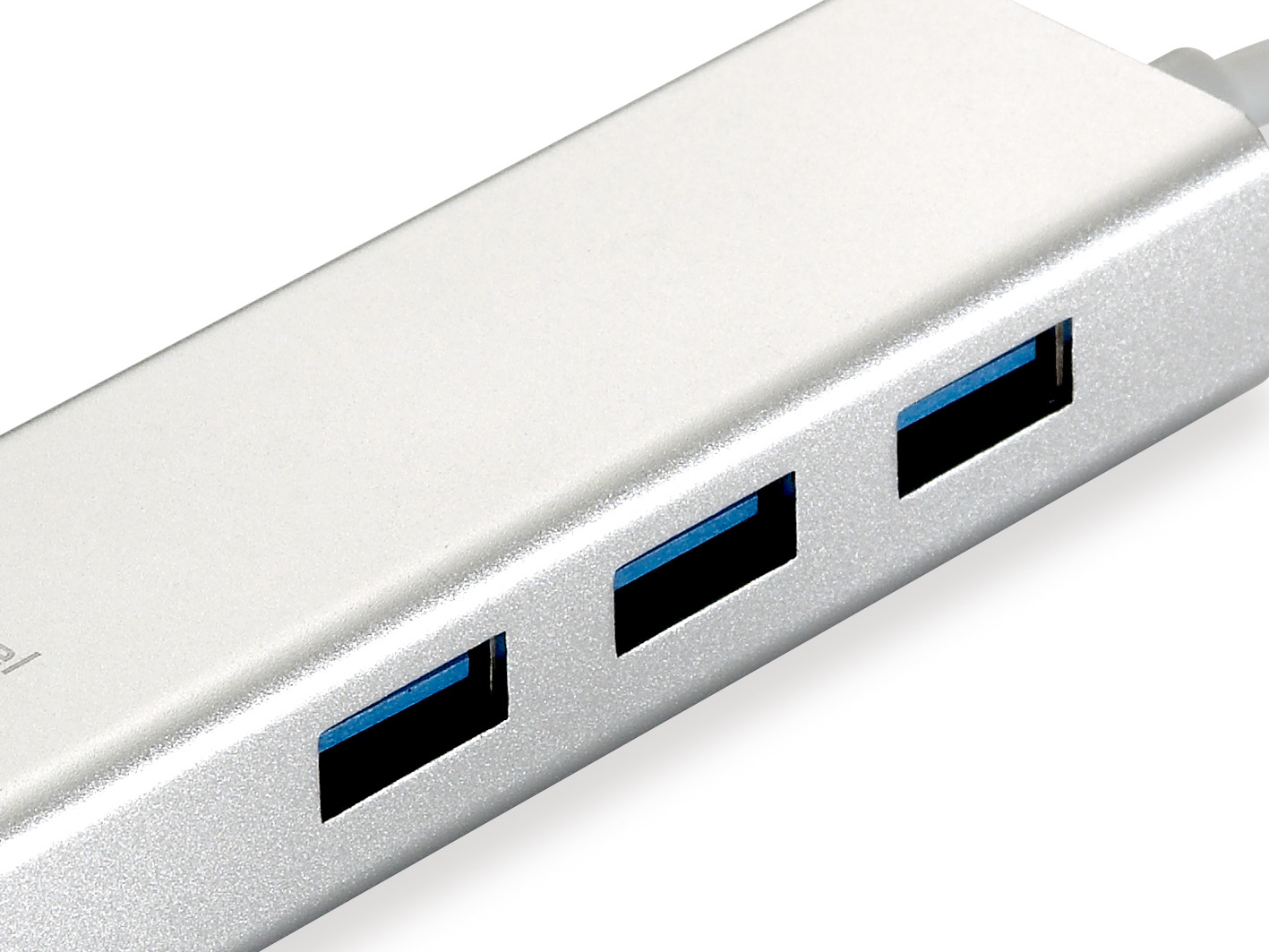

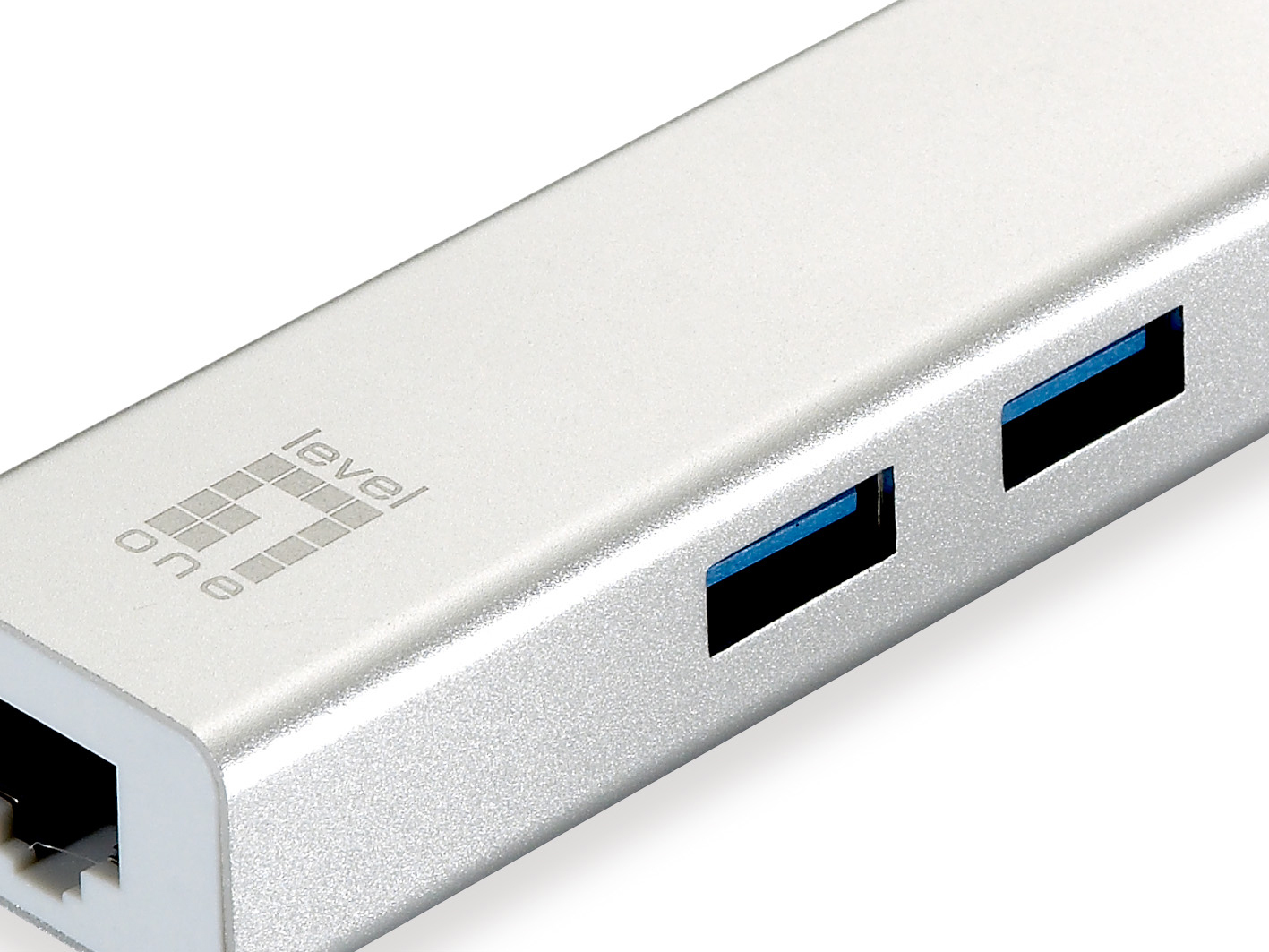

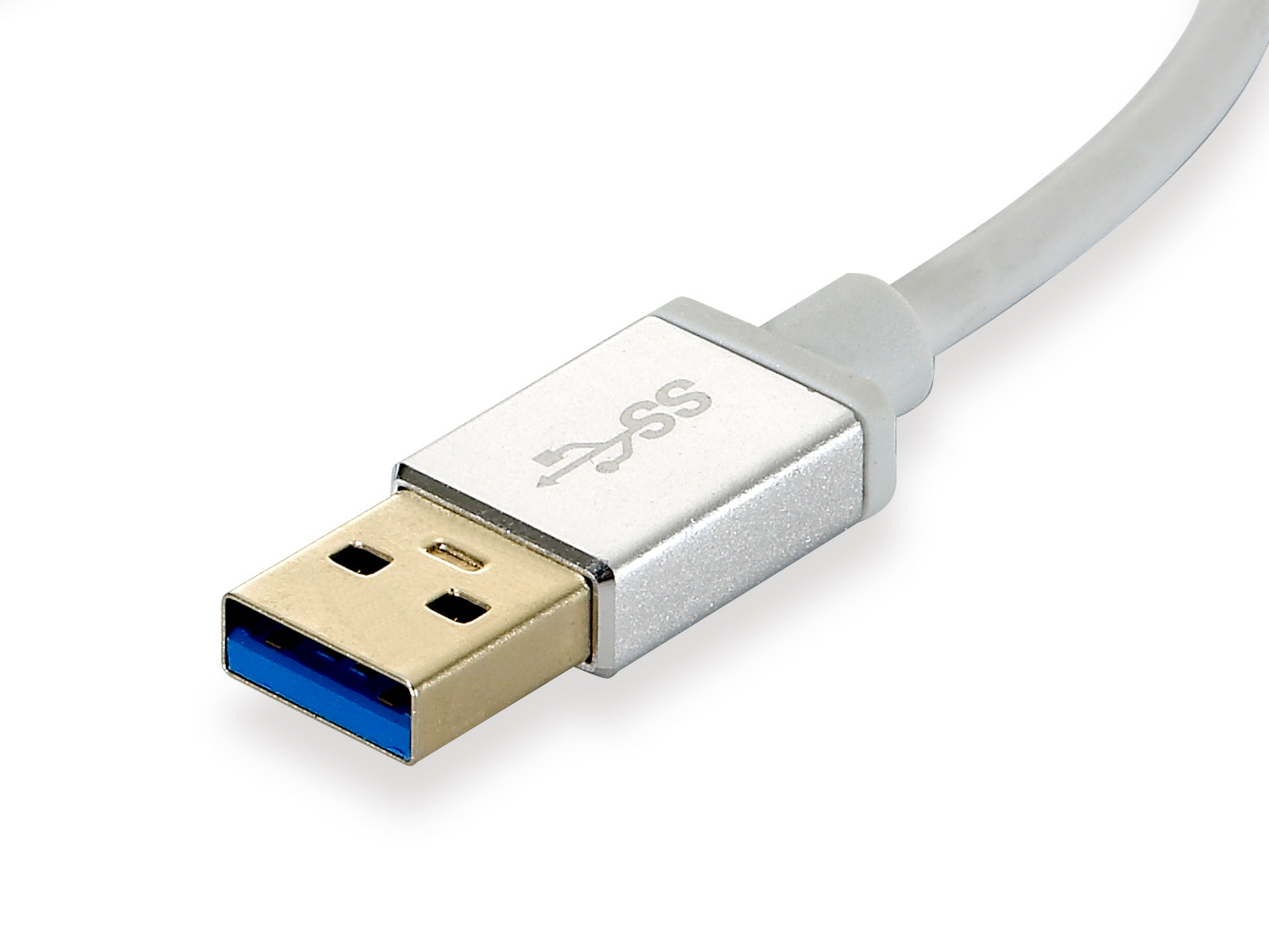

LevelOne Gigabit USB Network Adapter, USB Hub
LevelOne

Gigabit USB Network Adapter, USB Hub

Model USB-0503EAN 4015867190562

49 specifications
  • Speed1000 Mbit/s
  • ConnectivityWired
  • Weight42 g
  • ColourSilver, White
  • InternalNo
  • Input current0.9 A
See all specifications

Overview

Speed
1000 Mbit/s
Connectivity
Wired
Weight
42 g
Colour
Silver, White
Internal
No
Input current
0.9 A
Brand
LevelOne
Category
Network Card
Model
USB-0503
Part number
USB-0503
EAN / UPC
4015867190562, 4015867224069, 4015867226674
Also known as
LevelOne Gigabit USB Network Adapter, USB Hub

Specifications

49 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
USB ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity3
USB version3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000BaseT(X)
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Wake-on-LAN readyYes
Full duplexYes
Supported network protocolsIPv4/IPv6

Design

InternalNo
Product colourSilver, White
Hot-swapYes
Plug and PlayYes
Country of originChina
CertificationCE

Power

Input current0.9 A
Output voltage5 V
USB poweredYes

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premiu
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-5 - 80 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Weight & dimensions

Width27 mm
Depth16 mm
Height95 mm
Weight42 g

Packaging data

Package typeBox
Package width90 mm
Package depth21 mm
Package height165 mm
Package weight60 g

Packaging content

Quick installation guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case width33.5 mm
Master (outer) case length20 mm
Master (outer) case height44 mm
Master (outer) case gross weight5.5 kg
Products per master (outer) case80 pc(s)

Other features

Flow control supportYes
