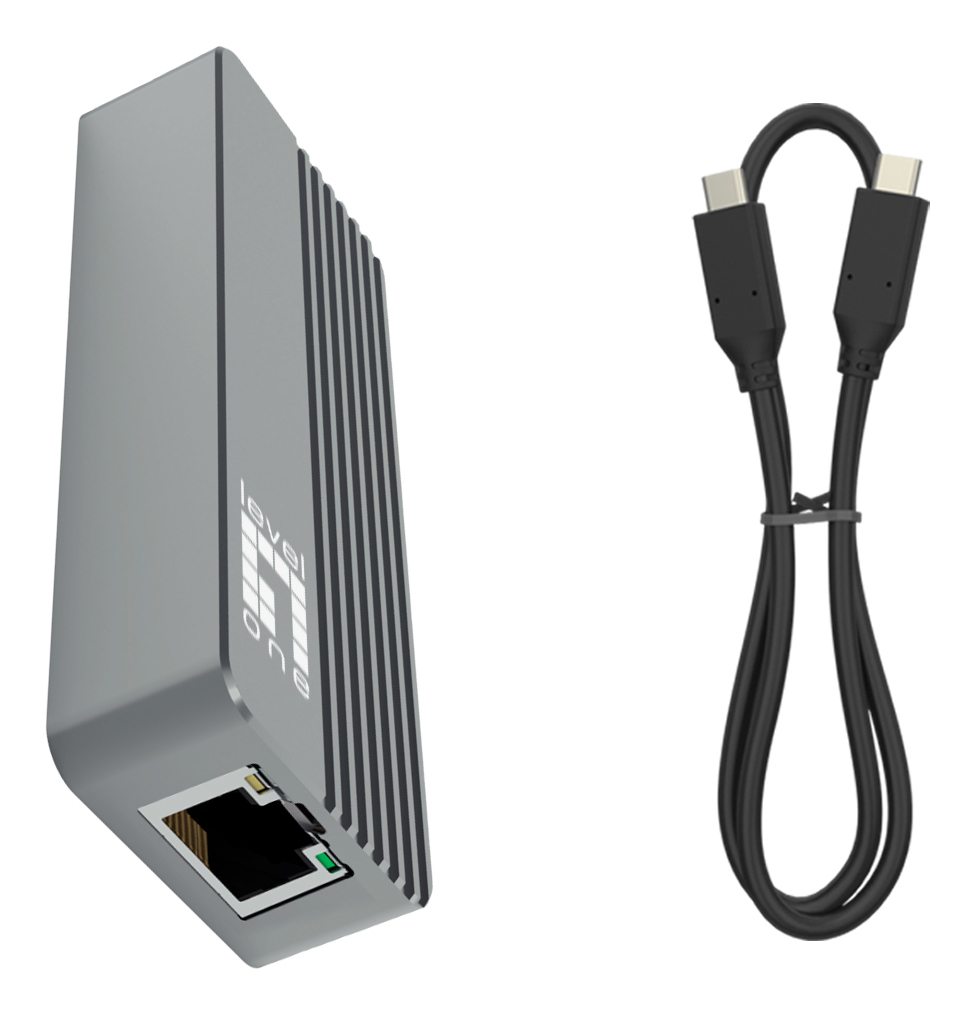

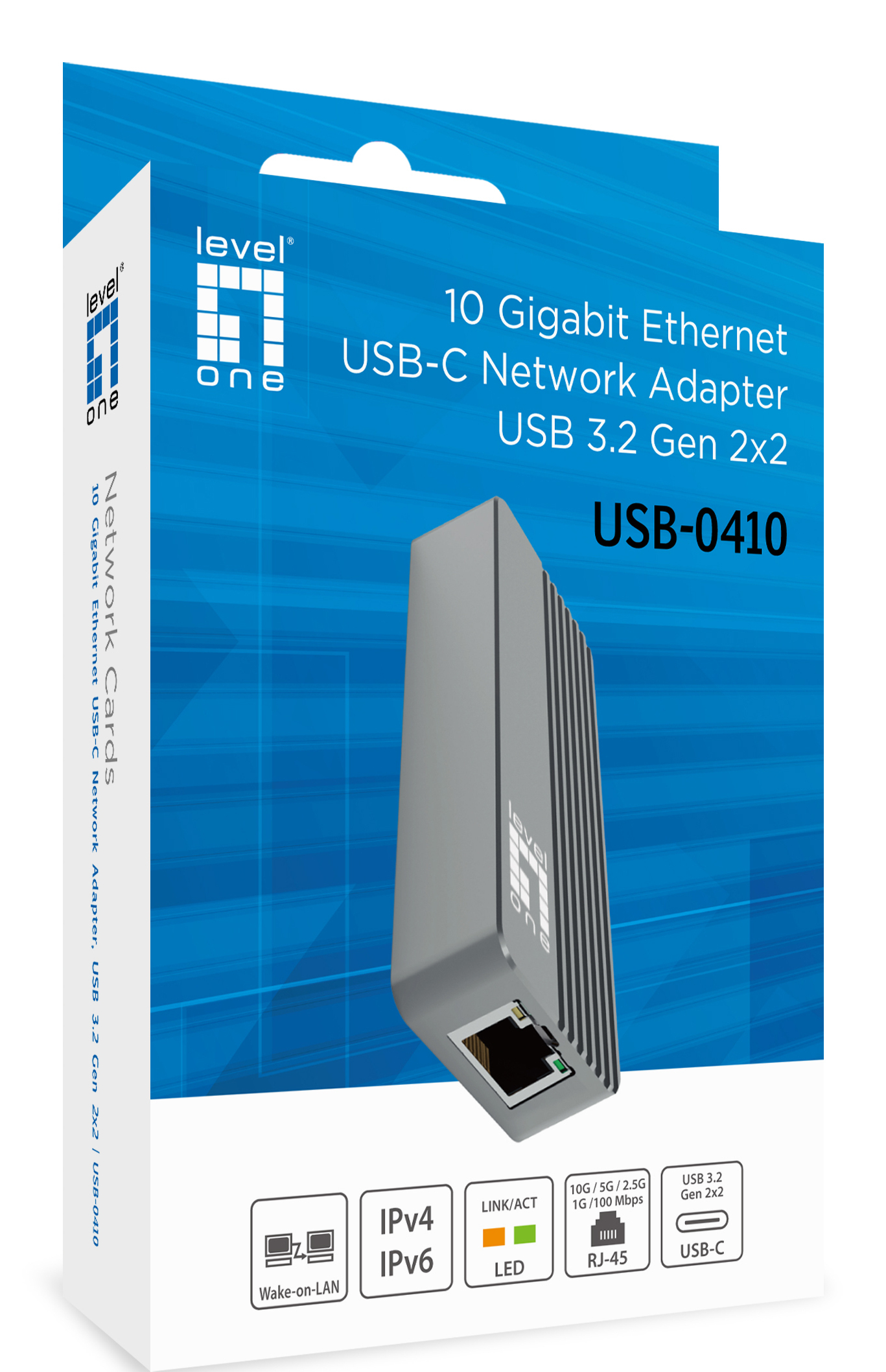

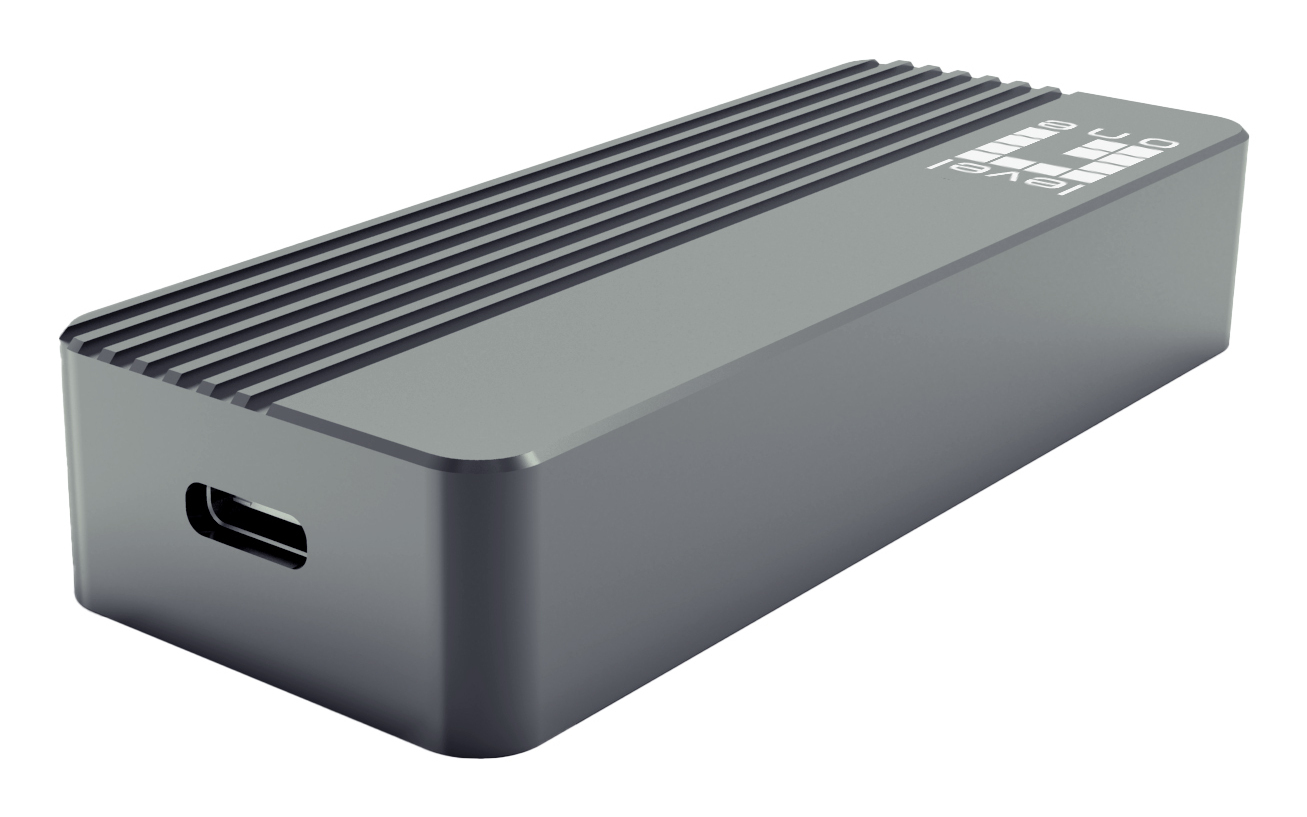

USB-0410 Ethernet 10000 Mbit/s
Model USB-0410Part no. 54003407101EAN 4015867245064
44 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight68.2 g
- ColourGrey
- InternalNo
- Input current3 A
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 68.2 g
- Colour
- Grey
- Internal
- No
- Input current
- 3 A
- Brand
- LevelOne
- Category
- Network Card
- Model
- USB-0410
- Part number
- 54003407101
- EAN / UPC
- 4015867245064
- Also known as
- LevelOne USB-0410 Ethernet 10000 Mbit/s
Specifications
44 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| USB version | USB 3.2 Gen 2x2 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2.5GBASE-T, 10GBASE-T |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Jumbo frames | 16 |
| Jumbo frames support | Yes |
| Quality of Service (QoS) support | Yes |
| VLAN tagging | Yes |
| Bluetooth | No |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Grey |
| Plug and Play | Yes |
| LED indicators | Link, Activity, Speed |
Power
| Specification | Value |
|---|---|
| Input current | 3 A |
| Power consumption (typical) | 2.5 W |
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead, Mercury, Cadmium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82.8 mm |
| Depth | 32.5 mm |
| Height | 15.5 mm |
| Weight | 68.2 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Hanging box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
