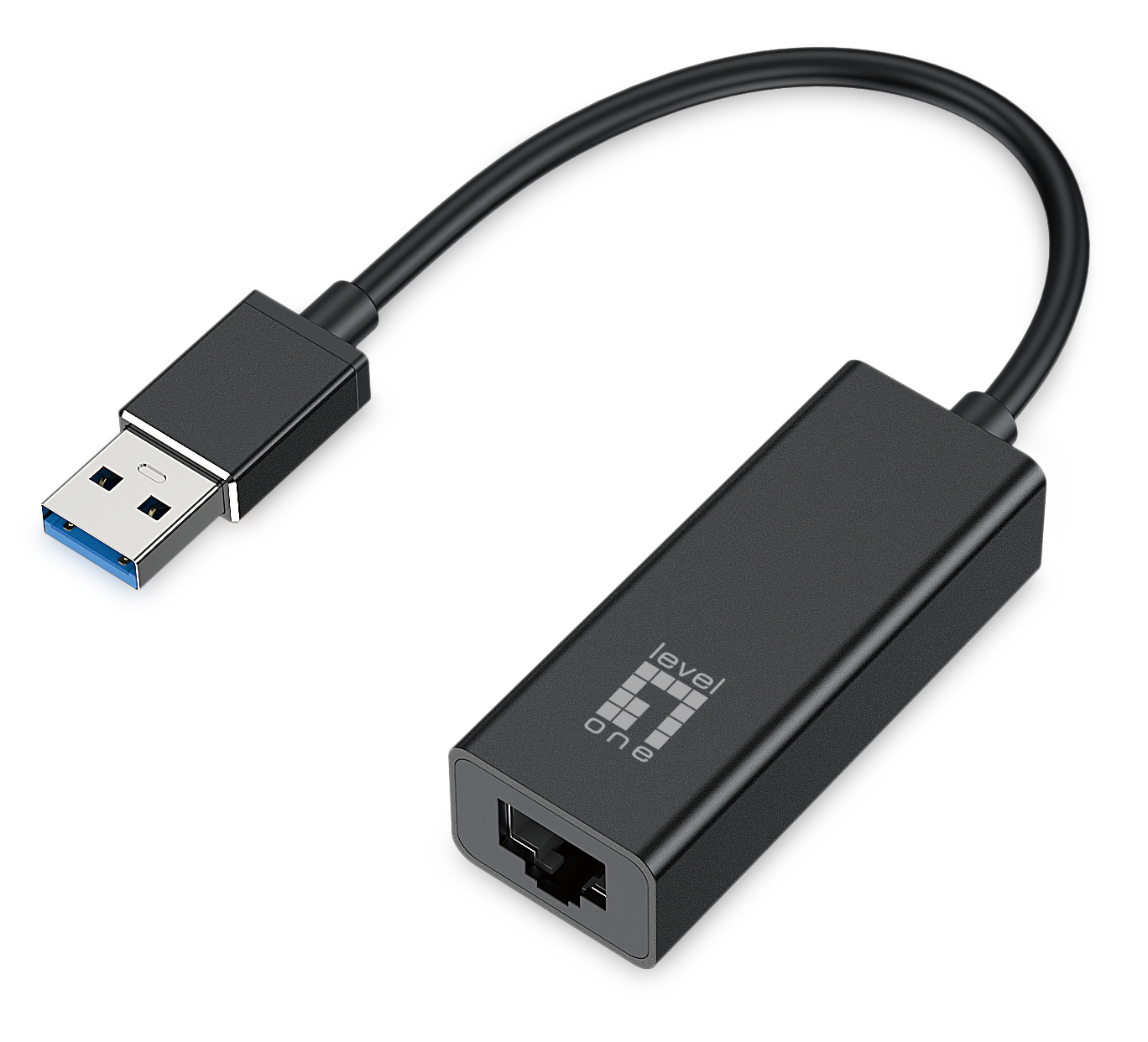

USB-0401 Gigabit USB Network Adapter
Model USB-0401EAN 5711045320590
41 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight26.5 g
- ColourBlack
- InternalNo
- Output voltage5 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 26.5 g
- Colour
- Black
- Internal
- No
- Output voltage
- 5 V
- Brand
- LevelOne
- Category
- Network Card
- Model
- USB-0401
- Part number
- USB-0401
- EAN / UPC
- 5711045320590, 151903621127, 846359000724, 854635820089 +10 more
- Also known as
- LevelOne USB-0401 Gigabit USB Network Adapter
Specifications
41 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black |
| LED indicators | Yes |
| Country of origin | China |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Power consumption (typical) | 2 W |
| Power consumption | 900 mA |
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultim |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -20 - 45 °C |
| Storage relative humidity (H-H) | 20 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 23.5 mm |
| Depth | 16.5 mm |
| Height | 245 mm |
| Weight | 26.5 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 85 mm |
| Package depth | 22 mm |
| Package height | 158 mm |
| Package weight | 56.5 g |
Packaging content
| Specification | Value |
|---|---|
| Resource CD | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
