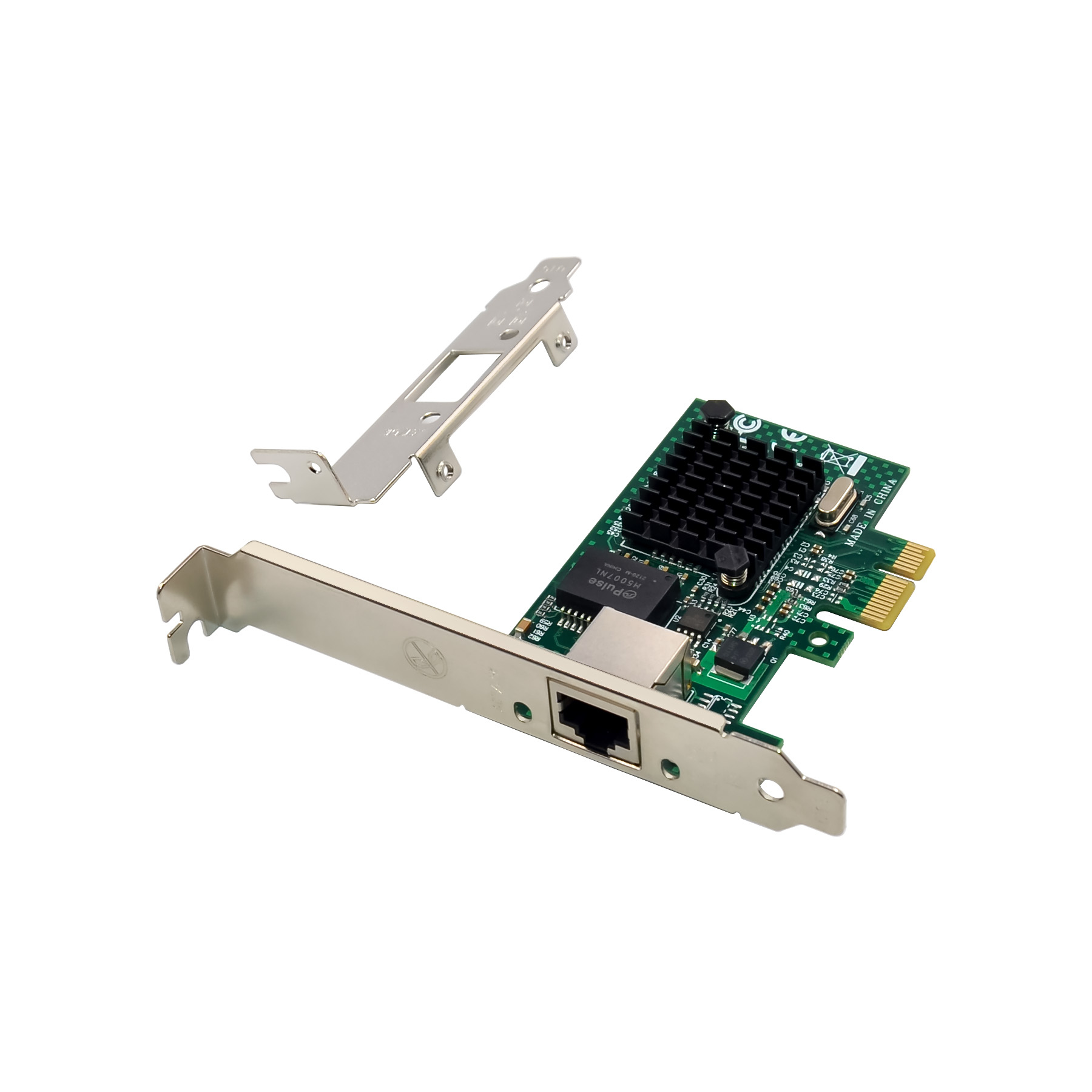

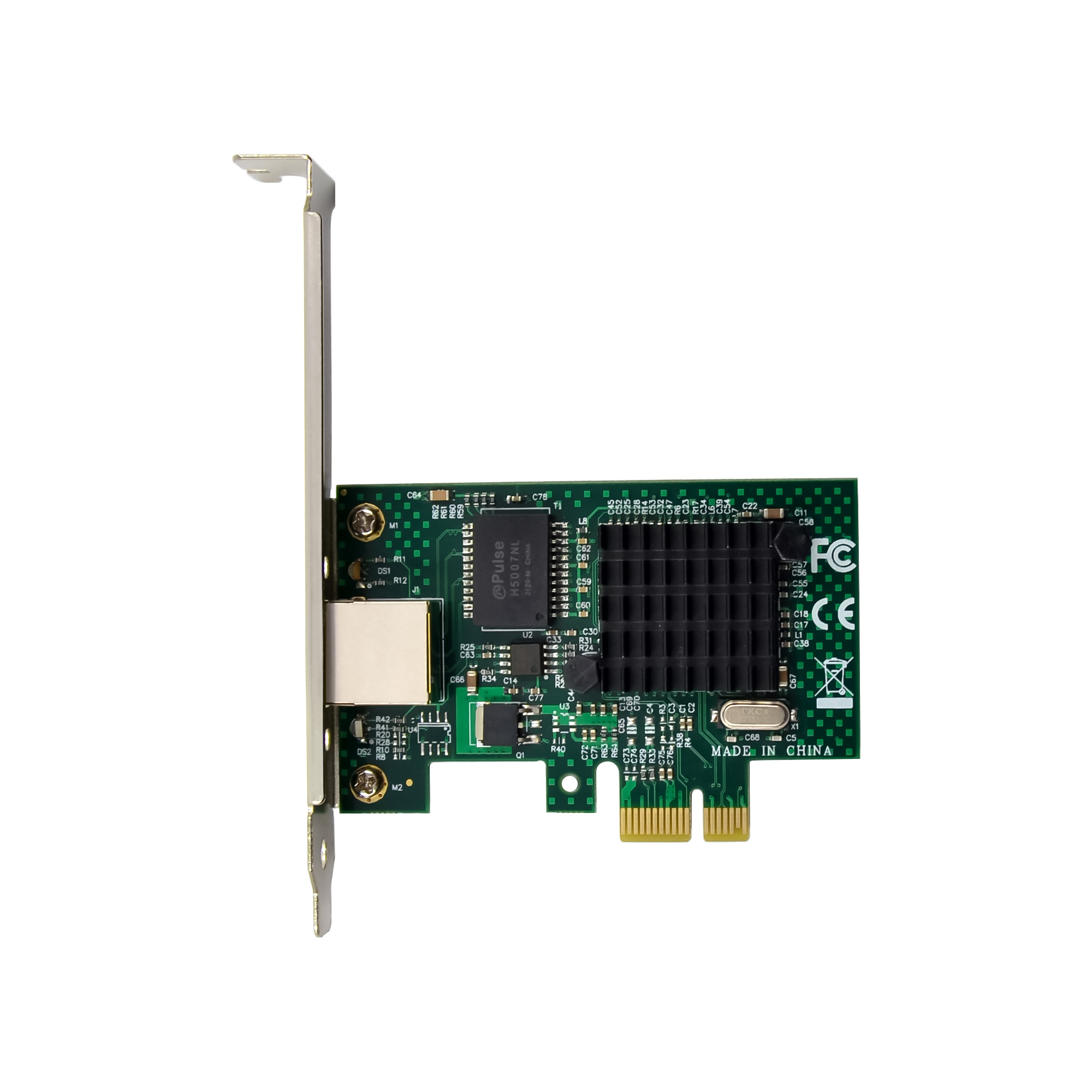

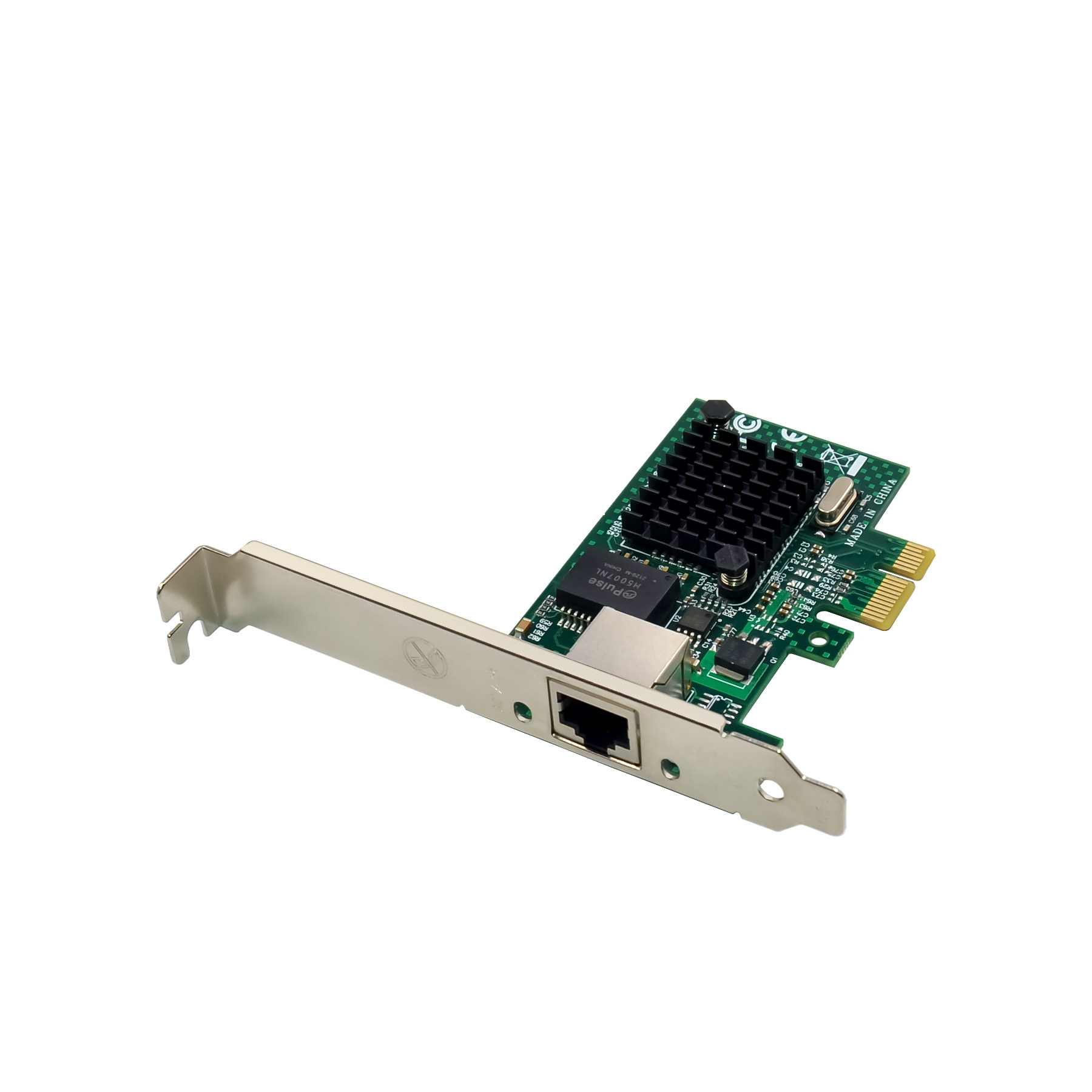

Gigabit PCIe Network Card, Low Profile Bracket included, Low Profile Bracket
Model GNC-0112EAN 5054629408254
29 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight45.6 g
- ColourBlack, Green, Silver
- InternalYes
- Operating temperature (T-T)0 - 45 °C
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 45.6 g
- Colour
- Black, Green, Silver
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- LevelOne
- Category
- Network Card
- Model
- GNC-0112
- Part number
- GNC-0112
- EAN / UPC
- 5054629408254, 846359023723, 4015867183854, 4015867228913 +2 more
- Also known as
- LevelOne Gigabit PCIe Network Card, Low Profile Bracket included, Low Profile Bracket
Specifications
29 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1ab, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black, Green, Silver |
| Chipset | Broadcom BCM5751 |
| LED indicators | Activity, Link |
| Certification | CE RoHS |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows XP |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82 mm |
| Depth | 56 mm |
| Height | 20 mm |
| Weight | 45.6 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
