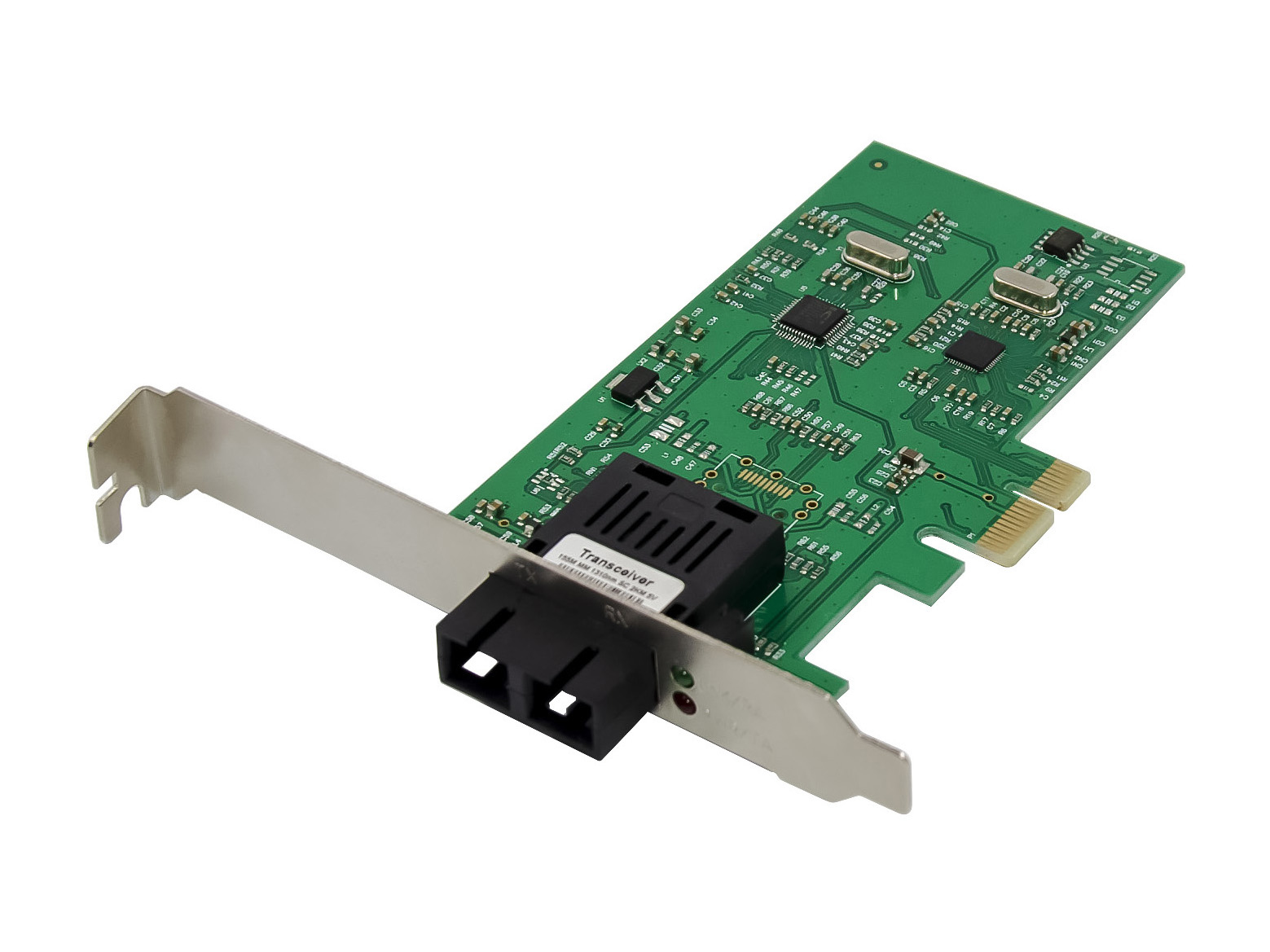

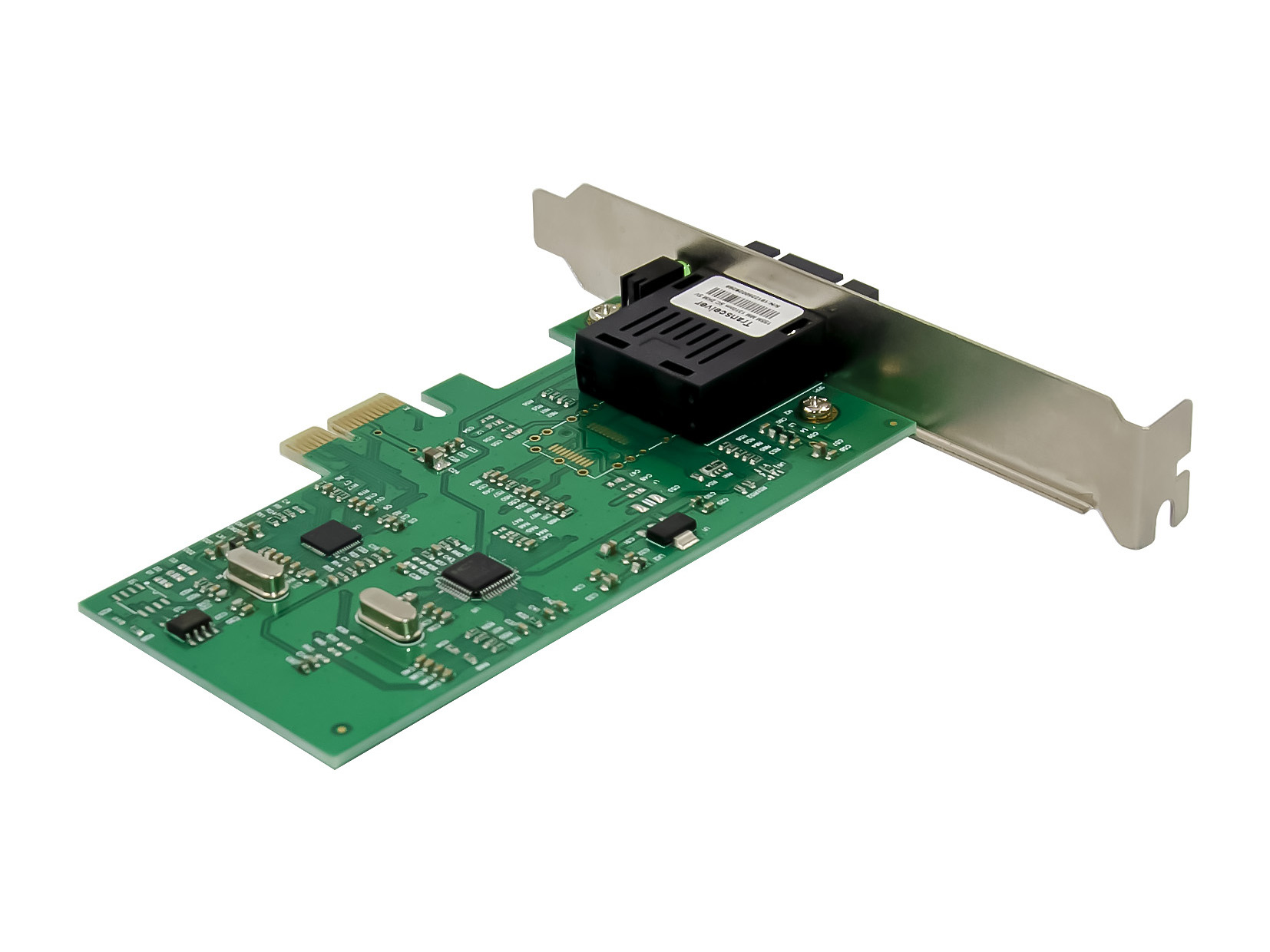

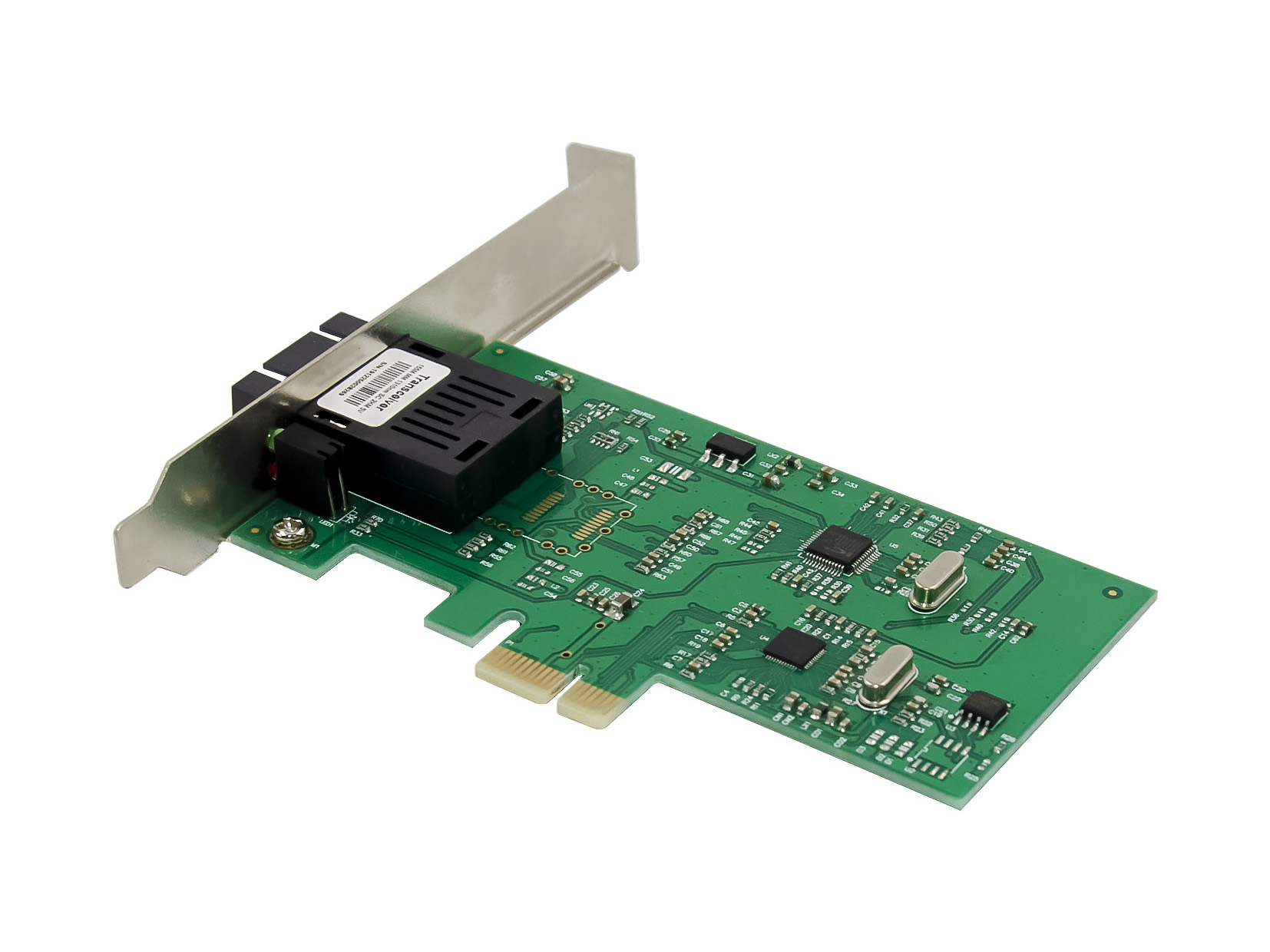

Fast Ethernet Fiber PCIe Network Card, 1 x SC Multi-Mode Fiber
Model FNC-0115EAN 4015867142448
39 specifications
- Speed200 Mbit/s
- ConnectivityWired
- Weight58 g
- ColourAluminium
- InternalYes
- Operating temperature (T-T)0 - 50 °C
Overview
- Speed
- 200 Mbit/s
- Connectivity
- Wired
- Weight
- 58 g
- Colour
- Aluminium
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- LevelOne
- Category
- Network Card
- Model
- FNC-0115
- Part number
- FNC-0115
- EAN / UPC
- 4015867142448, 4015867224168, 5050914833107
- Also known as
- LevelOne Fast Ethernet Fiber PCIe Network Card, 1 x SC Multi-Mode Fiber
Specifications
39 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber optic connector | SC |
| Fiber ports quantity | 2 |
| PCI version | 2.1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 200 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Fiber ethernet cabling technology | 100BASE-FX |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Maximum operating distance | 20000 m |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Laptop |
| Product colour | Aluminium |
| LED indicators | Activity, Link |
| Certification | FCC Class B, CE |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 68 mm |
| Height | 17 mm |
| Weight | 58 g |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 62 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
