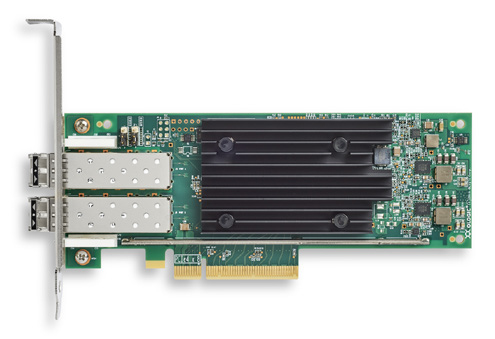

QLogic QLE2872
Model QLogic QLE2872Part no. 4XC7A96744EAN 889488748082
14 specifications
- Speed64000 Mbit/s
- ConnectivityWired
- ColourBlack, Green, Stainless steel
- InternalYes
- Operating temperature (T-T)0 - 55 °C
Overview
- Speed
- 64000 Mbit/s
- Connectivity
- Wired
- Colour
- Black, Green, Stainless steel
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- Lenovo
- Category
- Network Card
- Model
- QLogic QLE2872
- Part number
- 4XC7A96744
- EAN / UPC
- 889488748082
- Also known as
- Lenovo QLogic QLE2872 Internal Fiber 64000 Mbit/s
Specifications
14 specifications in 4 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| PCI version | 4.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 64000 Mbit/s |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | Server |
| Product colour | Black, Green, Stainless steel |
| Certification | UL 60950-1 CSA C22.2 TUV EN60950-1 TUV IEC 60950-1 EN IEC 62368 2nd, 3rd Edition CB Certified FCC Rules, CFR Title 47, Part 15, Subpart Class A Industry Canada, ICES-003: Class A EN55032 EN55035 EN61000-3-2 EN61000-3-3 VCCI: Class A AS/NZS: Class A KC-RRA Class A BSMI CNS 13438 UKCA BS DoC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
